. 2017 Dec 12;5(1):17.
doi: 10.1007/s13755-017-0037-6. eCollection 2017 Dec.

Beamforming for hyperthermia treatment by training a weighted network of an ultrasonic array

Feng-Cong Li  1   2 , Yi-Nan Zhao  3 , Peng-Cheng Gong  1 , Li Feng  1 , Xiang-Kui Wan  2 , Yan Li  4
Affiliations

Beamforming for hyperthermia treatment by training a weighted network of an ultrasonic array

Feng-Cong Li et al. Health Inf Sci Syst. .

Abstract

We propose a beamforming algorithm based on waveform diversity for hyperthermia treatment of breast cancer using an ultrasonic array. The introduced array has a structure with a network connecting the feeding nodes and the array elements, and the objective of the algorithm is to train the weight matrix of the network to minimize the difference between the generated beam pattern and the ideal one. The training procedure of the algorithm, which is inspired by the idea of machine learning, comprises three parts: forward calculation, comparison, and backward calculation. The forward calculation maps the weight matrix to the beam pattern, and in the comparison step, the generated beam pattern is modified based on the error, and finally, the backward calculation maps the modified beam pattern to a refined weight matrix which performs better than the original one. An optimal weight matrix is obtained by iterative training. The effectiveness of the algorithm is demonstrated by using numerical simulations.

Keywords: Breast cancer; Hyperthermia treatment; MIMO Beamforming; Regression.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1

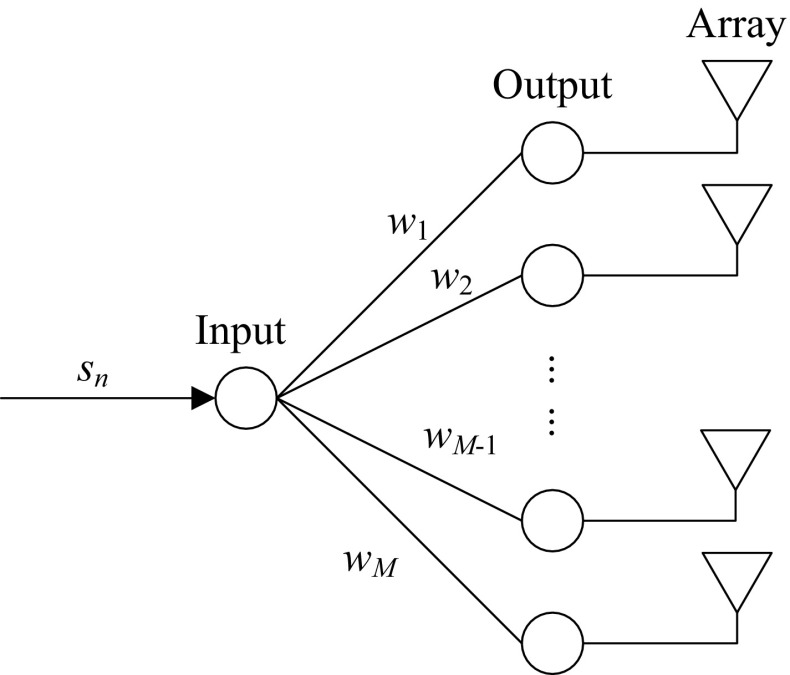

The structure of the phased array
Fig. 2
Fig. 2

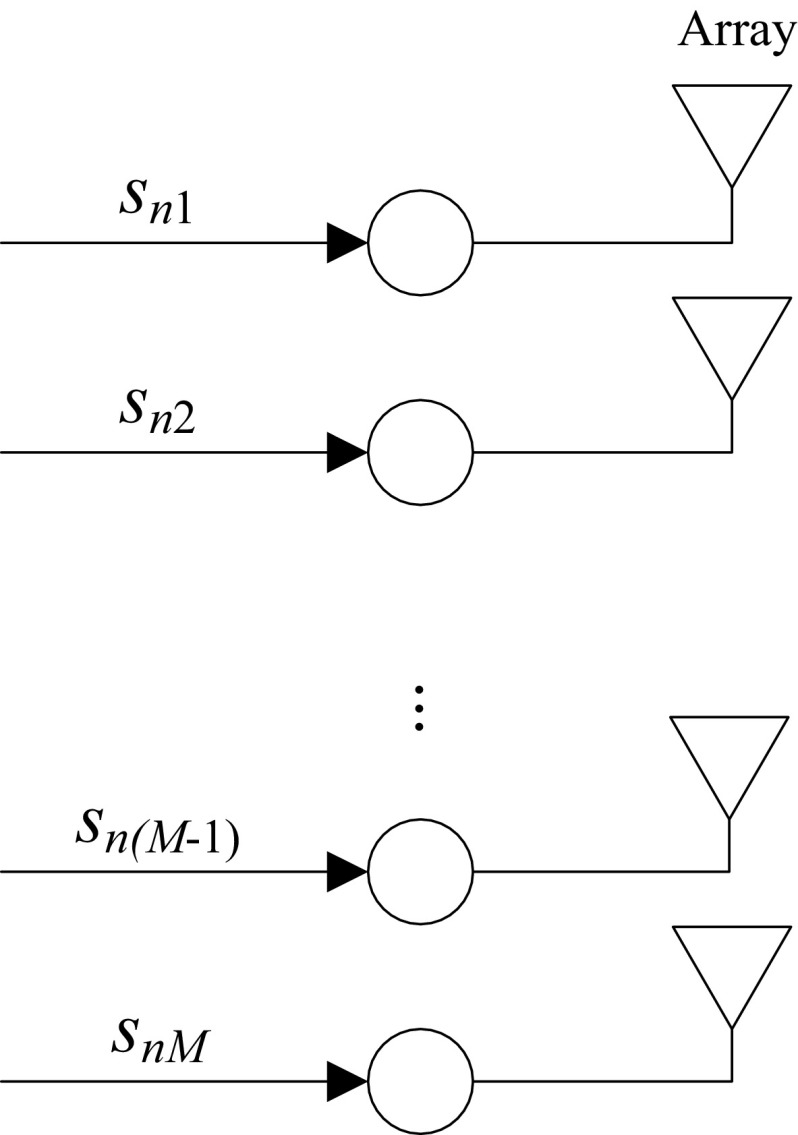

The structure of a MIMO array
Fig. 3
Fig. 3

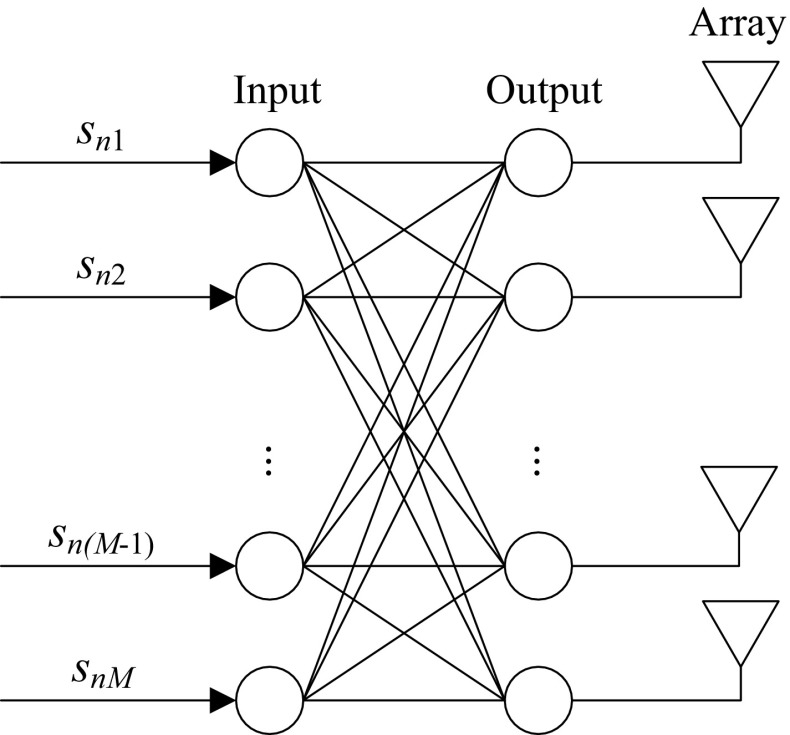

The adopted MIMO array network
Fig. 4
Fig. 4
The block diagram of the focusing system
Fig. 5
Fig. 5
The iteration procedure
Fig. 6
Fig. 6
Breast, array, and beam pattern samples
Fig. 7
Fig. 7
Normalized beam pattern generated by IANTA beamformer
Fig. 8
Fig. 8
Normalized beam pattern generated by DAS beamformer
Fig. 9
Fig. 9
Normalized convergent curve of IANTA
See this image and copyright information in PMC

References

    1. Nguyen PT, Abbosh AM, Crozier S. 3-D focused microwave hyperthermia for breast cancer treatment with experimental validation. IEEE Trans Antennas Propag. 2017;65(7):3489–3500. doi: 10.1109/TAP.2017.2700164. - DOI
    1. Nguyen PT, Abbosh A, Crozier S. Three-dimensional microwave hyperthermia for breast cancer treatment in a realistic environment using particle swarm optimization. IEEE Trans Biomed Eng. 2017;64(6):1335–1344. doi: 10.1109/TBME.2016.2602233. - DOI - PubMed
    1. Von Aulock WH. Properties of phased arrays. Proc IRE. 1960;48(10):1715–1727. doi: 10.1109/JRPROC.1960.287523. - DOI
    1. Liu J, Foiret J, Le Baron O, Ferrara KW. Development of a spherically focused phased array transducer for ultrasonic image-guided hyperthermia. Phys Med Biol. 2016;61(14):5275. doi: 10.1088/0031-9155/61/14/5275. - DOI - PMC - PubMed
    1. Song D, Wang W, Xu Z, Xiong Z, Kirubarajan T. Focused energy delivery with protection for precision electronic warfare. IEEE Trans Aerosp Electron Syst. 2016;52(6):3053–3064. doi: 10.1109/TAES.2016.150713. - DOI
