. 2017 Dec 15:203:139-151.
doi: 10.1016/j.rse.2017.03.039.

Assessing the fitness-for-purpose of satellite multi-mission ocean color climate data records: A protocol applied to OC-CCI chlorophyll- a data

Affiliations

Assessing the fitness-for-purpose of satellite multi-mission ocean color climate data records: A protocol applied to OC-CCI chlorophyll- a data

F Mélin et al. Remote Sens Environ. .

Abstract

In this work, trend estimates are used as indicators to compare the multi-annual variability of different satellite chlorophyll-a (Chla) data and to assess the fitness-for-purpose of multi-mission Chla products as climate data records (CDR). Under the assumption that single-mission products are free from spurious temporal artifacts and can be used as benchmark time series, multi-mission CDRs should reproduce the main trend patterns observed by single-mission series when computed over their respective periods. This study introduces and applies quantitative metrics to compare trend distributions from different data records. First, contingency matrices compare the trend diagnostics associated with two satellite products when expressed in binary categories such as existence, significance and signs of trends. Contingency matrices can be further summarized by metrics such as Cohen's κ index that rates the overall agreement between the two distributions of diagnostics. A more quantitative measure of the discrepancies between trends is provided by the distributions of differences between trend slopes. Thirdly, maps of the level of significance P of a t-test quantifying the degree to which two trend estimates differ provide a statistical, spatially-resolved, evaluation. The proposed methodology is applied to the multi-mission Ocean Colour-Climate Change Initiative (OC-CCI) Chla data. The agreement between trend distributions associated with OC-CCI data and single-mission products usually appears as good as when single-mission products are compared. As the period of analysis is extended beyond 2012 to 2015, the level of agreement tends to be degraded, which might be at least partly due to the aging of the MODIS sensor on-board Aqua. On the other hand, the trends displayed by the OC-CCI series over the short period 2012-2015 are very consistent with those observed with VIIRS. These results overall suggest that the OC-CCI Chla data can be used for multi-annual time series analysis (including trend detection), but with some caution required if recent years are included, particularly in the central tropical Pacific. The study also recalls the challenges associated with creating a multi-mission ocean color data record suitable for climate research.

Keywords: CCI; Chlorophyll-a; Climate; Ocean color.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1
Time series of globally-averaged relative differences between Chla single-mission products. The letters S, M, A, T, and V are associated with SeaWiFS, MERIS, MODIS-A, MODIS-T, and VIIRS, respectively. The dotted vertical green lines show the period when the MERIS OCL was deactivated (see text). (For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article.)
Fig. 2
Fig. 2

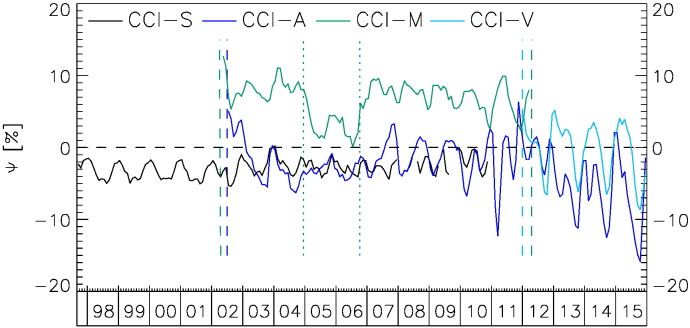

Time series of globally-averaged relative differences between OC-CCI Chla and single-mission products (with letters as in Fig. 1). The dashed vertical green lines show the start and end date of the MERIS data stream, the dashed blue and light-blue lines show the start of the MODIS-A and VIIRS data, respectively. The dotted vertical green lines show the period when the MERIS OCL was deactivated (see text). (For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article.)
Fig. 3
Fig. 3

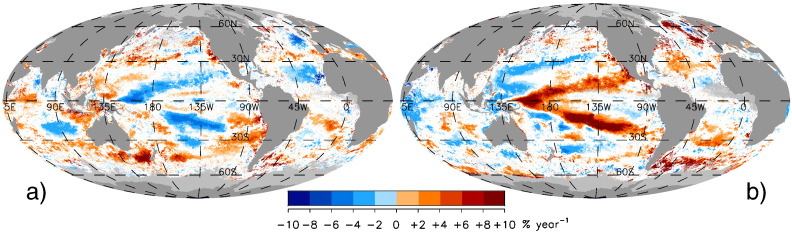

Trends for a) SeaWiFS Chla over the period Jan. 1998–Dec. 2007, and b) MODIS-A Chla over the period Aug. 2002–Jul. 2012. Only significant trends (p < 0.05) are represented. Grey shows land, while light-grey is associated with areas where the series are insufficient for analysis.
Fig. 4
Fig. 4
Trends for a) MERIS Chla, and b) MODIS-A Chla, over the period Aug. 2002–Jul. 2011. Only significant trends (p < 0.05) are represented. Grey shows land, while light-grey is associated with areas where the series are insufficient for analysis.
Fig. 5
Fig. 5
Statistics of differences between trend slopes obtained over a common period, displayed as box-and-whiskers plots, with boxes indicating the 25th and 75th percentiles, the inner bar associated with the median, and the whiskers being the 10th and 90th percentiles of the distributions. The acronyms S, M, A, T, and CCI are associated with SeaWiFS, MERIS, MODIS-A, MODIS-T, and OC-CCI, respectively.
Fig. 6
Fig. 6
Level of significance P of the t-test comparing the slopes of linear regression obtained for MERIS and MODIS-A over Aug. 2002 to Jul. 2011. Grey shows land, while light-grey is associated with areas where the series are insufficient for analysis.
Fig. 7
Fig. 7
a) Trends for OC-CCI Chla over the period Jan. 1998–Dec. 2007 (only significant trends, p < 0.05, represented), and b) level of significance P of the t-test comparing the slopes of linear regression obtained for SeaWiFS and OC-CCI over that period. Grey shows land, while light-grey is associated with areas where the series are insufficient for analysis.
Fig. 8
Fig. 8

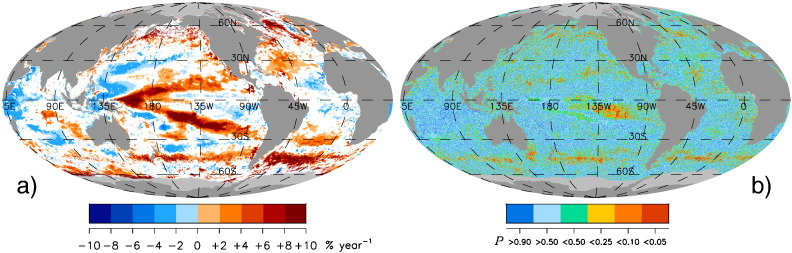

a) Trends for OC-CCI Chla over the period Aug. 2002–Jul. 2011 (only significant trends, p < 0.05, represented), and b) level of significance P of the t-test comparing the slopes of linear regression obtained for MERIS and OC-CCI over that period. Grey shows land, while light-grey is associated with areas where the series are insufficient for analysis.
Fig. 9
Fig. 9
a) Trends for OC-CCI Chla over the period Aug. 2002–Jul. 2012 (only significant trends, p < 0.05, represented), and b) level of significance P of the t-test comparing the slopes of linear regression obtained for MODIS-A and OC-CCI over that period. Grey shows land, while light-grey is associated with areas where the series are insufficient for analysis.
Fig. 10
Fig. 10
Trends for a) MODIS-T Chla, and b) OC-CCI Chla, over the period Mar. 2002–Feb. 2015. Only significant trends (p < 0.05) are represented. Grey shows land, while light-grey is associated with areas where the series are insufficient for analysis.
Fig. 11
Fig. 11
Trends for a) VIIRS Chla, and b) OC-CCI Chla, over the period Jan. 2012–Dec. 2015. Only significant trends (p < 0.05) are represented. Grey shows land, while light-grey is associated with areas where the series are insufficient for analysis.
Fig. 12
Fig. 12
Trends for OC-CCI Chla over the period Oct. 1997–Sep. 2015. Only significant trends (p < 0.05) are represented. Grey shows land, while light-grey is associated with areas where the series are insufficient for analysis.

References

    1. Andrade J.M., Estévez-pérez M.G. Statistical comparison of the slopes of two regression lines: a tutorial. Anal. Chim. Acta. 2014;838:1–12. - PubMed
    1. Bates J.J., Privette J.L. A maturity model for assessing the completeness of climate data records. EOS Trans. Am. Geophys. Union. 2012;93:441.
    1. Beaulieu C., Henson S.A., Sarmiento J.L., Dunne J.P., Doney S.C., Rykaczewski R.R., Bopp L. Comment on factors challenging our ability to detect long-term trends in ocean chlorophyll. Biogeosciences. 2013;9:C8200–C8209.
    1. Bélanger S., Babin M., Tremblay J.-E. Increasing cloudiness in Arctic damps the increase in phytoplankton primary production due to sea ice receding. Biogeosciences. 2013;10:4087–4101.
    1. Bell G.D., Halpert M., L’Heureux M. State of the Climate 2015. Vol. 97. Bulletin of the American Meteorological Association; 2016. ENSO and the tropical Pacific; pp. S93–S98.
