Development of PD-1 and PD-L1 inhibitors as a form of cancer immunotherapy: a comprehensive review of registration trials and future considerations

Abstract

Early preclinical evidence provided the rationale for programmed cell death 1 (PD-1) and programmed death ligand 1 (PD-L1) blockade as a potential form of cancer immunotherapy given that activation of the PD-1/PD-L1 axis putatively served as a mechanism for tumor evasion of host tumor antigen-specific T-cell immunity. Early-phase studies investigating several humanized monoclonal IgG4 antibodies targeting PD-1 and PD-L1 in advanced solid tumors paved way for the development of the first PD-1 inhibitors, nivolumab and pembrolizumab, approved by the Food and Drug Administration (FDA) in 2014. The number of FDA-approved agents of this class is rapidly enlarging with indications for treatment spanning across a spectrum of malignancies. The purpose of this review is to highlight the clinical development of PD-1 and PD-L1 inhibitors in cancer therapy to date. In particular, we focus on detailing the registration trials that have led to FDA-approved indications of anti-PD-1 and anti-PD-L1 therapies in cancer. As the number of PD-1/PD-L1 inhibitors continues to grow, predictive biomarkers, mechanisms of resistance, hyperprogressors, treatment duration and treatment beyond progression, immune-related toxicities, and clinical trial design are key concepts in need of further consideration to optimize the anticancer potential of this class of immunotherapy.

Keywords: Biomarkers; Clinical trials; Hyperprogressors; Immune checkpoint; Immune-related toxicity; Microbiome; PD-1 inhibitor; PD-L1 inhibitor; Treatment beyond progression.

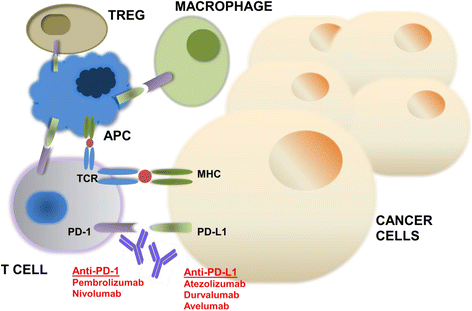

Fig. 1

Mechanism of action of PD-1 and PD-L1 inhibitors. The programmed cell death 1 (PD-1) receptor is expressed on activated T cells, B cells, macrophages, regulatory T cells (Tregs), and natural killer (NK) cells. Binding of PD-1 to its B7 family of ligands, programmed death ligand 1 (PD-L1 or B7-H1) or PD-L2 (B7-DC) results in suppression of proliferation and immune response of T cells. Activation of PD-1/PD-L1 signaling serves as a principal mechanism by which tumors evade antigen-specific T-cell immunologic responses. Antibody blockade of PD-1 or PD-L1 reverses this process and enhances antitumor immune activity. TCR, T-cell receptor; MHC, major histocompatibility complex; APC, antigen-presenting cell

Fig. 2

Timeline of FDA approvals for PD-1 and PD-L1 inhibitors in cancer therapy. The Food and Drug Administration approvals of programmed cell death 1 (PD-1) and programmed death ligand 1 (PD-L1) inhibitors detailed by agent, date of approval, and tumor type. NSCLC, non-small cell lung cancer; HNSCC, head and neck squamous cell carcinoma; MSI-H, microsatellite instability-high; RCC, renal cell carcinoma; HCC, hepatocellular carcinoma; UC, urothelial carcinoma; MCC, Merkel cell carcinoma
