. 2017 Dec 1;35(2):35-41.

Semi-automatic forensic approach using mandibular midline lingual structures as fingerprint: a pilot study

E Shaheen  1 , B Mowafy  2 , C Politis  1 , R Jacobs  1
Affiliations

Semi-automatic forensic approach using mandibular midline lingual structures as fingerprint: a pilot study

E Shaheen et al. J Forensic Odontostomatol. .

Abstract

Background: Previous research proposed the use of the mandibular midline neurovascular canal structures as a forensic finger print. In their observer study, an average correct identification of 95% was reached which triggered this study.

Aim: To present a semi-automatic computer recognition approach to replace the observers and to validate the accuracy of this newly proposed method.

Materials and methods: Imaging data from Computer Tomography (CT) and Cone Beam Computer Tomography (CBCT) of mandibles scanned at two different moments were collected to simulate an AM and PM situation where the first scan presented AM and the second scan was used to simulate PM. Ten cases with 20 scans were used to build a classifier which relies on voxel based matching and results with classification into one of two groups: "Unmatched" and "Matched". This protocol was then tested using five other scans out of the database. Unpaired t-testing was applied and accuracy of the computerized approach was determined.

Results: A significant difference was found between the "Unmatched" and "Matched" classes with means of 0.41 and 0.86 respectively. Furthermore, the testing phase showed an accuracy of 100%.

Conclusion: The validation of this method pushes this protocol further to a fully automatic identification procedure for victim identification based on the mandibular midline canals structures only in cases with available AM and PM CBCT/CT data.

Keywords: finger print; forensic identification; forensic odontology victim identification.; mandibular lingual canals.

PubMed Disclaimer

Figures

Figure 1
Figure 1
Example of ROI identification. (A) The whole mandible with the ROI surrounding. (B) Frontal view of the ROI after extraction. (C) Lateral view of the ROI after extraction. (D) Midsagittal cut slice of the ROI showing the midline lingual structures.
Figure 2
Figure 2
Example of classification (step 3 of matching protocol) with every ROI the midsagittal cut slice is shown. (A) ROI of AM case shown in Figure 1. (B) ROI of corresponding PM case. (C) PM (B) to AM (A) registration showing perfect matching (metric value = 1). (D) ROI of another PM that does not match. (E) PM (D) to AM (A) registration showing no matching (metric value = 0.4).
Figure 3
Figure 3

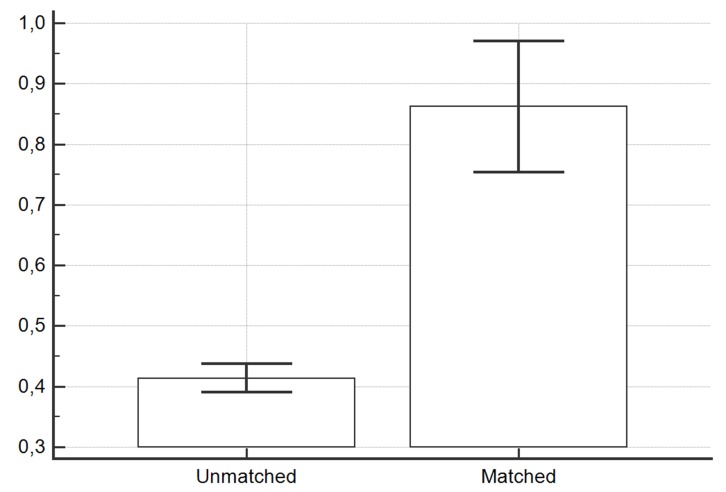

Bar plot of the two classes: “Unmatched” and “Matched”.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Pillai TJ, Devi TSDC. Studies on human mandibles. IOSR J Dent Med Sci. 2014;13(1):8–15. 10.9790/0853-13120815 - DOI
    1. Sutton RN. The practical significance of mandibular accessory foramina. Aust Dent J. 1974;19(3):167–73. - PubMed
    1. Murlimanju BV, Prakash KG, Samiullah D, Prabhu LV, Pai MM, Vadgaonkar R, et al. Accessory neurovascular foramina on the lingual surface of mandible: incidence, topography, and clinical implications. Indian J Dent Res. Indian J Dent Res. 2012;23(3):433. - PubMed
    1. Vandewalle G, Liang X, Jacobs R, Lambrichts I. Macroanatomic and radiologic characteristics of the superior genial spinal foramen and its bony canal. Int J Oral Maxillofac Implants. 2006;21:581–6. - PubMed
    1. Liang X, Jacobs R, Lambrichts I, Vandewalle G, Van Oostveldt D, Schepers E, et al. Microanatomical and histological assessment of the content of superior genial spinal foramen and its bony canal. Dentomaxillofac Radiol. 2005;34(6):362–8. 10.1259/dmfr/75895125 - DOI - PubMed
