. 2018 May;91(1085):20170654.
doi: 10.1259/bjr.20170654. Epub 2018 Mar 6.

Target volume motion during anal cancer image guided radiotherapy using cone-beam computed tomography

Corrinne J Brooks  1 , Laurence Bernier  2 , Vibeke N Hansen  1 , Diana M Tait  2
Affiliations

Target volume motion during anal cancer image guided radiotherapy using cone-beam computed tomography

Corrinne J Brooks et al. Br J Radiol. 2018 May.

Abstract

Objective: Literature regarding image-guidance and interfractional motion of the anal canal (AC) during anal cancer radiotherapy is sparse. This study investigates interfractional AC motion during anal cancer radiotherapy.

Methods: Bone matched cone beam CT (CBCT) images were acquired for 20 patients receiving anal cancer radiotherapy allowing population systematic and random error calculations. 12 were selected to investigate interfractional AC motion. Primary anal gross tumour volume and clinical target volume (CTVa) were contoured on each CBCT. CBCT CTVa volumes were compared to planning CTVa. CBCT CTVa volumes were combined into a CBCT-CTVa envelope for each patient. Maximum distortion between each orthogonal border of the planning CTVa and CBCT-CTVa envelope was measured. Frequency, volume and location of CBCT-CTVa envelope beyond the planning target volume (PTVa) was analysed.

Results: Population systematic and random errors were 1 and 3 mm respectively. 112 CBCTs were analysed in the interfractional motion study. CTVa varied between each imaging session particularly T location patients of anorectal origin. CTVa border expansions ≥ 1 cm were seen inferiorly, anteriorly, posteriorly and left direction. The CBCT-CTVa envelope fell beyond the PTVa ≥ 50% imaging sessions (n = 5). Of these CBCT CTVa distortions beyond PTVa, 44% and 32% were in the upper and lower thirds of PTVa respectively.

Conclusion: The AC is susceptible to volume changes and shape deformations. Care must be taken when calculating or considering reducing the PTV margin to the anus. Advances in knowledge: Within a limited field of research, this study provides further knowledge of how the AC deforms during anal cancer radiotherapy.

PubMed Disclaimer

Figures

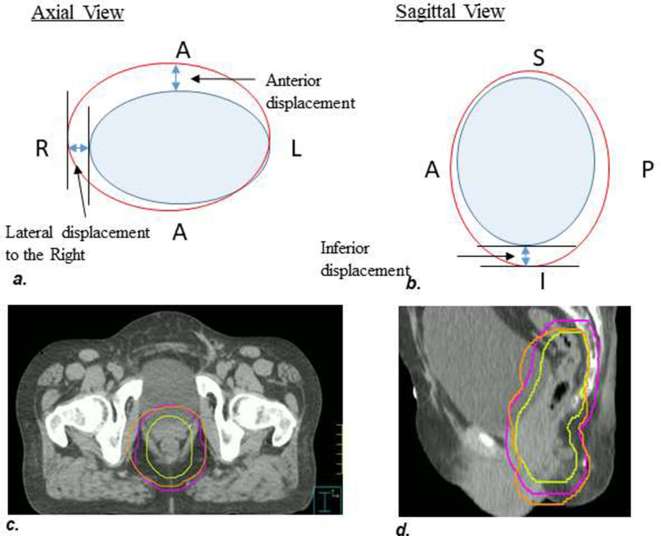

Figure 1.
Figure 1.
Diagram (a, b) describe the maximum distortion between the borders of the CBCT CTVa envelope (red contour) and the planning CTVa (blue contour). The corresponding CT contours are shown in (c, d). Planning CTVa (light green contour), CBCT CTVa envelope (orange contour) and planning PTV (pink contour) are presented. CBCT, cone beam CT; CTV, clinical target volume; PTV, planning target volume.
Figure 2.
Figure 2.
Observed change in CBCT CTVa volume compared to the planning CTVa for each patient for each fraction. Difference is shown as a percentage. CBCT, cone beam CT; CTV, clinical target volume.
Figure 3.
Figure 3.
Images (a, b) show the planning CT with the planning CTVa (red) and CBCT CTVa (blue). Images (c,d) show the corresponding CBCT for the derived CBCT CTVa (blue). N.B These images were matched on bone. CBCT, cone beam CT; CTV, clinical target volume.
Figure 4.
Figure 4.
Frequency (%) of CBCT CTVa outside of planning PTVa in one or more directions for individual cases. CBCT, cone beam CT; CTV, clinical target volume; PTV, clinical planning target volume.
