. 2018 Feb;26(1):16-21.
doi: 10.1177/1742271X18755080. Epub 2018 Feb 7.

Sonographic parameters for diagnosing fetal head engagement during labour

Yaw A Wiafe  1   2 , Bill Whitehead  1 , Heather Venables  1 , Alexander T Odoi  3
Affiliations

Sonographic parameters for diagnosing fetal head engagement during labour

Yaw A Wiafe et al. Ultrasound. 2018 Feb.

Abstract

The purpose of this study was to investigate the diagnostic performance of the head-perineum distance, angle of progression, and the head-symphysis distance as intrapartum ultrasound parameters in the determination of an engaged fetal head. Two hundred and one women in labour underwent both ultrasound and digital vaginal examination in the estimation of fetal head station. The transperineal ultrasound measured head-perineum distance, angle of progression, and head-symphysis distance for values correlating with digital vaginal examination head station. Using station 0 as the minimum level of head engagement, correlating cut-off values for head-perineum distance, angle of progression, and head-symphysis distance were obtained. Receiver operating characteristics were used in determining the diagnostic performance of these cut-off values for the detection of fetal head engagement. With head-perineum distance of 3.6 cm the sensitivity and specificity of sonographic determination of engaged fetal head were 78.7 and 72.3%, respectively. A head-symphysis distance of 2.8 cm also had sensitivity and specificity of 74.5 and 70.8%, respectively, in determining engagement, whilst an angle of progression of 101° was consistent with engagement by digital vaginal examination with 68.1% sensitivity and 68.2% specificity. Ultrasound shows high diagnostic performance in determining engaged fetal head at a head-perineum distance of ≤3.6 cm, head-symphysis distance of ≤2.8 cm, and angle of progression of ≥ 101°.

Keywords: Angle of progression; engaged fetal head; head–perineum distance; head–symphysis distance.

PubMed Disclaimer

Figures

Figure 1.

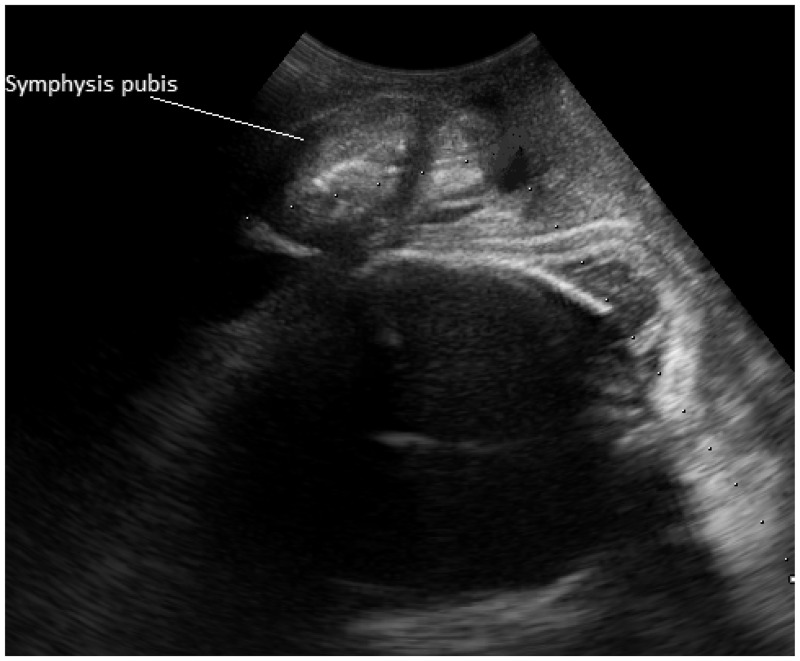

Figure 1.
The symphysis pubis in long axis.
Figure 2.

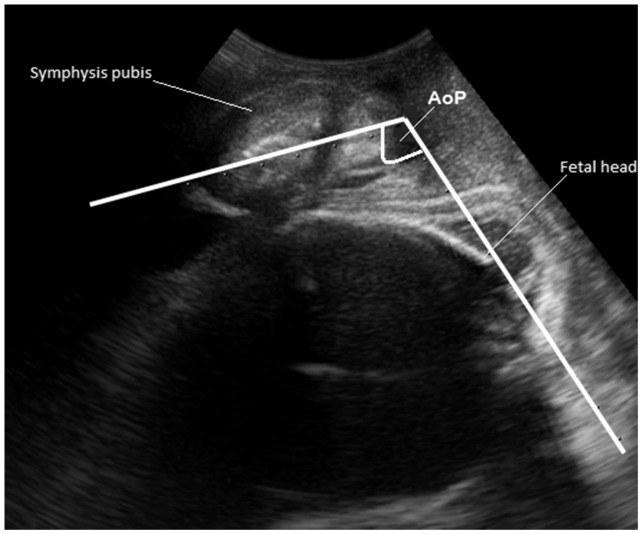

Figure 2.
The AoP measurement. AoP: angle of progression.
Figure 3.

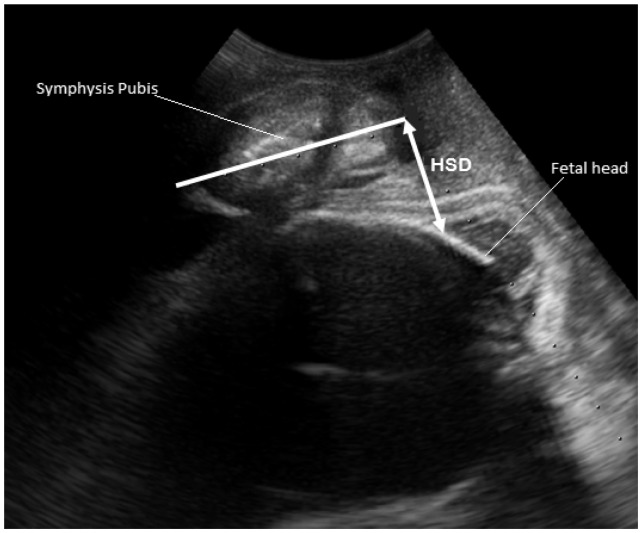

Figure 3.
The HSD measurement. HSD: head-symphysis distance.
Figure 4.
Figure 4.
The HPD measurement. HPD: head–perineum distance.
Figure 5.
Figure 5.
ROC curve showing the diagnostic performance of HPD on engagement. AUC = 0.7946. AUC: area under ROC curve; HPD: head–perineum distance; ROC: receiver operating characteristic.
Figure 6.

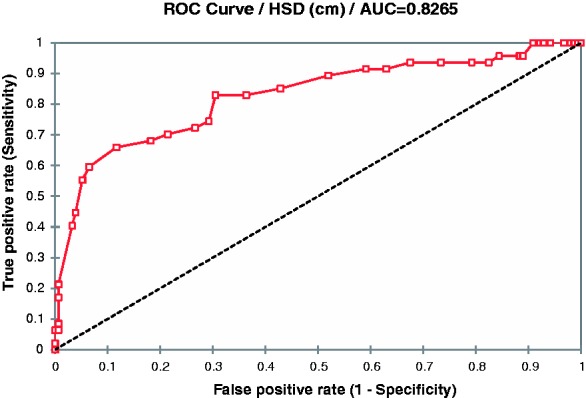

Figure 6.
ROC curve showing the diagnostic performance of HSD on engagement. AUC = 0.8265. AUC: area under ROC curve; HSD: head–symphysis distance; ROC: receiver operating characteristic.
Figure 7.
Figure 7.
ROC Curve showing the diagnostic performance of AoP on engagement. AUC = 0.7729. AoP: angle of progression; AUC: area under ROC curve; ROC: receiver operating characteristic.
See this image and copyright information in PMC

References

    1. Murphy K, Shah L, Cohen WR. Labor and delivery in nulliparous women who present with an unengaged fetal head. J Perinatol 1998; 18: 122–125. - PubMed
    1. Friedman EA, Sachtleben MR. Station of the fetal presenting part: III. Interrelationship with cervical dilatation. Am J Obstet Gynecol 1965; 93: 537–542. - PubMed
    1. Segel SY, Carreño CA, Weiner SJ, et al. Relationship between fetal station and successful vaginal delivery in nulliparous women. Am J Perinatol 2012; 29: 723–730. - PMC - PubMed
    1. Debby A, Rotmensch S, Girtler O, et al. Clinical significance of the floating fetal head in nulliparous women in labor. J Reprod Med 2003; 48: 37–40. - PubMed
    1. Hamilton EF, Simoneau G, Ciampi A, et al. Descent of the fetal head (station) during the first stage of labor. Am J Obstet Gynecol 2016; 214: 360-e1–360-e1. - PubMed
