. 2018 Feb 23;19(1):61.
doi: 10.1186/s12859-018-2083-8.

How large B-factors can be in protein crystal structures

Oliviero Carugo  1   2
Affiliations

How large B-factors can be in protein crystal structures

Oliviero Carugo. BMC Bioinformatics. .

Abstract

Background: Protein crystal structures are potentially over-interpreted since they are routinely refined without any restraint on the upper limit of atomic B-factors. Consequently, some of their atoms, undetected in the electron density maps, are allowed to reach extremely large B-factors, even above 100 square Angstroms, and their final positions are purely speculative and not based on any experimental evidence.

Results: A strategy to define B-factors upper limits is described here, based on the analysis of protein crystal structures deposited in the Protein Data Bank prior 2008, when the tendency to allow B-factor to arbitrary inflate was limited. This B-factor upper limit (B_max) is determined by extrapolating the relationship between crystal structure average B-factor and percentage of crystal volume occupied by solvent (pcVol) to pcVol =100%, when, ab absurdo, the crystal contains only liquid solvent, the structure of which is, by definition, undetectable in electron density maps.

Conclusions: It is thus possible to highlight structures with average B-factors larger than B_max, which should be considered with caution by the users of the information deposited in the Protein Data Bank, in order to avoid scientifically deleterious over-interpretations.

Keywords: Atomic displacement parameter; B-factor; Crystal structure; Matthews coefficient; Protein structure validation.

PubMed Disclaimer

Conflict of interest statement

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The author declares that he has no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Figures

Fig. 1
Fig. 1

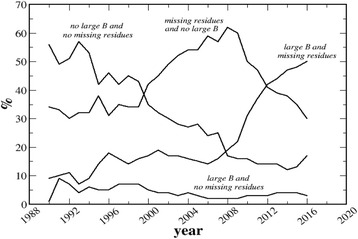

PDB entries with missing residues and large B-factors. Frequency with which different types of files have been deposited into the PDB during the last decades
Fig. 2
Fig. 2
B-factors and pcVol. Relationship between B-factors and pcVol (independently of crystallographic resolution)
Fig. 3
Fig. 3
B-factors, resolution and pcVol. Dependence of B-factors on resolution and dependence of resolution on pcVol indicate that the relationship between B-factors and pcVol (see Fig. 2) must be examined in datasets of structures that have similar resolution
Fig. 4
Fig. 4

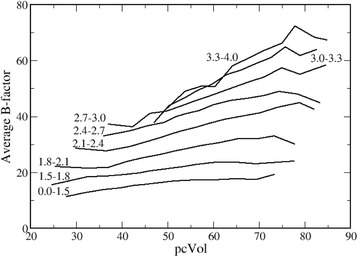

B-factors-pcVol versus resolution. Relationship between B-factors and pcVol at various resolution ranges, indicated close to each curve
Fig. 5
Fig. 5
B-max examples. B_max values (Å2), at various resolution ranges, for the side chain atoms of lysine, serine, and methionine
