FDG-PET/CT(A) imaging in large vessel vasculitis and polymyalgia rheumatica: joint procedural recommendation of the EANM, SNMMI, and the PET Interest Group (PIG), and endorsed by the ASNC

Abstract

Large vessel vasculitis (LVV) is defined as a disease mainly affecting the large arteries, with two major variants, Takayasu arteritis (TA) and giant cell arteritis (GCA). GCA often coexists with polymyalgia rheumatica (PMR) in the same patient, since both belong to the same disease spectrum. FDG-PET/CT is a functional imaging technique which is an established tool in oncology, and has also demonstrated a role in the field of inflammatory diseases. Functional FDG-PET combined with anatomical CT angiography, FDG-PET/CT(A), may be of synergistic value for optimal diagnosis, monitoring of disease activity, and evaluating damage progression in LVV. There are currently no guidelines regarding PET imaging acquisition for LVV and PMR, even though standardization is of the utmost importance in order to facilitate clinical studies and for daily clinical practice. This work constitutes a joint procedural recommendation on FDG-PET/CT(A) imaging in large vessel vasculitis (LVV) and PMR from the Cardiovascular and Inflammation & Infection Committees of the European Association of Nuclear Medicine (EANM), the Cardiovascular Council of the Society of Nuclear Medicine and Molecular Imaging (SNMMI), and the PET Interest Group (PIG), and endorsed by the American Society of Nuclear Cardiology (ASNC). The aim of this joint paper is to provide recommendations and statements, based on the available evidence in the literature and consensus of experts in the field, for patient preparation, and FDG-PET/CT(A) acquisition and interpretation for the diagnosis and follow-up of patients with suspected or diagnosed LVV and/or PMR. This position paper aims to set an internationally accepted standard for FDG-PET/CT(A) imaging and reporting of LVV and PMR.

Keywords: FDG-PET/CT(A); Imaging procedure; Large vessel vasculitis; Polymyalgia rheumatica.

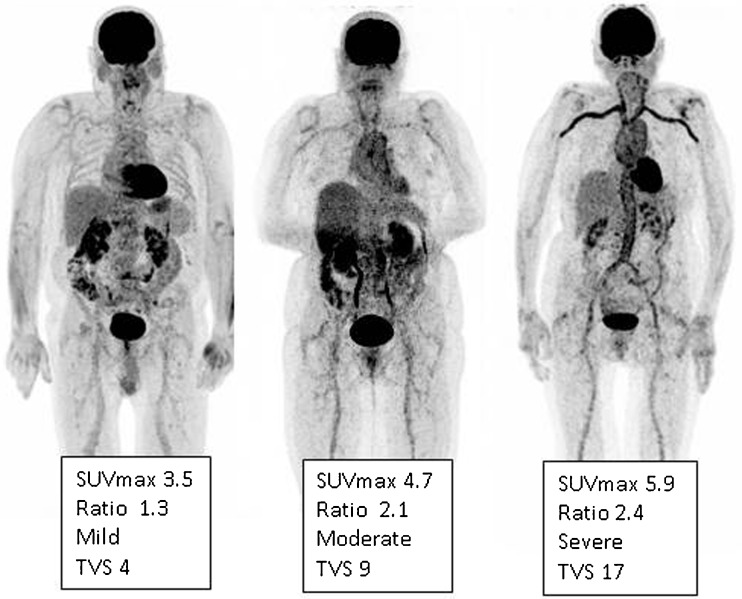

Fig. 1

FDG-PET. Low (grade 1), intermediate (grade 2), and high (grade 3) LVV FDG uptake patterns including SUV_max values of the thoracic aorta in patients with GCA. Ratio is defined as average SUV_max of the thoracic aorta divided by the liver region. The total vascular score (TVS) is the highest for the right-positioned patient

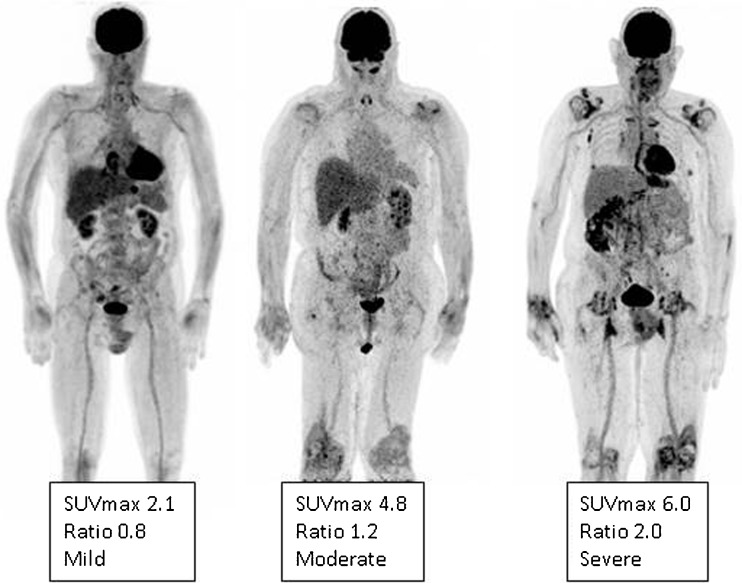

Fig. 2

FDG-PET. Low (grade 1), intermediate (grade 2), and high (grade 3) FDG uptake patterns of the large joint regions in PMR patients, including SUV_max of the shoulders. Ratio is defined as average SUV_max in the shoulders divided by the liver region. The total number and intensity of affected joints is the highest for the right-positioned patient

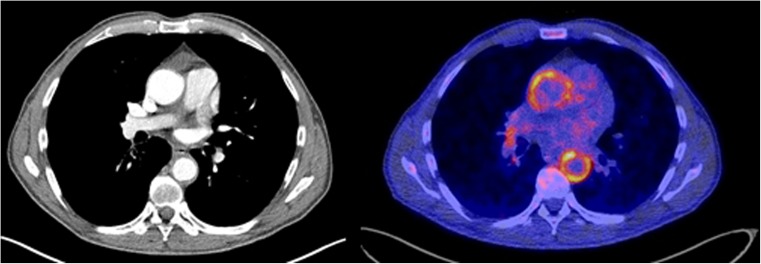

Fig. 3

FDG-PET/CTA. On the left, a transaxial view of a contrast chest CT in a 67-year-old man with GCA, with an enlarged diameter of the ascending aorta of 41 × 41 mm and moderately increased wall thickness of 3.1 mm, and severely increased wall thickness of 4.7 mm of the descending aorta (diameter of 30 × 31 mm). On the right, the fused transaxial images of the contrast chest CT and FDG-PET showing highly elevated FDG uptake (average SUV_max 5.5) in the ascending and descending aorta

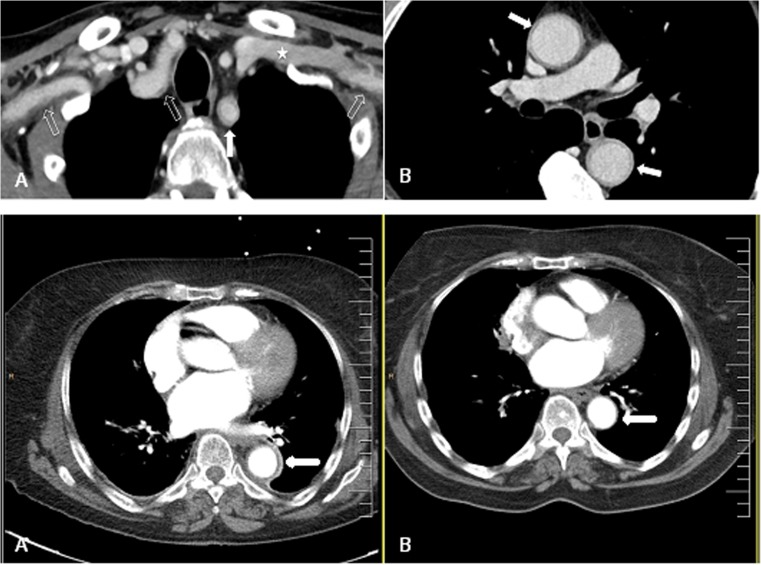

Fig. 4

CT angiography of the chest in two patients with GCA. Upper row CTA of the aorta and the supra-aortic arteries in a 64-year-old male patient with giant cell arteritis. Mural thickening and contrast enhancement of the aortic wall (arrows in B). Please note hypodense inner ring delineating luminal contrast-enhanced blood from contrast-enhancing thickened aortic wall. Mural inflammatory changes are present in both subclavian arteries as visualized in cross section (bold arrow in A) and in a longitudinal section (light arrows in A). Asterisk in A indicates the left subclavian vein. Lower row Axial view of a CT angiography of a 76-year-old woman with GCA showing severely increased wall thickness of 5.2 mm and contrast enhancement of the descending aorta (bold arrow) (A). Contrast CT of the same patient performed 4 years earlier, with no significant aortic wall thickening (B)
