. 2018 May 10;19(5):1424.
doi: 10.3390/ijms19051424.

Hierarchical ZIF-8 toward Immobilizing Burkholderia cepacia Lipase for Application in Biodiesel Preparation

Miaad Adnan  1   2 , Kai Li  3 , Jianhua Wang  4 , Li Xu  5 , Yunjun Yan  6
Affiliations

Hierarchical ZIF-8 toward Immobilizing Burkholderia cepacia Lipase for Application in Biodiesel Preparation

Miaad Adnan et al. Int J Mol Sci. .

Abstract

A hierarchical mesoporous zeolitic imidazolate framework (ZIF-8) was processed based on cetyltrimethylammonium bromide (CTAB) as a morphological regulating agent and amino acid (l-histidine) as assisting template agent. Burkholderia cepacia lipase (BCL) was successfully immobilized by ZIF-8 as the carrier via an adsorption method (BCL-ZIF-8). The immobilized lipase (BCL) showed utmost activity recovery up to 1279%, a 12-fold boost in its free counterpart. BCL-ZIF-8 was used as a biocatalyst in the transesterification reaction for the production of biodiesel with 93.4% yield. There was no significant lowering of conversion yield relative to original activity for BCL-ZIF-8 when continuously reused for eight cycles. This work provides a new outlook for biotechnological importance by immobilizing lipase on the hybrid catalyst (ZIF-8) and opens the door for its uses in the industrial field.

Keywords: Burkholderia cepacia lipase (BCL); adsorption method; biodiesel production; hexahedral ZIF-8; hierarchical ZIF-8; surfactant.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1

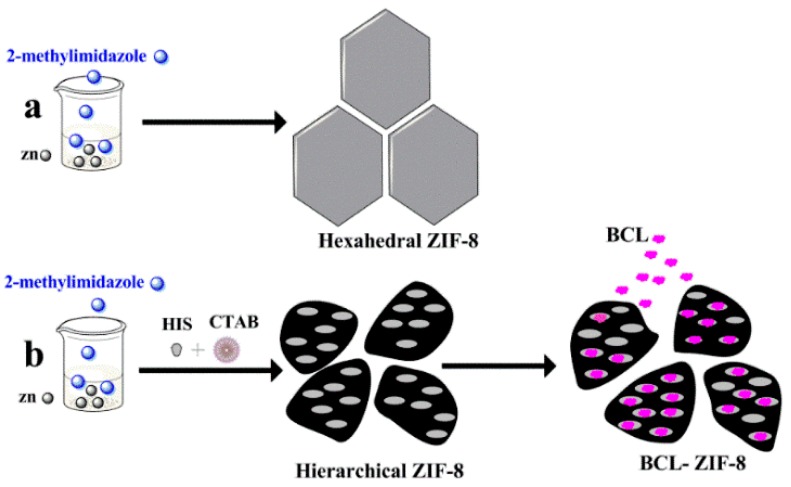

Schematic model to illustrate (a) synthesis hexahedral zeolitic imidazolate framework (ZIF-8); (b) synthesis hierarchical ZIF-8 and immobilization Burkholderia cepacia lipase (BCL)-ZIF-8.
Figure 2
Figure 2
TEM images: (a) hierarchical ZIF-8; (b) hexahedral ZIF-8; (c) BCL-ZIF-8.
Figure 3
Figure 3
SEM images: (a) hierarchical ZIF-8; (b) hexahedral ZIF-8; (c) BCL-ZIF-8.
Figure 4
Figure 4
(a) Fourier transform infrared (FT-IR) spectra of samples of hierarchical ZIF-8; BCL and BCL-ZIF-8; (b) powder X-ray diffraction (PXRD) patterns of samples of hierarchical ZIF-8 and BCL-ZIF-8.
Figure 5
Figure 5
Nitrogen gas adsorption/desorption isotherms and pore size distributions for (a) hexahedral ZIF-8 and (b) hierarchical ZIF-8.
Figure 6
Figure 6
Influence of various immobilization conditions on immobilization efficiency and activity recovery. (a) Amounts of lipase; (b) adsorption time; (c) reaction temperature; (d) pH value.
Figure 7
Figure 7

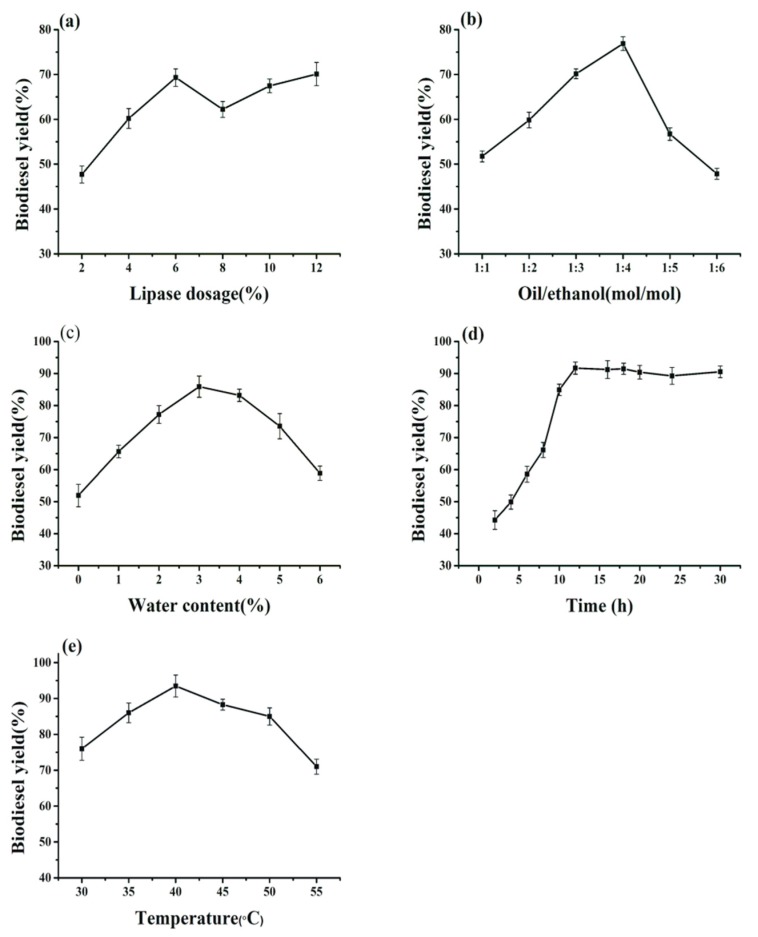

Influences of reaction parameters on biodiesel production catalyzed by BCL-ZIF-8: (a) lipase dosage; (b) molar ratio of oil to ethanol; (c) water content; (d) reaction time; (e) reaction temperature.
Figure 8
Figure 8
Reuse the catalyzed BCL-ZIF-8 for biodiesel production.
See this image and copyright information in PMC

References

    1. Guldhe A., Singh B., Mutanda T., Permaul K., Bux F. Advances in synthesis of biodiesel via enzyme catalysis: Novel and sustainable approaches. Renew. Sustain. Energy Rev. 2015;41:1447–1464. doi: 10.1016/j.rser.2014.09.035. - DOI
    1. Atabani A.E., Silitonga A.S., Badruddin I.A., Mahlia T.M.I., Masjuki H.H., Mekhilef S. A comprehensive review on biodiesel as an alternative energy resource and its characteristics. Renew. Sustain. Energy Rev. 2012;16:2070–2093. doi: 10.1016/j.rser.2012.01.003. - DOI
    1. Tan T., Lu J., Nie K., Deng L., Wang F. Biodiesel production with immobilized lipase: A review. Biotechnol. Adv. 2010;28:628–634. doi: 10.1016/j.biotechadv.2010.05.012. - DOI - PubMed
    1. Sankaran R., Show P.L., Chang J.-S. Biodiesel production using immobilized lipase: Feasibility and challenges. Biofuels Bioprod. Bio. 2016;10:896–916. doi: 10.1002/bbb.1719. - DOI
    1. Abdulla R., Ravindra P. Cross-Linked Lipase in Hybrid Matrix for Biodiesel Production from Crude Jatropha Curcas Oil. Springer; Boston, MA, USA: 2013. pp. 197–202.
