. 2018 May 1;10(5):e450-e457.
doi: 10.4317/jced.54751. eCollection 2018 May.

In vitro evaluation of shear bond strength of orthodontic stainless steel brackets using transillumination

Keith R Dobrin  1 , Prashanti Bollu  1 , Kishore Chaudhry  1 , Karthikeyan Subramani  1
Affiliations

In vitro evaluation of shear bond strength of orthodontic stainless steel brackets using transillumination

Keith R Dobrin et al. J Clin Exp Dent. .

Abstract

Background: The objective of this study was to compare the effect of transillumination techniques to conventional light curing on shear bond strength (SBS) and adhesive remnant index (ARI) of orthodontic stainless steel brackets.

Material and methods: 240 extracted human maxillary incisors, canines and premolars were randomly separated into four control and four experimental groups, based on tooth type. Labio-lingual thickness was measured. Control groups were light cured from buccal surface and experimental groups from lingual surface (transillumination) from four directions (mesial-distal, incisal-direct, direct, mesial-distal-incisal). SBS was measured using an Instron machine and ARI evaluated by microscopic inspection.

Results: Mean SBS on maxillary central incisors was lower when cured from lingual side in comparison with buccal side for three light cure directions, but direct cure direction showed nearly equal SBS. Statistical significance was observed for mesial-distal cure direction only. In contrast to central incisors, lateral incisors showed a higher mean SBS when treated from lingual side, for two cure directions (mesial-distal and incisal-direct) with statistical significance observed only for mesial-distal light cure direction. Mean SBS was lower when cured from lingual direction in comparison with buccal direction for all cure directions for canines and premolars. For canines statistical significance was observed for all directions, except incisal-direct; whereas for premolars statistical significance was observed for direct and mesial-distal-incisal directions only.

Conclusions: Transillumination is an effective and clinically acceptable light curing technique for bonding orthodontic stainless steel brackets to maxillary central and lateral incisors. For the other teeth groups (canines and premolars) tested, the mean SBS values, using transillumination light curing fell below the acceptable clinical SBS values, indicating that transillumination is not beneficial in light curing brackets on these teeth. Key words:Orthodontic stainless steel bracket, transillumination, shear bond strength.

PubMed Disclaimer

Conflict of interest statement

Conflict of interest statement:The authors have declared that no conflict of interest exist.

Figures

Figure 1
Figure 1

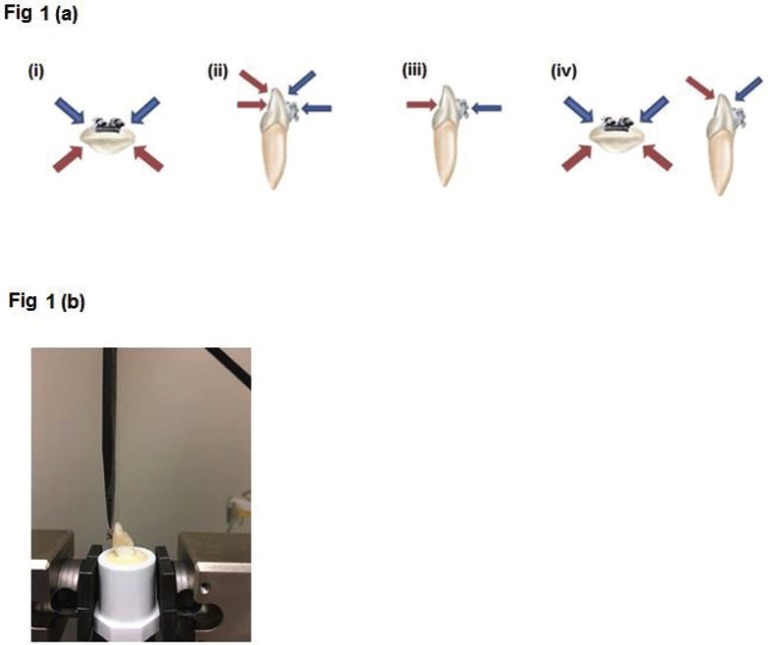

(a) Conventional (Buccal) and Transillumination light curing techniques; (i) mesial-distal, (ii) incisal/direct, (iii) direct, (iv) mesial-distal-incisal. (b) Maxillary central incisor mounted on PVC pipe and positioned in Instron machine. The bracket is bonded on the enamel surface parallel to shearing attachment.
Figure 2
Figure 2
Shear Bond Strength (SBS) according to Buccal-Lingual Light Cure, Categorized by Direction of Light Cure. 2(a) - Maxillary Central Incisor; 2(b) - Lateral Incisor; 2(c) - Maxillary Canine; and 2(d) - Maxillary Premolar. p-value is by t-test.
Figure 3
Figure 3
Shear Bond Strength (SBS) according to direction of Light Cure, categorized by Buccal/ Lingual Cure Direction. 3(a) - Maxillary Central Incisor; 3(b) - Lateral Incisor; 3(c) - Maxillary Canine; and 3(d) - Maxillary Premolar. p-value is by ANOVA.
Figure 4
Figure 4
ARI scoring frequency distribution.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Tavas MA, Watts DC. Bonding of orthodontic brackets by transillumination of a light activated composite: an in vitro study. British journal of orthodontics. 1979;6:207–8. - PubMed
    1. Fleming PS, Eliades T, Katsaros C, Pandis N. Curing lights for orthodontic bonding: a systematic review and meta-analysis. Am J Orthod Dentofacial Orthop. 2013;143:S92–103. - PubMed
    1. Keim RG, Gottlieb EL, Nelson AH, Vogels DS 3rd. JCO study of orthodontic diagnosis and treatment procedures, part 1: results and trends. Journal of clinical orthodontics. 2008;42:625–40. - PubMed
    1. Sunna S, Rock WP. An ex vivo investigation into the bond strength of orthodontic brackets and adhesive systems. British journal of orthodontics. 1999;26:47–50. - PubMed
    1. Wendl B, Droschl H. A comparative in vitro study of the strength of directly bonded brackets using different curing techniques. European journal of orthodontics. 2004;26:535–44. - PubMed
