Case Reports
. 2018 Feb 3;13(2):376-379.
doi: 10.1016/j.radcr.2018.01.011. eCollection 2018 Apr.

Massive mitral annular calcification mimicking intracardiac mass: Multimodality approach to diagnosis

Fabio Caruso  1 , Luisa Ventura  1 , Dafne Viliani  2 , Sabino Walter Della Sala  1
Affiliations
Case Reports

Massive mitral annular calcification mimicking intracardiac mass: Multimodality approach to diagnosis

Fabio Caruso et al. Radiol Case Rep. .

Abstract

The correct differential diagnosis of cardiac masses can be challenging and often carries important clinical implications. We present the case of a 78-year-old man with a cardiac mass of unclear etiology diagnosed on echocardiography. Using a multimodality approach with cardiac magnetic resonance and computed tomography, it was possible to define the real nature of the mass as composed of 2 voluminous calcifications of the mitral annulus.

Keywords: Cardiac magnetic resonance; Cardiac mass; Computed tomography; Mitral annular calcification.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1
Transthoracic ultrasound, long-axis projections: hyperechoic cardiac mass (arrows) in a patient with poor acoustic window.
Fig. 2
Fig. 2

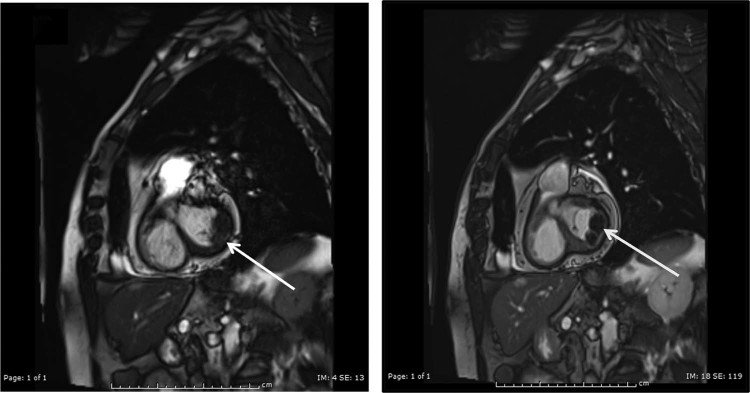

Cine magnetic resonance imaging along the short cardiac axis: 2 contiguous hypointense lesions (arrows).
Fig. 3
Fig. 3
T1-weighted scans along the short axis with contrast medium: hypoenhancement in the first pass (A) and in the late phase (B) after contrast medium (masses depicted by arrows).
Fig. 4
Fig. 4
Computed tomography scans: paracoronal plane (A) and parasagittal plane (B): the calcified nature of the lesions is clearly shown (arrows).
See this image and copyright information in PMC

References

    1. Motwani M., Kidambi A., Herzog B.A., Uddin A., Greenwood J.P., Plein S. MR imaging of cardiac tumors and masses: a review of methods and clinical applications. Radiology. 2013;268 - PubMed
    1. Hendel R.C., Patel M.R., Kramer C.M., Poon M., Hendel R.C., Carr J.C. ACCF/ACR/SCCT/S CMR/ASNC/NASCI/SCAI/SIR 2006 appropriateness criteria for cardiac computed tomography and cardiac magnetic resonance imaging: a report of the American College of Cardiology Foundation Quality Strategic Directions Committee Appropriateness Criteria Working Group, American College of Radiology, Society of Cardiovascular Computed Tomography, Society for Cardiovascular Magnetic Resonance, American Society of Nuclear Cardiology, North American Society for Cardiac Imaging, Society for Cardiovascular Angiography and Interventions, and Society of Interventional Radiology. J Am Coll Cardiol. 2006;48(7):1475–1497. Crossref, Medline. - PubMed
    1. Pomerance A. Pathological and clinical study of calcification of the mitral valve ring. J Clin Pathol. 1970;23:354–361. - PMC - PubMed
    1. Abramowitz Y., Jilaihawi H., Chakravarty T., Mack M.J., Makkar R.R. Mitral annulus calcification. J Am Coll Cardiol. 2015;66(17):1934–1941. - PubMed
    1. Gargani L., Pasanisi E., Donato Aquaro G., Masci P., Neglia D., Rovai D. vol. 100. 2009. Il caso di una massa intra-cardiaca. Case records dell'Istituto di Fisiologia Clinica del CNR; pp. 22–26. (N1 gennaio). - PubMed
