. 2018 Jan-Dec:17:1536012118782322.
doi: 10.1177/1536012118782322.

An Exploratory Study of Washout Rate Analysis for Thallium-201 Single-Photon Emission Computed Tomography Myocardial Perfusion Imaging Using Cadmium Zinc Telluride Detectors

Masaru Ishihara  1   2 , Masahisa Onoguchi  2 , Takayuki Shibutani  2
Affiliations

An Exploratory Study of Washout Rate Analysis for Thallium-201 Single-Photon Emission Computed Tomography Myocardial Perfusion Imaging Using Cadmium Zinc Telluride Detectors

Masaru Ishihara et al. Mol Imaging. 2018 Jan-Dec.

Abstract

The aim of this study was to assess the washout rate (WOR) for thallium-201-chloride single-photon emission computed tomography (SPECT) myocardial perfusion imaging (MPI) using cadmium zinc telluride detectors for SPECT (CZT SPECT) versus conventional Anger-type SPECT (conventional SPECT). A total of 52 Japanese patients were examined using CZT SPECT and conventional SPECT, and the global WORs were compared. Additionally, the MPI WORs were compared for patients with a normal MPI versus those in whom MPI reflected the patients' multivessel disease (MVD) MPI. Washout rates were similar when approximated by CZT SPECT versus conventional SPECT 12.59 ± 2.26%/h vs 12.57 ± 2.27%/h ( P = .997), respectively. The WOR values for CZT SPECT versus conventional SPECT were 13.42%/h (1.53%/h) vs 13.93%/h (1.24%/h) ( P = .337), respectively, for 7 normal MPI patients, and 10.64 ± 2.20%/h vs 10.84 ± 2.26%/h ( P = .848), respectively, for 7 MVD-MPI patients. The WOR values for normal MPI versus MVD-MPI patients for CZT SPECT were 13.42 ± 1.53%/h vs 10.64 ± 2.20%/h ( P = .025), respectively. Thallium-201-chloride WOR values obtained with high-efficiency CZT SPECT, which enabled significantly reduced imaging times and use of a low-dose protocol, were similar to those obtained with conventional SPECT.

Keywords: cadmium zinc telluride detectors; myocardial perfusion imaging; single-photon emission computed tomography; thallium-201-chloride; washout rate.

PubMed Disclaimer

Conflict of interest statement

Declaration of Conflicting Interests: The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Figures

Figure 1.
Figure 1.
Study protocol for stress/redistribution myocardial perfusion imaging with thallium-201-chloride (201Tl).
Figure 2.
Figure 2.

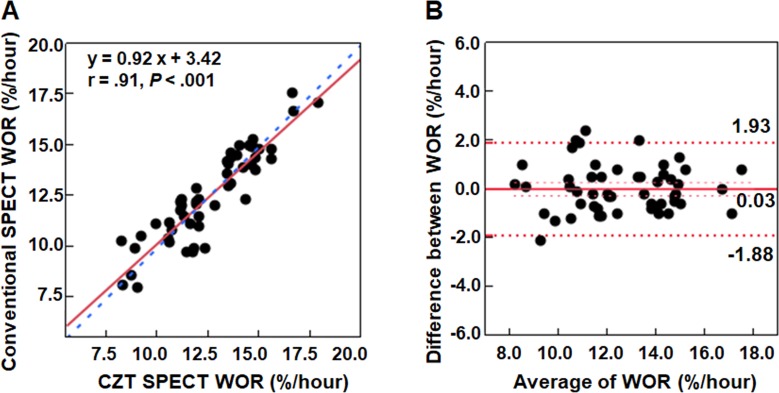

Linear regression analysis (A) and Bland-Altman plots (B) for cadmium zinc telluride single-photon emission computed tomography (CZT SPECT) and conventional SPECT.
Figure 3.
Figure 3.
An 80-year-old woman was found to have an abdominal aortic aneurysm during a preoperative cardiac evaluation. A, Contrast-enhanced computed tomography shows an infrarenal abdominal aortic aneurysm. B, Cadmium zinc telluride (CZT) single-photon emission computed tomography (SPECT) stress images (top row), redistribution images (bottom row), and washout rate (WOR) (at 15.6%/h) image. C, Conventional SPECT stress images (top row), redistribution images (bottom row), and WOR (at 14.8%/h) image.
Figure 4.
Figure 4.
A 76-year-old man with effort angina pectoris. A, Invasive coronary angiography shows 3-vessel disease. B, Cadmium zinc telluride (CZT) single-photon emission computed tomography (SPECT) stress images (top row), redistribution images (bottom row), and washout rate (WOR) (at 8.7%/h) image. C, Conventional SPECT stress images (top row), redistribution images (bottom row), and WOR (at 8.6%/h) image.
See this image and copyright information in PMC

References

    1. Chen CC, Huang WS, Hung GU, et al. Left-ventricular dyssynchrony evaluated by thallium-201 gated SPECT myocardial perfusion imaging: a comparison with Tc-99 m sestamibi. Nucl Med Commun. 2013;34(3):229–232. - PMC - PubMed
    1. Shiraishi S, Sakamoto F, Tsuda N, et al. Prediction of left main or 3-vessel disease using myocardial perfusion reserve on dynamic thallium-201 single-photon emission computed tomography with a semiconductor gamma camera. Circ J. 2015;79(3):623–631. - PubMed
    1. Ishihara M, Taniguchi Y, Onoguchi M, et al. Optimal thallium-201 dose in cadmium-zinc-telluride SPECT myocardial perfusion imaging. J Nucl Cardiol. 2018;25(3):947–954. - PubMed
    1. Bateman TM, Maddahi J, Gray RJ, et al. Diffuse slow washout of myocardial thallium-201: a new scintigraphic indicator of extensive coronary artery disease. J Am Coll Cardiol. 1984;4(1):55–64. - PubMed
    1. Koskinen M, Pöyhönen L, Seppänen S. Thallium-201 washout in coronary artery disease using SPECT—a comparison with coronary angiography. Eur J Nucl Med. 1987;12(12):609–612. - PubMed
