Relationship between CMR-derived parameters of ischemia/reperfusion injury and the timing of CMR after reperfused ST-segment elevation myocardial infarction

Abstract

Background: To investigate the influence of cardiovascular magnetic resonance (CMR) timing after reperfusion on CMR-derived parameters of ischemia/reperfusion (I/R) injury in patients with ST-segment elevation myocardial infarction (STEMI).

Methods: The study included 163 reperfused STEMI patients undergoing CMR during the index hospitalization. Patients were divided according to the time between revascularization and CMR (T_revasc-CMR: Tertile-1 ≤ 43; 43 < Tertile-2 ≤ 93; Tertile-3 > 93 h). T2-mapping derived area-at-risk (AAR) and intramyocardial-hemorrhage (IMH), and late gadolinium enhancement (LGE)-derived infarct size (IS) and microvascular obstruction (MVO) were quantified. T1-mapping was performed before and > 15 min after Gd-based contrast-agent administration yielding extracellular volume (ECV) of infarct.

Results: Main factors influencing I/R injury were homogenously balanced across T_revasc-CMR tertiles. T2 values of infarct and remote regions increased with increasing T_revasc-CMR tertiles (infarct: 60.0 ± 4.9 vs 63.5 ± 5.6 vs 64.8 ± 7.5 ms; P < 0.001; remote: 44.3 ± 2.8 vs 46.1 ± 2.8 vs ± 46.1 ± 3.0; P = 0.001). However, T2 value of infarct largely and significantly exceeded that of remote myocardium in each tertile yielding comparable T2-mapping-derived AAR extent throughout T_revasc-CMR tertiles (17 ± 9% vs 19 ± 9% vs 18 ± 8% of LV, respectively, P = 0.385). Similarly, T2-mapping-based IMH detection and quantification were independent of T_revasc-CMR. LGE-derived IS and MVO were not influenced by T_revasc-CMR (IS: 12 ± 9% vs 12 ± 9% vs 14 ± 9% of LV, respectively, P = 0.646). In 68 patients without MVO, T1-mapping based ECV of infarct region was comparable across T_revasc-CMR tertiles (P = 0.470).

Conclusion: In STEMI patients, T2 values of infarct and remote myocardium increase with increasing CMR time after revascularization. However, these changes do not give rise to substantial variation of T2-mapping-derived AAR size nor of other CMR-based parameters of I/R.

Trial registration: ISRCTN03522116 . Registered 30.4.2018 (retrospectively registered).

Keywords: Cardiovascular magnetic resonance; Extracellular volume; Myocardial edema; Myocardial infarction; T1-mapping; T2-mapping.

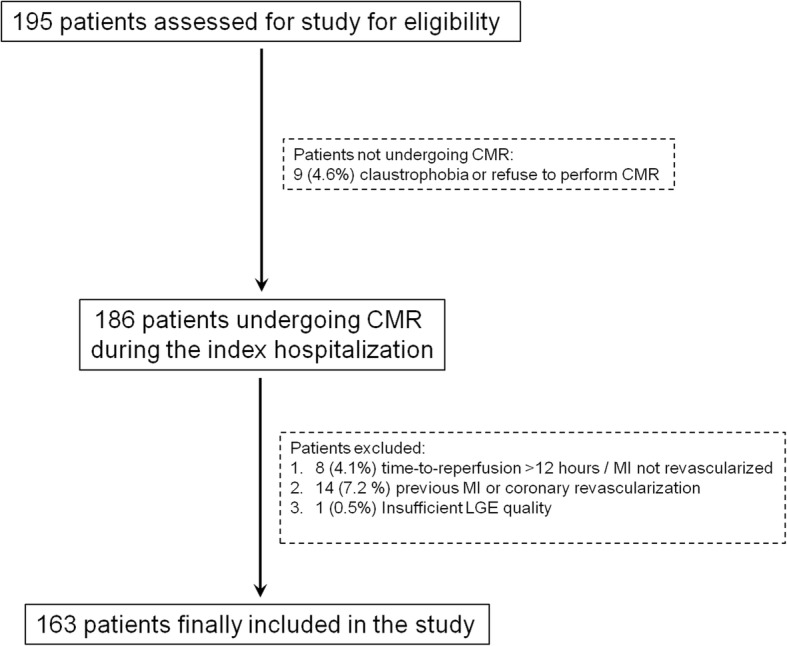

Fig. 1

Study Protocol

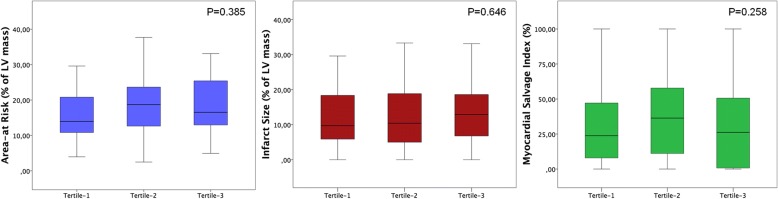

Fig. 2

Box-plots of area-at risk, infarct size and myocardial salvage in the tertiles of T_revasc-CMR

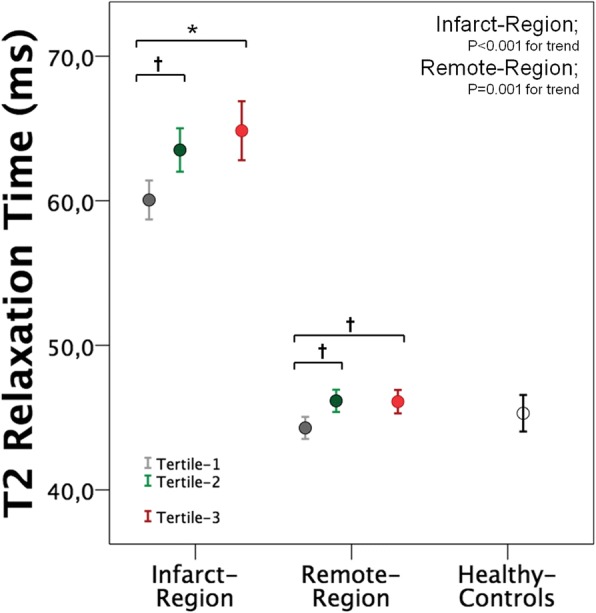

Fig. 3

Error Bars showing the mean and 95% confidence intervals of T2 values in infarct and remote regions across tertiles of T_revasc-CMR. Error bar of healthy controls is reported as reference. (Bonferroni’s post-hoc analysis: *P < 0.001; † P < 0.05)

Fig. 4

Error Bars showing the mean and 95% confidence intervals of T2 values in infarct and remote regions across tertiles of Trevasc-CMR in patients with and without intramyocardial hemorrage (IMH). Error bar of healthy controls is reported as reference. (Bonferroni’s post-hoc analysis: *P < 0.001; † P < 0.05)

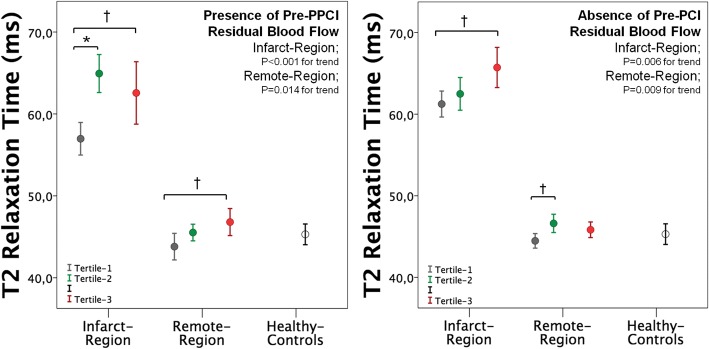

Fig. 5

Error bars showing the mean and 95% confidence intervals of T2 values in infarct and remote regions across tertiles of Trevasc-CMR in patients with and without residual pre-PPCI blood flow in the myocardium at risk. (Bonferroni’s post-hoc analysis: *P < 0.001; † P < 0.05)
