. 2018 Jul 1;10(7):e681-e686.
doi: 10.4317/jced.54834. eCollection 2018 Jul.

In vitro retention capacity of two overdenture attachment systems: Locator® and Equator®

Nieves Mínguez-Tomás  1 , Jorge Alonso-Pérez-Barquero  1 , Lucía Fernández-Estevan  2 , Ángel Vicente-Escuder  3 , Eduardo J Selva-Otaolaurruchi  4
Affiliations

In vitro retention capacity of two overdenture attachment systems: Locator® and Equator®

Nieves Mínguez-Tomás et al. J Clin Exp Dent. .

Abstract

Background: It is necessary to know the in vitro behavior of different attachment systems to be used clinically. The evolution of retention capacity over 10 years (14,600 insertion/de-insertion cycles) was determined in vitro, evaluating two overdenture attachment systems (Locator® and OT Equator®).

Material and methods: The study used an implant replica compatible with the abutments of both systems. 10 Locator® and 10 OT Equator® attachments were screwed to the abutments. Nylon inserts were attached and tested, subjecting them to 14,600 insertion and de-insertion cycles (representing 10 years functional life) in axial direction. The universal test machine crosshead speed was 50 mm/min with a de-insertion range of 2 mm.

Results: The initial retention of Locator® was 17.02 N and of Equator® 16.36 N. After 14,600 cycles, Locator® suffered a mean loss of retention of 50.89%, while Equator® lost 69.28%. Both systems showed retention increases up to the first 1,000 cycles, which decreased thereafter up to 14.600 cycles. Statistically significant differences between the systems were found after 7,500 cycles.

Conclusions: Both systems presented acceptable retention capacities after 14,600 cycles. Significant differences in retention force between the systems evolved after 7,500 cycles (5 years in vitro use). These results should be treated with caution and should be verified clinically. Key words:Denture, mandibular prosthesis implantation, attachment, dental implant-abutment connection, denture retention.

PubMed Disclaimer

Conflict of interest statement

Conflict of interest statement: The authors declare that the paper has been submitted without conflict of interest, and without funding.

Figures

Figure 1
Figure 1
A, Locator Abutment (male part) B, Locator housing with pink nylon insert (female part) C, Locator housing (female part). Lateral view.
Figure 2
Figure 2

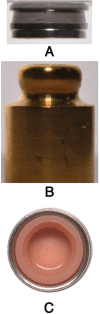

A, Equator Abutment (male part), B, Equator housing with pink nylon insert (female part), C, Equator housing (female part). Lateral view.
Figure 3
Figure 3
Box plot shows the distribution of retention values obtained by the two groups.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Fromentin O, Lassauzay C, Abi Nader S, Feine J, de Albuquerque Junior RF. Testing the retention of attachments for implant overdentures - validation of an original force measurement system. J Oral Rehabil. 2010;37:54–62. - PubMed
    1. Lehmann KM. Studies on the retention forces of snap-on attachments. Quintessence Dent Technol. 1978;7:45–8.
    1. Feine JS, Carlsson GE. The McGill Consensus Statement on Overdentures. Int J Prosthodont. 2002;15:413–4. - PubMed
    1. Besimo CE, Guarneri A. In vitro retention force changes of prefabricated attachments for overdentures. J Oral Rehabil. 2003;30:671–8. - PubMed
    1. Gamborena JI, Hazelton LR, NaBadalung D, Brudvik J. Retention of ERA direct overdenture attachments before and after fatigue loading. Int J Prosthodont. 1997;10:123–30. - PubMed
