Improving perfusion defect detection with respiratory motion correction in cardiac SPECT at standard and reduced doses

Chao Song  1 , Yongyi Yang  2 , Albert Juan Ramon  1 , Miles N Wernick  1 , P Hendrik Pretorius  3 , Karen L Johnson  3 , Piotr J Slomka  4 , Michael A King  3
Affiliations

Improving perfusion defect detection with respiratory motion correction in cardiac SPECT at standard and reduced doses

Chao Song et al. J Nucl Cardiol. 2019 Oct.

Abstract
in English, Spanish, Chinese, French

Background: In cardiac SPECT perfusion imaging, respiratory motion can cause non-uniform blurring in the reconstructed myocardium. We investigate the potential benefit of respiratory correction with respiratory-binned acquisitions, both at standard dose and at reduced dose, for defect detection and for left ventricular (LV) wall resolution.

Methods: We applied two reconstruction methods for respiratory motion correction: post-reconstruction motion correction (PMC) and motion-compensated reconstruction (MCR), and compared with reconstruction without motion correction (Non-MC). We quantified the presence of perfusion defects in reconstructed images by using the total perfusion deficit (TPD) scores and conducted receiver-operating-characteristic (ROC) studies using TPD. We quantified the LV spatial resolution by using the FWHM of its cross-sectional intensity profile.

Results: The values in the area-under-the-ROC-curve (AUC) achieved by MCR, PMC, and Non-MC at standard dose were 0.835, 0.830, and 0.798, respectively. Similar AUC improvements were also obtained by MCR and PMC over Non-MC at 50%, 25%, and 12.5% of full dose. Improvements in LV resolution were also observed with motion correction.

Conclusions: Respiratory-binned acquisitions can improve perfusion-defect detection accuracy over traditional reconstruction both at standard dose and at reduced dose. Motion correction may contribute to achieving further dose reduction while maintaining the diagnostic accuracy of traditional acquisitions.

Antecedentes.: En los estudios de perfusión cardiaca por SPECT, los movimientos respiratorios pueden causar distorsión no uniforme en el miocardio reconstruido. Investigamos el beneficio potencial de la corrección respiratoria con adquisición de imágenes sincronizadas con la respiración, tanto a dosis estándar como a dosis reducida, para detección de defectos y para resolución de pared de ventrículo izquierdo (VI).

Métodos.: Aplicamos dos métodos de reconstrucción para corrección de movimientos respiratorios: Corrección de movimiento post reconstrucción (PMC) y reconstrucción compensada a movimiento (MCR), y los comparamos con la reconstrucción sin corrección de movimiento (Non-MC). Cuantificamos la presencia de defectos de perfusión en las imágenes reconstruidas usando los scores de déficit total de perfusión (TPD) y análisis ROC usando el TPD. Cuantificamos la resolución espacial del VI usando la anchura a media altura de su perfil de intensidad transversal.

Resultados.: Los valores en el área bajo la curva ROC (ABC) obtenidos por MCR, PMC y Non-MC a dosis estándar fueron 0.835, 0.830 y 0.798, respectivamente. Mejorías similares del ABC también se obtuvieron por MCR y PMC, sobre Non-MC a 50%, 25% y 12.5% de la dosis completa. Las mejorías en la resolución del VI fueron observadas también con corrección del movimiento.

Conclusiones.: Las adquisiciones sincronizadas con la respiración pueden mejorar la precisión de la detección de defectos de perfusión sobre las reconstrucciones tradicionales tanto a dosis estándar como a dosis reducida. La corrección de movimiento puede contribuir a lograr mayor reducción de la dosis manteniendo la precisión diagnóstica de las adquisiciones tradicionales.

背景.: 在心脏 SPECT 灌注成像中, 呼吸运动会导致心肌重建的不均匀模糊。我们研究了无论是标准剂量还是减少剂量的情况下, 呼吸跟踪采集的呼吸校正用于图像缺损检测和左心室(LV) 室壁分辨率的潜在益处。

方法.: 我们使用了两种呼吸运动校正的重建方法:重建后运动校正 (PMC) 和运动补偿重建(MCR), 并与没有运动校正的重建(Non-MC) 进行比较。 通过总灌注缺损(TPD) 评分和其接受者操作特性曲线 (ROC) 来量化重建图像中的灌注缺陷。通过LV横截面强度分布的 FWHM来量化 LV 空间分辨率。

结果.: MCR, PMC 和 Non-MC 在标准剂量下所获得的 ROC 曲线下面积 (AUC) 的值分别为0.835, 0.830 和 0.798。 在全剂量下, MCR, PMC和Non-MC 也获得类似的AUC 提高,分别为50%, 25% 和 12.5%。 在运动校正下, LV的分辨率也得到了改善。

结论.: 在标准剂量和减少剂量的情况下,呼吸跟踪采集可以改善灌注缺损检测的准确性。运动校正可能有助于进一步实现减少剂量的目标, 同时保证通过传统检测方法的诊断准确性。

Contexte.: Les mouvements respiratoires peuvent entrainer des artefacts de uniformité lors de la reconstruction des images de perfusion myocardique en SPECT. Dans cet article, nous rapportons nos résultats sur le bénéfice potentiel du « gating » respiratoire avec des doses standards et réduites de radio-pharmaceutiques pour la détection des anomalies de perfusion et les mesures de la paroi ventriculaire gauche.

Méthodes.: Nous avons appliqué deux méthodes de reconstruction pour la correction du mouvement respiratoire: la première fait appel a une correction après reconstruction des images (PMC) ; la seconde fait appel à la correction des images avant reconstruction (MRC). Les deux approches ont été comparées à la reconstruction sans correction de mouvement (Non-MC). Nous avons quantifié les déficits de perfusion myocardiques sur les images reconstruites avec le système des scores de déficit de perfusion et analysé les résultats en utilisant les courbes ROC. Nous avons quantifié la résolution spatiale du VG en utilisant le FWHM du profil d’intensité de sa section transversale.

Résultats.: Les valeurs des surfaces en dessous des courbes ROC (AUC) obtenues par MCR, PMC et Non-MC avec doses standard de radio-pharmaceutiques étaient de 0,835, 0,830 et 0,798, respectivement. Des améliorations similaires de l’AUC ont également été obtenues par MCR et PMC sur Non-MC avec 50%, 25% et 12,5% des doses entières. Les mesures de resolution spatiale de la paroi du VG ont également été améliorées avec la correction des mouvements respiratoires.

Conclusions.: La correction des images de perfusion myocardiques en SPECT par « gating » respiratoire paraît améliorer la quantification des déficits perfusionels à la fois à dose standard et à dose réduite de radio-pharmaceutiques. L’application de cette correction devrait permettre de réduire les doses de radio-pharmaceutiques utilisées tout en maintenant la précision diagnostique des acquisitions traditionnelles.

Keywords: CAD; MPI; SPECT; image reconstruction.

PubMed Disclaimer

Figures

Figure 1.
Figure 1.
A mid-LV short-axis slice illustrating the inferior wall location used for image intensity profile analysis. The full-width at half-maximum (FWHM) of the image intensity profile is used to quantify the LV resolution.
Figure 2.
Figure 2.

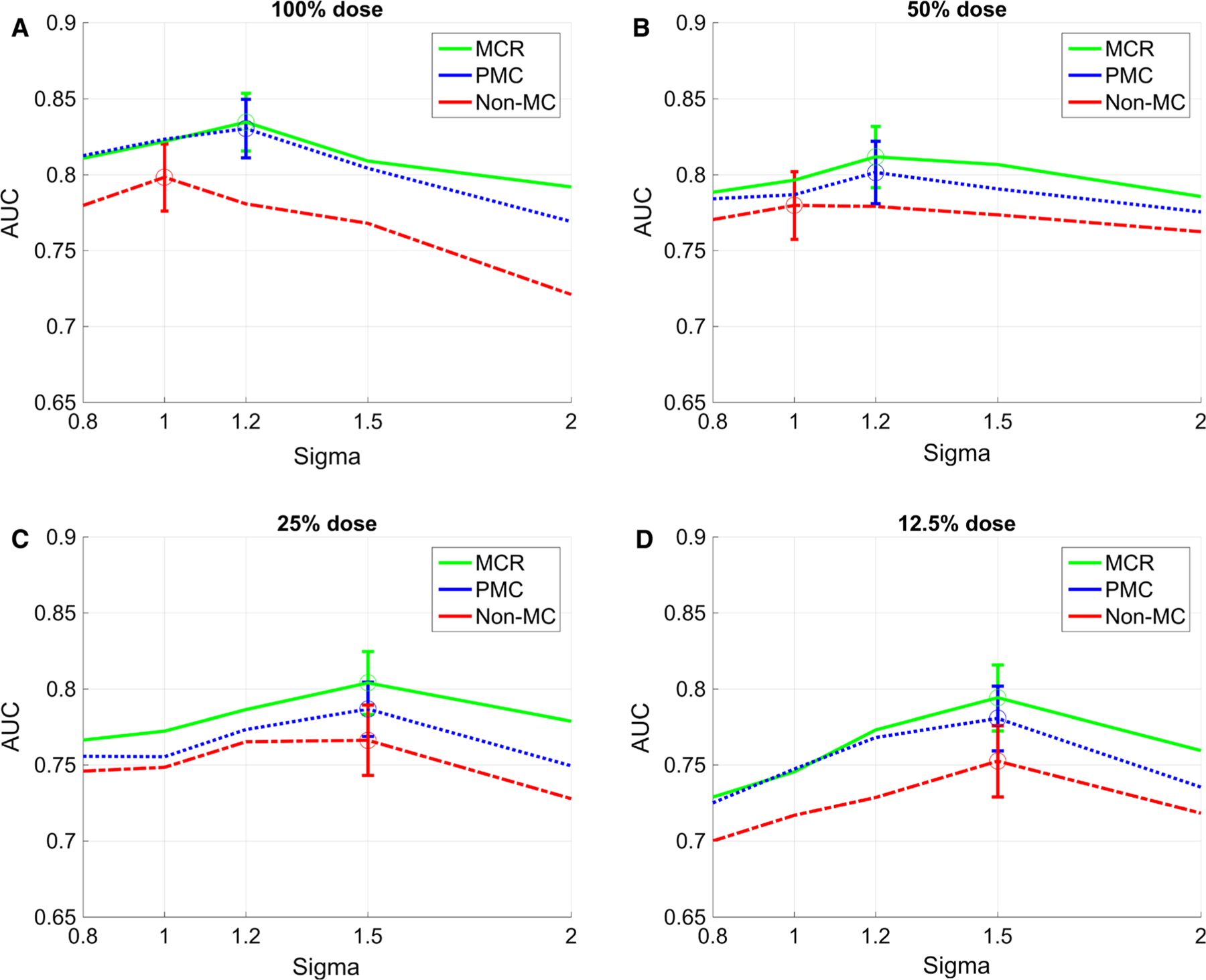

Perfusion defect detection results, measured by AUC, obtained at various dose levels: (A) 100%, (B) 50%, (C) 25%, and (D) 12.5%. The reconstruction methods are: motion-compensated reconstruction (MCR), post-reconstruction motion correction (PMC), and no motion correction (non-MC). The AUC value is plotted vs the width parameter Sigma of the 3D Gaussian filter (larger Sigma value corresponding to more smoothing). The circle marker on each curve indicates the optimal (maximum) AUC value for the corresponding reconstruction method. The error bars correspond to ±1 SD.
Figure 3.
Figure 3.
FWHM values of the reconstructed LV wall counts (at location shown in Figure 1) at various dose levels (i.e. 100%, 50%, 25%, and 12.5%). The reconstruction methods are: motion-compensated reconstruction (MCR), post-reconstruction motion correction (PMC), and no motion correction (Non-MC). The error bars denote ±1 SD. Note the increase in FWHM with decreased dose due to the larger smoothing applied (as per Figure 2).
Figure 4.
Figure 4.
Reconstructed images (A short-axis slices and polar maps; B vertical long-axis slices) from the clinical data of subject #1 (female, age: 59, BMI: 42.5) at 100% dose. The extent of superoinferior motion of the LV due to respiratory motion was 1.87 cm. The results are shown in (A) and (B) for each of the three reconstruction methods: motion-compensated reconstruction (MCR) (1st row), post-reconstruction motion correction (PMC) (2nd row), and no motion correction (Non-MC) (3rd row). The cooling artifact observed in anterior and inferior LV walls in Non-MC is improved by respiratory motion correction in MCR and PMC. There is also better separation in LV from sub-diaphragmatic activity in MCR and PMC.
Figure 5.
Figure 5.

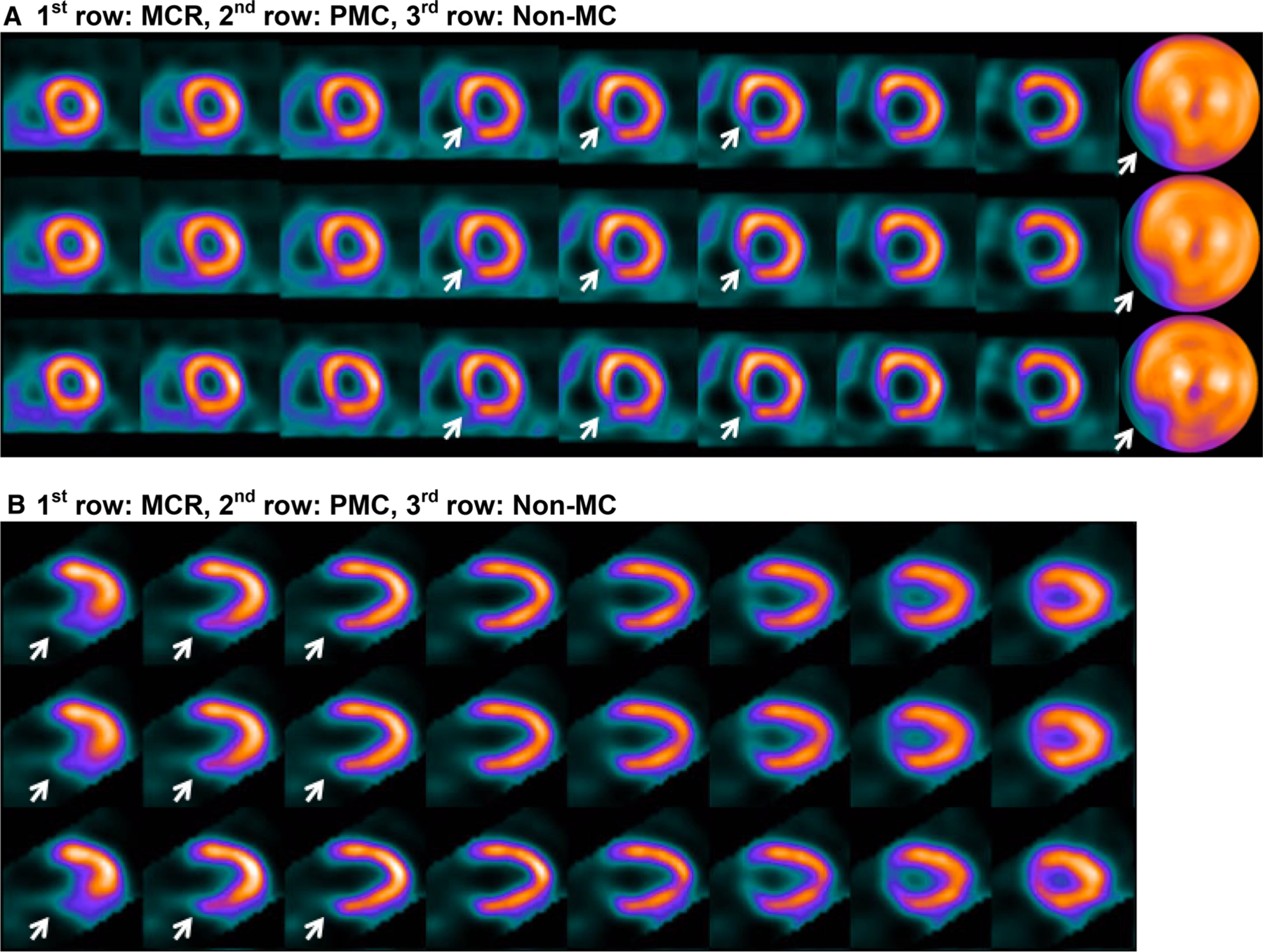

Reconstructed images (A: short-axis slices and polar maps; B: vertical long-axis slices) of subject #2 (male, age: 53, BMI: 22.0) at 100% dose. There was a moderate sized defect with 50% contrast (green arrows) introduced in the RCA territory. The extent of superoinferior motion of the LV due to respiratory motion was 1.28 cm. The results are shown in (A) and (B) for each of the three reconstruction methods: motion-compensated reconstruction (MCR) (1st row), post-reconstruction motion correction (PMC) (2nd row), and no motion correction (Non-MC) (3rd row). The regional cooling away from the defect in the inferior LV wall observed in Non-MC is reduced by respiratory motion correction in MCR and PMC.
