. 2018 Sep;52(5):392-396.
doi: 10.1016/j.aott.2018.07.002. Epub 2018 Aug 16.

"Horizontal butterfly" technique in repair of radial meniscus tears: A biomechanical study

Murat Aşçi  1 , Orhan Balta  2 , Recep Kurnaz  3 , Mehmet Burtaç Eren  4 , Yunus Emre Kuyucu  5 , Taner Güneş  6
Affiliations

"Horizontal butterfly" technique in repair of radial meniscus tears: A biomechanical study

Murat Aşçi et al. Acta Orthop Traumatol Turc. 2018 Sep.

Abstract

Introduction: Radial meniscus tears are seen in young patients, especially with anterior cruciate ligament ruptures. Repair of complete radial meniscus tear is necessary for the meniscus functions. The most important factor for success of the meniscus repair is primary stability, but it is still unknown which technique is ideal repair technique.

Aim: We developed a new suture technique named Horizontal Butterfly (HB). In this novel technique the contact between meniscal tissue and suture is more than Horizontal Loop (HL) that routinely used today. So, we think that this technique will provide better fixation than HL. We aimed to compare 2 repair techniques (HB vs. HL) using human lateral menisci biomechanically with cyclic loading and load to failure tests.

Material-method: We used 22 intact lateral meniscus obtained from patients that operated (total knee replacement) for varus gonarthrosis in our clinic. All menisci were cut radially. In the first group (n:11) menisci were repaired with standard horizontal loop technique, and in the second group (n:11) horizontal butterfly technique were used for repair. All specimens were tested with load to failure test after cyclic loading test (500 cycle X 5-30 N).

Results: Both groups have similar failure load (71,4 ± 17,52 N vs. 77,9 ± 28,49 N; p:0,559) and stiffness (24,46 ± 19,19 N vs. 24,48 ± 15,87 N; p:0,818). HB group has less peak displacement (6,26 ± 1,24 mm vs. 8,4 ± 1,92 mm; p:0,010).

Conclusion: This novel repair technique decreases the amount of displacement according to standard technique while as strong as standard technique routinely used. In this way; we believe that it will increase the rate of healing in clinical use.

Keywords: Cyclic loading; Horizontal butterfly; Horizontal loop; Meniscus surgery; Radial meniscus tear; Repair techniques.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1

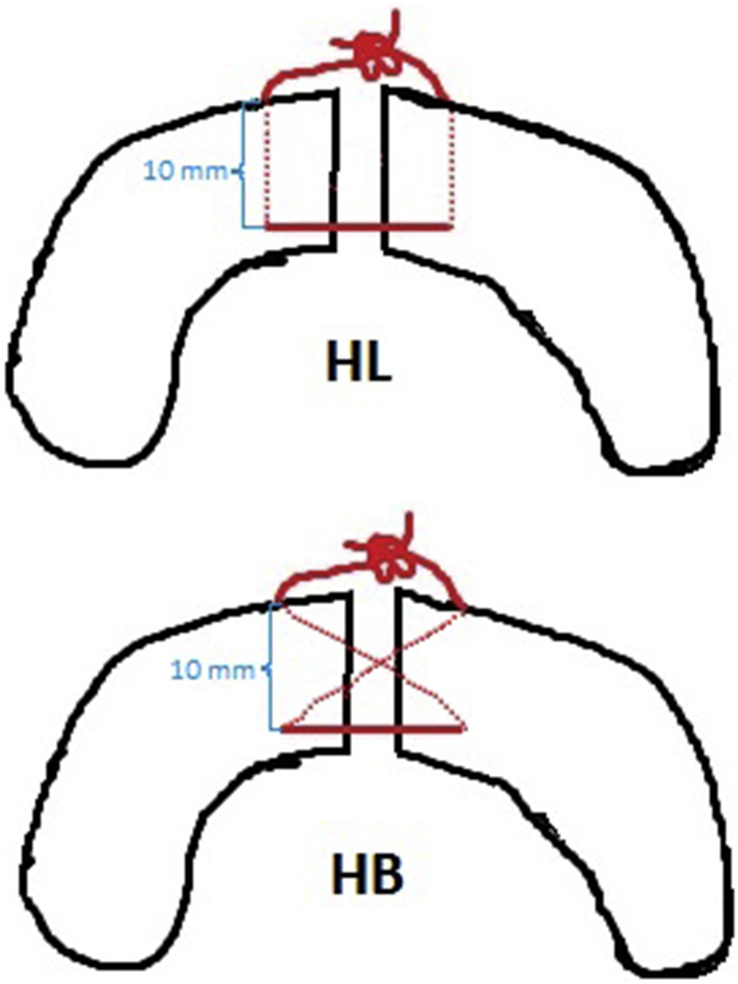

Schematic drawings of HL (horizontal loop) and HB (horizontal butterfly) suture techniques.
Fig. 2
Fig. 2

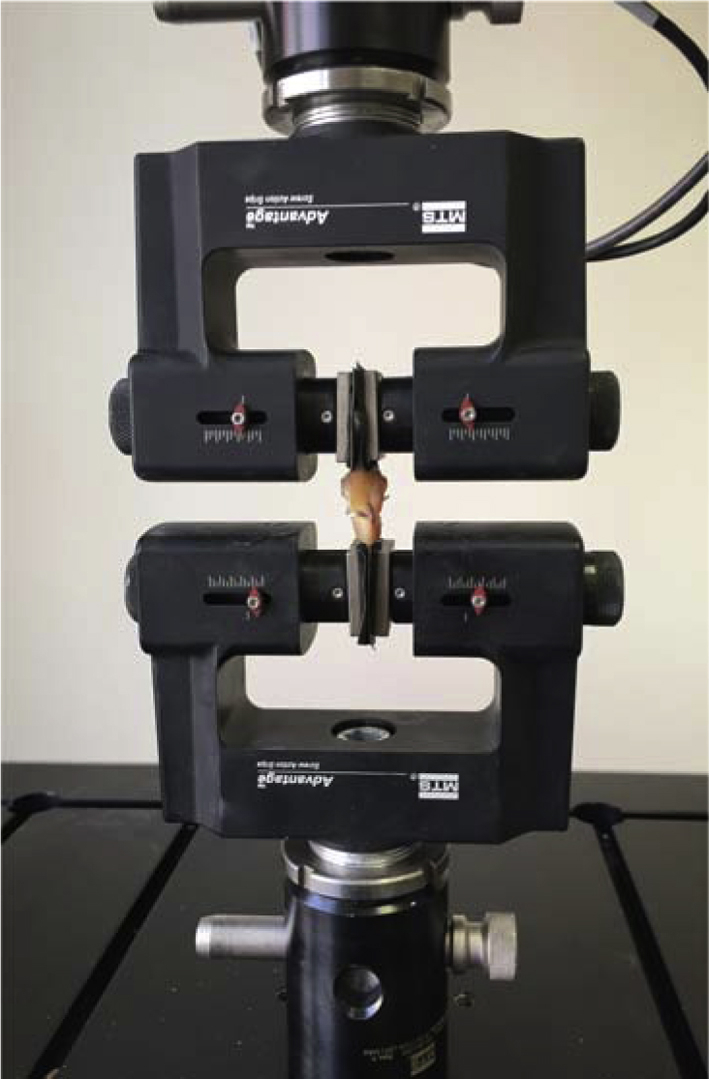

Placement of the repaired meniscus on the biomechanical tester.
Fig. 3
Fig. 3

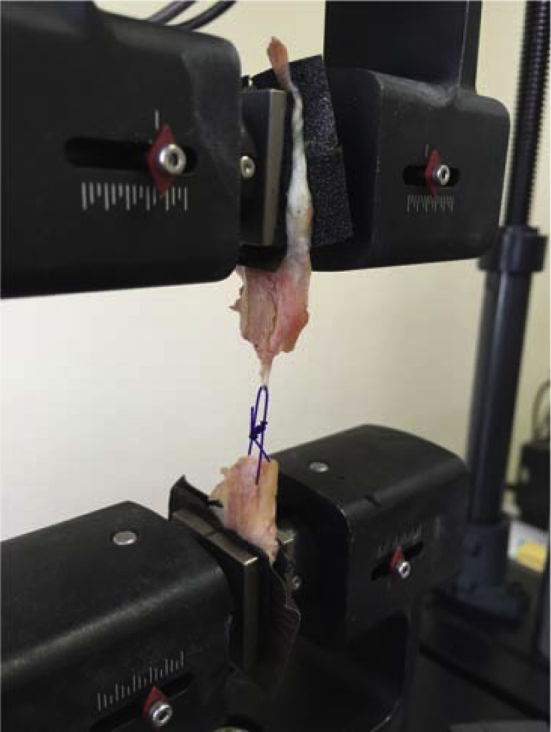

The peeling of the suture from the meniscus after the failure test.
See this image and copyright information in PMC
