. 2018 Jun;70(2):83-88.
doi: 10.1016/j.ehj.2017.12.003. Epub 2017 Dec 24.

Effect of elective percutaneous coronary intervention of left anterior descending coronary artery on regional myocardial function using strain imaging

Gehan Magdy  1 , Mohammed Sadaka  1 , Tarek Elzawawy  1 , Abdallah Elmaghraby  1
Affiliations

Effect of elective percutaneous coronary intervention of left anterior descending coronary artery on regional myocardial function using strain imaging

Gehan Magdy et al. Egypt Heart J. 2018 Jun.

Abstract

Background: Percutaneous coronary intervention (PCI) is a commonly used procedure for revascularization, however the impairment of regional myocardial function in patients with stable coronary artery disease (CAD) has not been well characterized, our study aimed to assess the improvement of left ventricular (LV) systolic function after elective PCI of the left anterior descending artery (LAD) using strain and strain rate imaging techniques.

Materials and methods: The study included 30 patients (aged 56.8 ± 6.6 years, 66.7% males) presented with stable CAD on optimal medical therapy, and recommended for elective PCI to LAD, all patients included in the study had a normal LV wall motions, and normal LV systolic function. Tissue Doppler imaging (TDI) was done before PCI, immediately, and three months post PCI. The peak systolic longitudinal strain (PSLS), and peak systolic strain rate (PSSR) were measured and averaged for the 6 LAD segments (the basal, mid, and apical segments of the anterior wall, the basal, mid anteroseptal, and the apicoseptal segments), 15 healthy control subjects were included as a control group.

Results: The average PSLS and PSSR of the ischemic segments were significantly lower in patients compared to control in the ischemic segments, and significantly increased 3 months post PCI but not immediately post PCI. Using the ROC curve a cutoff value of -13.69% for PSLS can detect regional ischemia with a sensitivity 93.3% and a specificity of 80%.

Conclusions: TDI derived strain and strain rate can detect resting regional myocardial dysfunction in presence of preserved LV systolic function, and can assess the improvement of regional myocardial function after successful elective PCI in patients with stable CAD.

Keywords: Percutaneous coronary intervention; Regional myocardial function; Strain imaging.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1
Left ventricular wall segments in the 16 LV segment model, LAD: left anterior descending artery, LCX: left circumflex artery, RCA: right coronary artery.
Fig. 2
Fig. 2

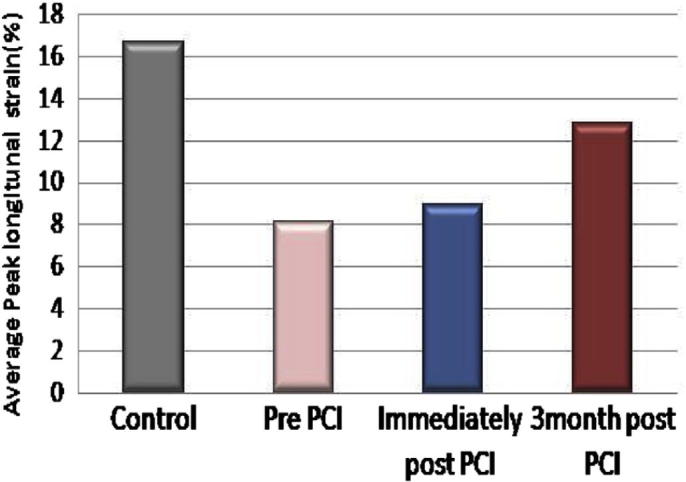

Comparison of the average peak systolic longitudinal strain of the ischemic region in control group and patients before and after PCI.
Fig. 3
Fig. 3
Comparison of the average peak systolic longitudinal strain rate of the ischemic region in control and patients before and after PCI.
Fig. 4
Fig. 4
ROC curve showing the sensitivity and specificity of the peak systolic strain to detect regional ischemia in LAD territory.
Fig. 5
Fig. 5
ROC curve showing the sensitivity and specificity of the peak systolic strain rate to detect regional ischemia in LAD territory.
See this image and copyright information in PMC

References

    1. Cassar Andrew, Holmes David R., Jr., Rihal Charanjit S., Gersh Bernard J. Chronic coronary artery disease: diagnosis and management. Mayo Clin Proc. 2009;84(12):1130–1146. - PMC - PubMed
    1. Lloyd-Jones Donald, Carnethon Mercedes, Flegal Katherine, Greenlund Kurt, Howard Virginia, Lisabeth Lynda. American Heart Association Statistics Committee and Stroke Statistics Subcommittee. Heart disease and stroke statistics–2009 update: a report from the American Heart Association Statistics Committee and Stroke Statistics Subcommittee [published correction appears in Circulation. 2009; 119(3):e182] Circulation. 2009;119(3):480–486. - PubMed
    1. Miyatake K., Yamagishi M., Tanaka N., Uematsu M., Yamazaki N., Mine Y. New method for evaluating left ventricular wall motion by color-coded tissue Doppler imaging: in vitro and in vivo studies. J Am Coll Cardiol. 1995;25:717–724. - PubMed
    1. Heimdal A., Stoylen A., Torp H., Skjaerpe T. Real-time strain rate imaging of the left ventricle by ultrasound. J Am Soc Echocardiogr. 1998;11:1013–1019. - PubMed
    1. Agirbasli M., Guler N. Recovery of left ventricular systolic function after left anterior descending coronary artery stenting. J Interv Cardiol. 2005;18(2):83–88. - PubMed
