Quantification of permethrin resistance and kdr alleles in Florida strains of Aedes aegypti (L.) and Aedes albopictus (Skuse)

Abstract

Recent outbreaks of locally transmitted dengue and Zika viruses in Florida have placed more emphasis on integrated vector management plans for Aedes aegypti (L.) and Aedes albopictus Skuse. Adulticiding, primarily with pyrethroids, is often employed for the immediate control of potentially arbovirus-infected mosquitoes during outbreak situations. While pyrethroid resistance is common in Ae. aegypti worldwide and testing is recommended by CDC and WHO, resistance to this class of products has not been widely examined or quantified in Florida. To address this information gap, we performed the first study to quantify both pyrethroid resistance and genetic markers of pyrethroid resistance in Ae. aegypti and Ae. albopictus strains in Florida. Using direct topical application to measure intrinsic toxicity, we examined 21 Ae. aegypti strains from 9 counties and found permethrin resistance (resistance ratio (RR) = 6-61-fold) in all strains when compared to the susceptible ORL1952 control strain. Permethrin resistance in five strains of Ae. albopictus was very low (RR<1.6) even when collected from the same containers producing resistant Ae. aegypti. Characterization of two sodium channel kdr alleles associated with pyrethroid-resistance showed widespread distribution in 62 strains of Ae. aegypti. The 1534 phenylalanine to cysteine (F1534C) single nucleotide polymorphism SNP was fixed or nearly fixed in all strains regardless of RR. We observed much more variation in the 1016 valine to isoleucine (V1016I) allele and observed that an increasing frequency of the homozygous V1016I allele correlates strongly with increased RR (Pearson corr = 0.905). In agreement with previous studies, we observed a very low frequency of three kdr genotypes, IIFF, VIFF, and IIFC. In this study, we provide a statewide examination of pyrethroid resistance, and demonstrate that permethrin resistance and the genetic markers for resistance are widely present in FL Ae. aegypti. Resistance testing should be included in an effective management program.

Fig 1. Permethrin resistance ratios of Ae. aegypti and Ae. albopictus (in blue) strains compared to the susceptible ORL1952 laboratory strain.

The Ae. albopictus RR for St John’s County (marked with asterisks) are taken from our previous study [24]. Base maps were sourced from ESRI and Tele Atlas data through ArcGIS Online under an enterprise license with USDA. Additional layers were added to the base map using GIMP 2.8.

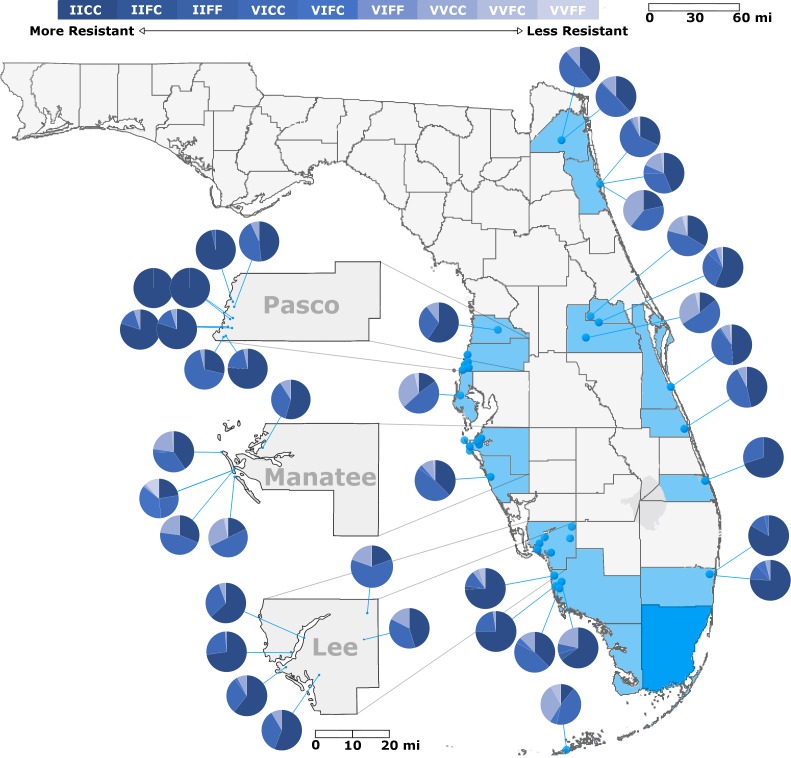

Fig 2. Frequency of kdr genotypes in 40 strains of FL Aedes aegypti.

Genotype frequencies were determined using the methods of [28, 29] as described in the methods section. Specific collection locations that are included in each tested population are noted in S1 File. Strains included a minimum of 25 individual organisms. Base maps were sourced from ESRI and Tele Atlas data through ArcGIS Online under an enterprise license with USDA. Additional layers were added to the base map using GIMP 2.8. Graphical representation of kdr frequencies was produced using Microsoft Excel and included as an additional layer.

Fig 3. Kdr genotype frequencies in 20 populations of Aedes aegypti from Miami-Dade County, FL.

Genotype frequencies were determined using the methods of [32, 33] as described in the methods section. Specific collection locations that are included in each tested population are noted in S1 File. All data is based on a minimum of 76 tested individuals. Base maps were sourced from ESRI and Tele Atlas data through ArcGIS Online under an enterprise license with USDA. Additional layers were added to the base map using GIMP 2.8. Graphical representation of kdr frequencies was produced using Microsoft Excel and included as an additional layer.

Fig 4. Regression of genotype IICC frequency to resistance ratio.

Plot of RR versus IICC frequency indicates a strong correlation between the two factors (Pearson correlation coefficient ρ = 0.905). Comparison of RR to other genotypes did not indicate a strong correlation.
