. 2018 Nov:72:124-133.
doi: 10.1016/j.compenvurbsys.2018.06.003.

Using population surfaces and spatial metrics to track the development of deprivation landscapes in Glasgow, Liverpool, and Manchester between 1971 and 2011

Joanna L Stewart  1 , Mark Livingston  2 , David Walsh  3 , Richard Mitchell  4
Affiliations

Using population surfaces and spatial metrics to track the development of deprivation landscapes in Glasgow, Liverpool, and Manchester between 1971 and 2011

Joanna L Stewart et al. Comput Environ Urban Syst. 2018 Nov.

Abstract

Measuring change in the spatial arrangement of deprivation over time, and making international, inter-city comparisons, is technically challenging. Meeting these challenges offers a means of furthering understanding and providing new insights into the geography of urban poverty and deprivation. In this paper, we introduce a novel approach to mapping and analysing spatio-temporal patterns of household deprivation, assessing the distribution at the landscape level. The approach we develop has advantages over existing techniques because it is applicable in situations where i) conventional approaches based on choropleth mapping are not feasible due to boundary change and/or ii) where spatial relationships at a landscape level are of interest. Through the application of surface mapping techniques to disaggregate census count data, and by applying spatial metrics commonly used in ecology, we were able to compare the development of the spatial arrangement of deprivation between 1971 and 2011 in three UK cities of particular interest: Glasgow, Manchester and Liverpool. Applying three spatial metrics - spatial extent, patch density, and mean patch size - revealed that over the 40 year period household deprivation has been more spatially dispersed in Glasgow. This novel approach has enabled an analysis of deprivation distributions over time which is less affected by boundary change and which accurately assesses and quantifies the spatial relationships between those living with differing levels of deprivation. It thereby offers a new approach for researchers working in this area.

Keywords: Patterning of deprivation; Spatial metrics; Surface mapping.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1
Surface maps showing the most deprived areas of Glasgow at decennial intervals from 1971 to 2011. (source: Based on census data and boundary data provided by General Register Office for Scotland and the National Records for Scotland with the support of the UK Data Service Census Support. Contains National Statistics data © crown copyright and database right 2013. Contains Ordnance Survey data © crown copyright and database right 2013)
Fig. 2
Fig. 2
surface maps showing the most deprived areas of Liverpool at decennial intervals from 1971 to 2011. (source: Based in census data and boundary data provided by English Office for National Statistics and Office for Population Census and Surveys with the support of the UK Data Service Census Support. Contains National Statistics data © crown copyright and database right 2013. Contains Ordnance Survey data © crown copyright and database right 2013)
Fig. 3
Fig. 3
surface maps showing the most deprived areas of Manchester at decennial intervals from 1971 to 2011. (source: Based in census data and boundary data provided by English Office for National Statistics and Office for Population Census and Surveys with the support of the UK Data Service Census Support. Contains National Statistics data © crown copyright and database right 2013. Contains Ordnance Survey data © crown copyright and database right 2013)
Fig. 4
Fig. 4

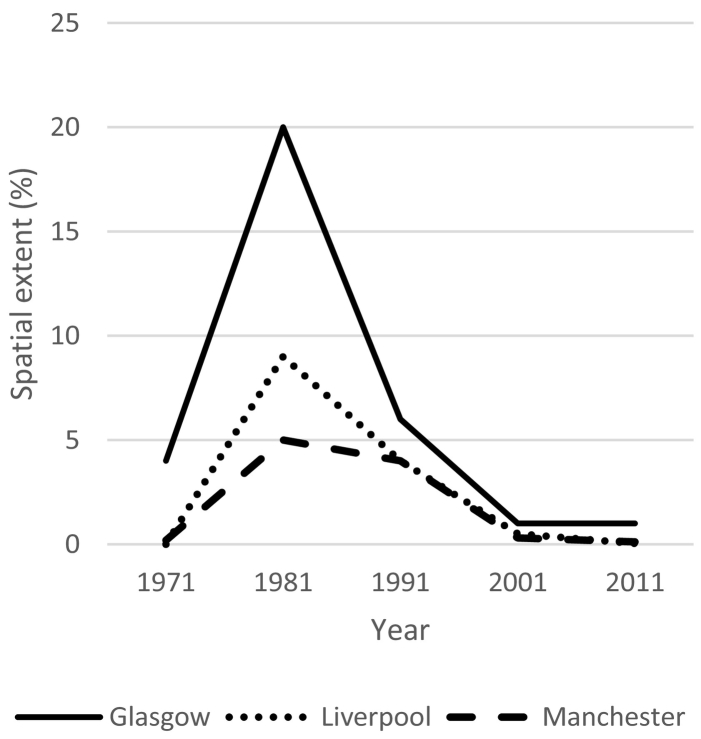

Percent of Glasgow, Liverpool, and Manchester's total area comprised of cells with high levels of household deprivation.
Fig. 5
Fig. 5

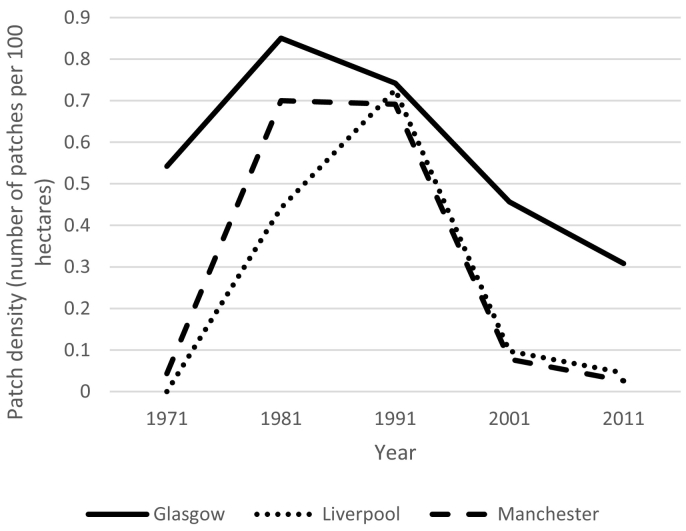

Patch density values for Glasgow, Liverpool, and Manchester 1971–2011.
See this image and copyright information in PMC
