. 2018 Nov 6;23(11):2888.
doi: 10.3390/molecules23112888.

Immobilized Cells of Bacillus circulans ATCC 21783 on Palm Curtain for Fermentation in 5 L Fermentation Tanks

Jinpeng Wang  1   2 , Yao Hu  3   4 , Chao Qiu  5   6 , Haoran Fan  7   8 , Yan Yue  9   10 , Aiquan Jiao  11   12   13 , Xueming Xu  14   15 , Zhengyu Jin  16   17   18
Affiliations

Immobilized Cells of Bacillus circulans ATCC 21783 on Palm Curtain for Fermentation in 5 L Fermentation Tanks

Jinpeng Wang et al. Molecules. .

Abstract

Palm curtain was selected as carrier to immobilize Bacillus circulans ATCC 21783 to produce β-cyclodextrin (β-CD). The influence for immobilization to CGTase activity was analyzed to determine the operation stability. 83.5% cyclodextrin glycosyltransferases (CGTase) of the 1st cycle could be produced in the 7th cycle for immobilized cells, while only 28.90% CGTase was produced with free cells. When palm curtain immobilized cells were reused at the 2th cycle, enzyme activities were increased from 5003 to 5132 U/mL, which was mainly due to physical adsorption of cells on palm curtain with special concave surface structure. Furthermore, conditions for expanded culture of immobilized cells in a 5 L fermentation tank were optimized through specific rotation speed procedure (from 350 r/min to 450 r/min with step size of 50 r/min) and fixed ventilation capacity (4.5 L/min), relations between biomass, enzyme activity, pH, and oxygen dissolution was investigated, and the fermentation periods under the two conditions were both 4 h shorter. Compared with free cell, immobilized cell was more stable, effective, and had better application potential in industries.

Keywords: CGTase; cell immobilization; cyclodextrin; fermentation; palm curtain.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
SEM images of different matrices (Page: 3A,B) initial palm curtain with magnifications of ×5000 and ×1000, respectively; (Page: 3C,D) Bacillus circulans ATCC 21783 immobilized on palm curtain with magnifications of ×10,000 and ×5000, respectively; (E) initial loofa sponge with magnification of ×500; (F) Bacillus circulans ATCC 21783 immobilized on loofa sponge with magnification of ×5000.
Figure 2
Figure 2
Cyclodextrin production by free and palm curtain immobilized Bacillus circulans ATCC 21783.
Figure 3
Figure 3
Effect of immobilization time (A), initial biomass (B), temperature (C), and pH (D) on the production of palm curtain immobilized Bacillus circulans ATCC 21783 enzyme activity.
Figure 4
Figure 4

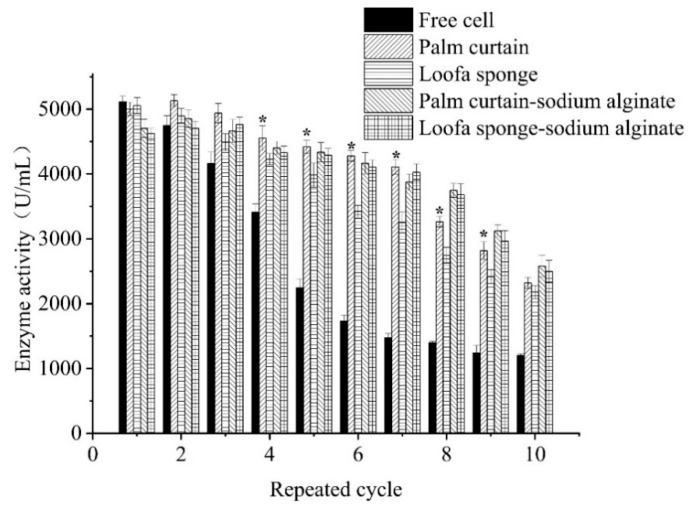

Reusability of different matrices immobilized Bacillus circulans ATCC 21783 (* means the significant difference between palm curtain and loofa sponge, p < 0.05).
Figure 5
Figure 5

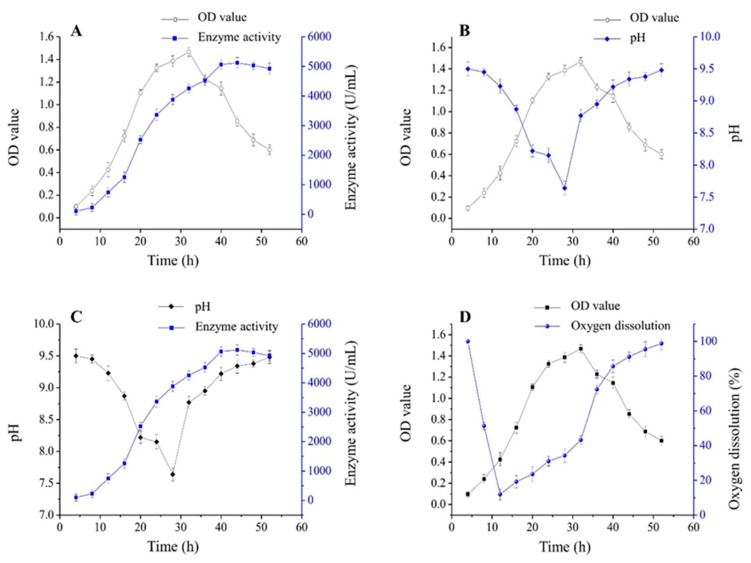

Biomass, enzyme activity, pH, and oxygen dissolution during cultivation of palm curtain immobilized Bacillus circulans ATCC 21783 in a 5 L tank (A) relation of biomass and enzyme activity; (B) relation of biomass and pH; (C) relation of enzyme activity and pH; (D) relation of biomass and oxygen dissolution.
Figure 6
Figure 6
Biomass, oxygen dissolution, enzyme activity and pH variation of palm curtain immobilized Bacillus circulans ATCC 21783 by increasing the rotation speed (A) relation of biomass and oxygen dissolution; (B) relation of biomass and enzyme activity; (C) relation of biomass and pH; (D) relation of pH and enzyme activity.
Figure 7
Figure 7
Effects of ventilation on enzyme activity during cultivation of palm curtain immobilized Bacillus circulans ATCC 21783 in a 5 L tank.
