Ultrasound-guided vessel puncture: calling for Pythagoras' help

Gaël Piton  1   2 , Gilles Capellier  3   4 , Hadrien Winiszewski  3   4
Affiliations
Editorial

Ultrasound-guided vessel puncture: calling for Pythagoras' help

Gaël Piton et al. Crit Care. .
No abstract available

Keywords: Central venous catheter placement; Technique; Ultrasonography; Vessel puncture.

PubMed Disclaimer

Conflict of interest statement

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Figures

Fig. 1
Fig. 1

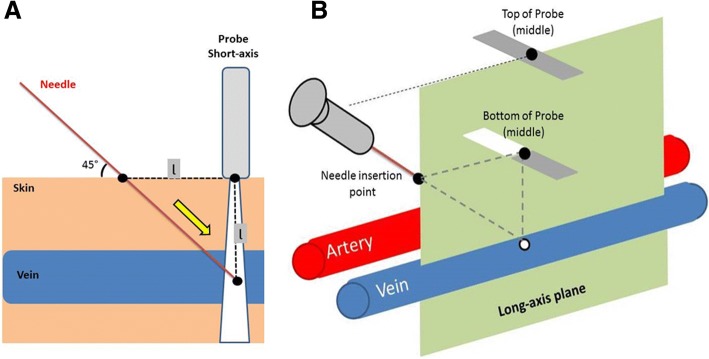

Global overview of ultrasound-guided vessel puncture and use of the isosceles right triangle. a Taking a distance between the probe and the needle insertion point equal to the depth of the vessel, a probe perpendicular to the skin, and an angle between the skin and the needle of 45°, the third angle will be automatically positioned into the vein. Three points build an isosceles right triangle: the needle insertion point, the middle of the probe on the skin interface, and the center of the vein under the probe. b The long-axis plane, which passes through the length of the vessel, corresponds to the view obtained in the in-plane technique with the vessel in the long-axis. Three points determine the long-axis plane: the needle insertion point, identified by inserting the needle in the skin just above the vessel, the vessel being viewed in the long axis; the middle of the probe on the skin, the vessel being visualized at the center of the ultrasound screen in the short axis; the middle of the probe’s top, the probe being perpendicular to the skin. The operator should attempt to maintain the syringe in the axis of the probe top (dotted line)
