Potential Causes of Titanium Particle and Ion Release in Implant Dentistry: A Systematic Review

Abstract

Implant surface characteristics, as well as physical and mechanical properties, are responsible for the positive interaction between the dental implant, the bone and the surrounding soft tissues. Unfortunately, the dental implant surface does not remain unaltered and changes over time during the life of the implant. If changes occur at the implant surface, mucositis and peri-implantitis processes could be initiated; implant osseointegration might be disrupted and bone resorption phenomena (osteolysis) may lead to implant loss. This systematic review compiled the information related to the potential sources of titanium particle and ions in implant dentistry. Research questions were structured in the Population, Intervention, Comparison, Outcome (PICO) framework. PICO questionnaires were developed and an exhaustive search was performed for all the relevant studies published between 1980 and 2018 involving titanium particles and ions related to implant dentistry procedures. Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines were followed for the selection and inclusion of the manuscripts in this review. Titanium particle and ions are released during the implant bed preparation, during the implant insertion and during the implant decontamination. In addition, the implant surfaces and restorations are exposed to the saliva, bacteria and chemicals that can potentially dissolve the titanium oxide layer and, therefore, corrosion cycles can be initiated. Mechanical factors, the micro-gap and fluorides can also influence the proportion of metal particles and ions released from implants and restorations.

Keywords: corrosion; dental implants; titanium particles; wear.

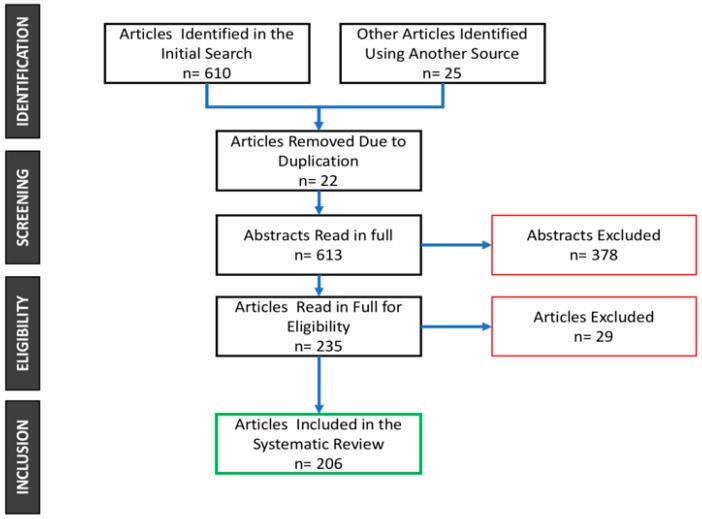

Figure 1

Preferred Reporting Items for Systematic Reviews (PRISMA) flow diagram of the screening and selection process.

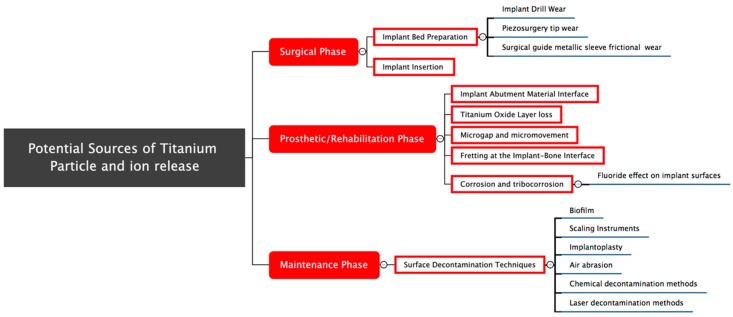

Figure 2

This systematic review found that titanium particles and ions can be released during the surgical, prosthetic and maintenance phases due to different causes during the life span of a dental implant. The rectangles filled in red are the three phases in implant dentistry procedures in which titanium particles and ions can be released. The rectangles with the red frame are procedures within the previous phases which resulted in titanium particles and ions release. The underlined sentences are the detailed sources or initiators of titanium particles and ions release.

Figure 3

Areas of wear of implant drills. Different drill designs present wear and particle loosening at different levels under the effects of axial and rotational forces. Twist drills suffer deformation, blunting and delamination of the drill tip (a), tip angles (b1 and b2), and cutting blades (c). Tapered drills suffer deformation, blunting and delamination of the drill tip (a), tip angle (b), and cutting blades (c). Stepped drills suffer deformation, blunting and delamination of the drill tip (a), tip angles (b), cutting blades (c) and step angles (d1, d2, d3). Thin red arrows are showing the blade areas suffering wear as well as the tip angles. Thick arrows are showing the tip of the drills suffering wear and deformation.

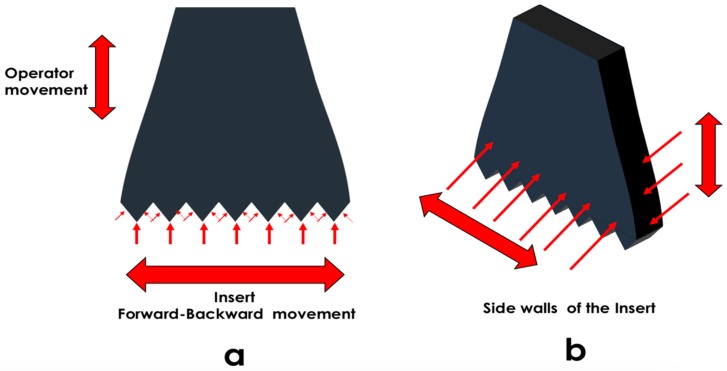

Figure 4

Areas of wear of piezosurgery inserts. The piezosurgery insert directions of movement: a vertical movement induced by the operator, and a minimal vertical displacement during the ultrasonic movement in conjunction with a horizontal component produced by oscillation of the tip. (a) The piezosurgery insert oscillates in a forward-backward movement. The insert tip and the sides of the tip suffer deformation, wear and particle detachment. (b) Additionally, the sidewalls and borders of the insert suffer deformation, wear and particle detachment. Short and long thing arrows are showing areas of angle and lateral wear and deformation. Thick arrows are showing the vertex of the tips suffering wear and deformation.

Figure 5

Piezosurgery tips used 1 time. The tips are made from different materials. (a1,a2) Stainless steel insert showing lateral wear of the active tip, abrasion and particle loosening at the flanks, deformation of the tip edges and material delamination. (b1,b2). Diamond-coated insert showing wear at the sides and empty spaces representing particle loosening. (c1,c2) Gold nitride-coated insert with several areas at the flanks, tips and sides of the tips showing excessive wear, particle delamination and deformation. The red arrows are showing the areas of wear, delamination and deformation suffered by piezosurgery inserts. The red asterisk is showing particle detachment from diamond coated piezosurgery inserts.
