. 2016 Dec;6(4):198-201.
doi: 10.1016/j.afjem.2016.07.001. Epub 2016 Sep 6.

Focused assessment with sonography for HIV-associated tuberculosis (FASH) case series from a Rwandan district hospital

Gabin Mbanjumucyo  1 , Patricia C Henwood  2
Affiliations

Focused assessment with sonography for HIV-associated tuberculosis (FASH) case series from a Rwandan district hospital

Gabin Mbanjumucyo et al. Afr J Emerg Med. 2016 Dec.

Abstract
in English, Finnish

Introduction: The majority of HIV-TB co-infection worldwide is reported in Africa. The risk of developing extra-pulmonary tuberculosis (EPTB) increases as immune deficiency progresses but is difficult to diagnose. Point-of-care ultrasonography (POCUS) can be an effective adjunct to identify and treat EPTB-associated findings using the focused assessment with sonography for HIV-associated TB (FASH) protocol.

Case report: Three HIV-infected patients without known history of EPTB presented to a Rwandan district hospital with fever and unclear infection. Initial testing did not reveal a source. Each patient was then evaluated with the FASH protocol by a Rwandan emergency physician with POCUS training. All patients had findings suggestive of EPTB by ultrasound. Anti-TB treatment was initiated, and all subsequently demonstrated symptom improvement.

Discussion: This case series demonstrates the additional clinical information obtained. It describes how management was changed using POCUS and the FASH in a resource-limited setting in Rwanda and calls for further FASH protocol validation studies.

Introduction: La majorité des co-infections VIH-TB dans le monde sont signalées en Afrique. Le risque de développer une tuberculose extra-pulmonaire (EPTB) augmente à mesure qu’évolue le déficit immunitaire, mais elle est difficile à diagnostiquer. L’échographie là où les soins sont prodigués (POCUS) peut être un complément efficace pour identifier et traiter des résultats liés à l’EPTB à l’aide du protocole d’évaluation ciblée utilisant l’échographie de la tuberculose associée au VIH (FASH).

Rapport de cas: Trois patients infectés par le VIH sans antécédents connus d’EPTB se sont présentés à un hôpital de district rwandais avec de la fièvre et une infection indéterminée. Les tests initiaux n’ont pas révélé d’origine. Chaque patient a ensuite été évalué par le biais du protocole de FASH par un médecin d’urgence rwandais formé à la POCUS. Tous les patients présentaient des signes évocateurs de l’EPTB à l’échographie. Le traitement anti-TB a été initié, et tout a démontré par la suite une amélioration des symptômes.

Discussion: Cette série de cas confirme les informations cliniques supplémentaires obtenues. Elle décrit comment la prise en charge a été modifiée en utilisant la POCUS et la FASH dans un contexte de ressources limitées au Rwanda et appelle à d’autres études de validation du protocole de la FASH.

Keywords: Case report; Case series; Emergency ultrasound; Extra-pulmonary tuberculosis; HIV; Infectious disease; Point-of-care ultrasound; Tropical disease; Tuberculosis; Ultrasound.

PubMed Disclaimer

Figures

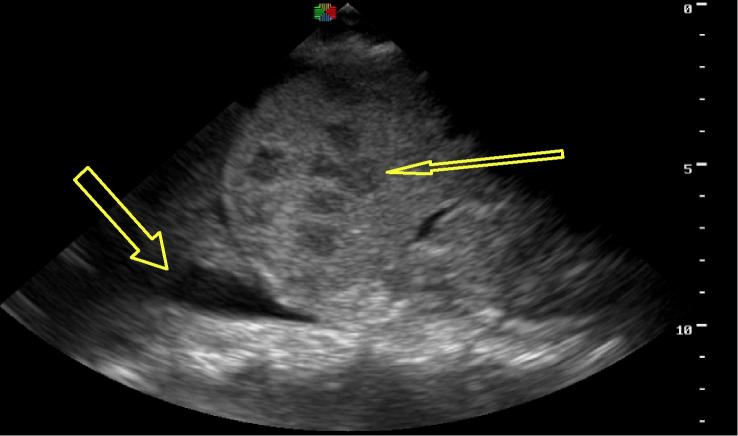

Figure 1
Figure 1
Pleural effusion and microabscesses in spleen, patient from Case 1.

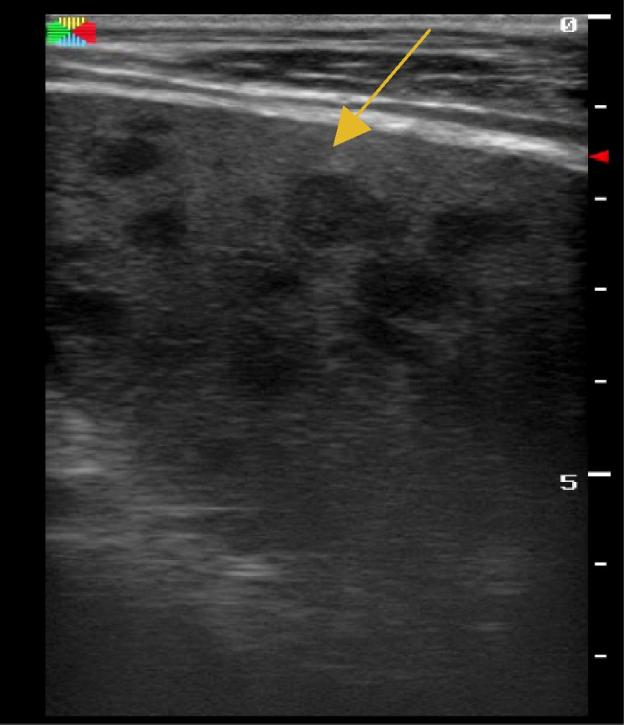

Figure 2
Figure 2
Splenic microabscesses seen more easily with high frequency ultrasound transducer, patient from Case 2.

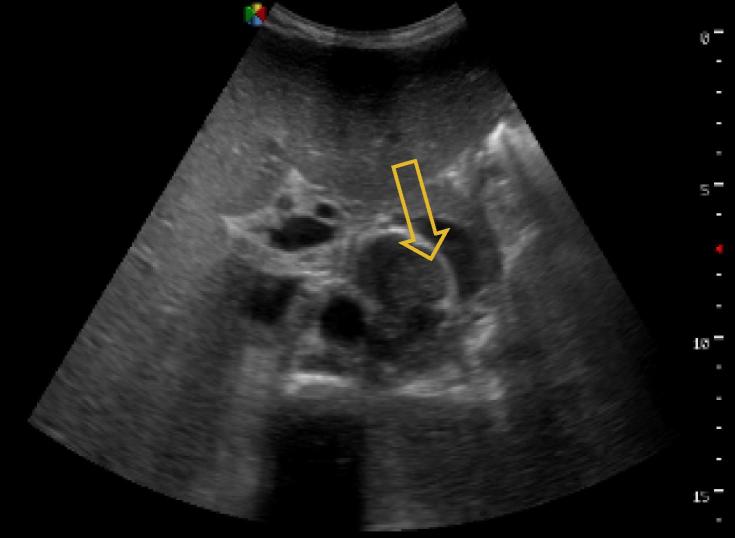

Figure 3
Figure 3
Enlarged para-aortic lymph nodes, patient from Case 2.

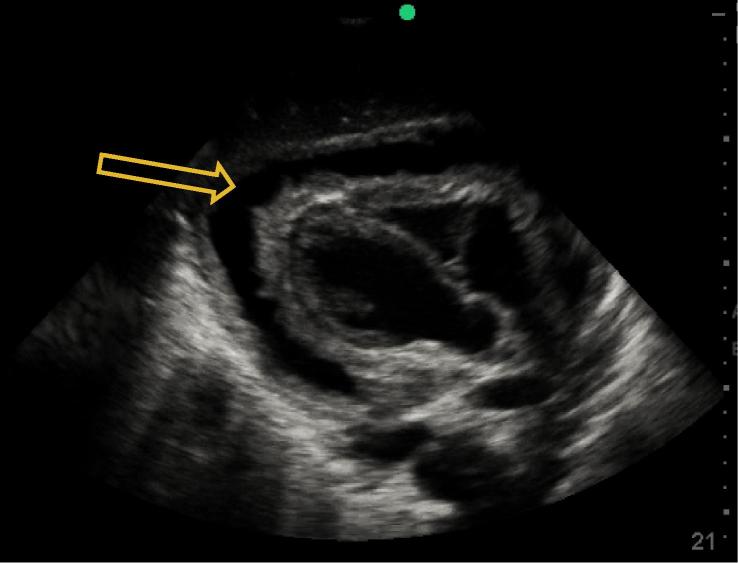

Figure 4
Figure 4
Circumferential pericardial effusion, patient from Case 3.

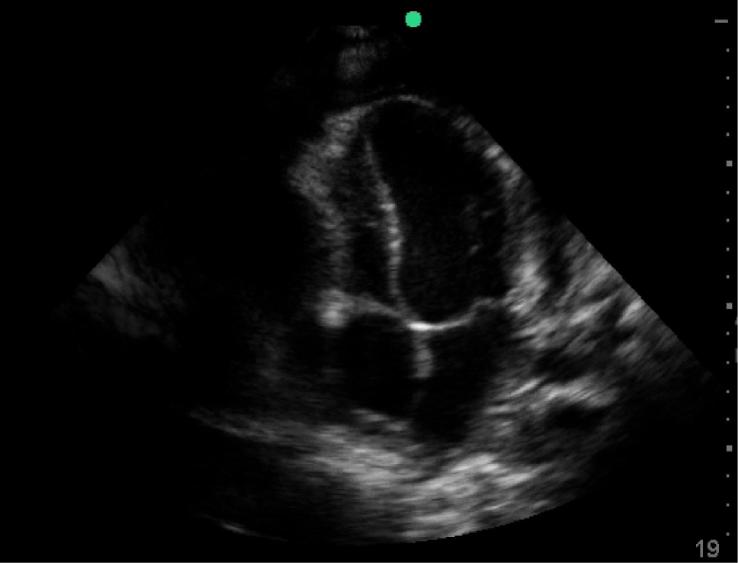

Figure 5
Figure 5
Pericardial effusion with right ventricular collapse, patient from Case 3.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. World Health Organization. Global tuberculosis report 2014. WHO/HTM/TB/2014.08, <http://apps.who.int/iris/bitstream/10665/137094/1/9789241564809_eng.pdf> [last accessed 20th January 2016].
    1. Sharma S.K., Mohan A. Extrapulmonary tuberculosis. Indian J Med Res. 2004;120(4):316–353. - PubMed
    1. Heller T., Wallrauch C., Goblirsch S. Focused assessment with sonography for HIV-associated tuberculosis (FASH): a short protocol and a pictorial review. Crit Ultrasound J. 2012;4(1):1. - PMC - PubMed
    1. Patel M.N., Beningfield S., Burch V. Abdominal and pericardial ultrasound in suspected extrapulmonary or disseminated tuberculosis. S Afr Med J. 2011;101(1):39–42. < http://www.ncbi.nlm.nih.gov/pubmed/21626980> [last accessed 5th November 2015] - PubMed
    1. Republic of Rwanda Ministry of Health Annual Report July 2012–June 2013. <http://www.moh.gov.rw/fileadmin/templates/Press_release/MoH_Annual_Repor... [last accessed 20th January 2016].
