. 2018 Nov 20;15(1):109.
doi: 10.1186/s12984-018-0453-0.

Overground walking with a robotic exoskeleton elicits trunk muscle activity in people with high-thoracic motor-complete spinal cord injury

Raed A Alamro  1   2   3 , Amanda E Chisholm  1   2 , Alison M M Williams  1   2 , Mark G Carpenter  2 , Tania Lam  4   5
Affiliations

Overground walking with a robotic exoskeleton elicits trunk muscle activity in people with high-thoracic motor-complete spinal cord injury

Raed A Alamro et al. J Neuroeng Rehabil. .

Abstract

Background: The trunk muscles are critical for postural control. Recent neurophysiological studies have revealed sparing of trunk muscle function in individuals with spinal cord injury (SCI) classified with thoracic or cervical motor-complete injuries. These findings raise the possibility for recruiting and retraining this spared trunk function through rehabilitation. Robotic gait training devices may provide a means to promote trunk muscle activation. Thus, the objective of this study was to characterize and compare the activation of the trunk muscles during walking with two robotic gait training devices (Ekso and Lokomat) in people with high thoracic motor-complete SCI.

Methods: Participants with chronic motor-complete paraplegia performed 3 speed-matched walking conditions: Lokomat-assisted walking, Ekso-assisted walking overground, and Ekso-assisted walking on a treadmill. Surface electromyography (EMG) signals were recorded bilaterally from the rectus abdominis (RA), external oblique (EO), and erector spinae (ES) muscles.

Results: Greater recruitment of trunk muscle EMG was elicited with Ekso-assisted walking compared to the Lokomat. Similar levels of trunk EMG activation were observed between Ekso overground and Ekso on the treadmill, indicating that differences between Ekso and Lokomat could not be attributed to the use of a hand-held gait aid. The level of trunk EMG activation during Lokomat walking was not different than that recorded during quiescent supine lying.

Conclusions: Ekso-assisted walking elicits greater activation of trunk muscles compared to Lokomat-assisted walking, even after controlling for the use of hand-held assistive devices. The requirement of the Ekso for lateral weight-shifting in order to activate each step could lead to better postural muscle activation.

Keywords: EMG; Exoskeletons; Spinal cord injury; Trunk muscles.

PubMed Disclaimer

Conflict of interest statement

Ethics approval and consent to participate

All participants provided written informed consent and all procedures were approved by the UBC Clinical Research Ethics Board.

Consent for publication

All participants provided written informed consent to publish the data.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Figures

Fig. 1

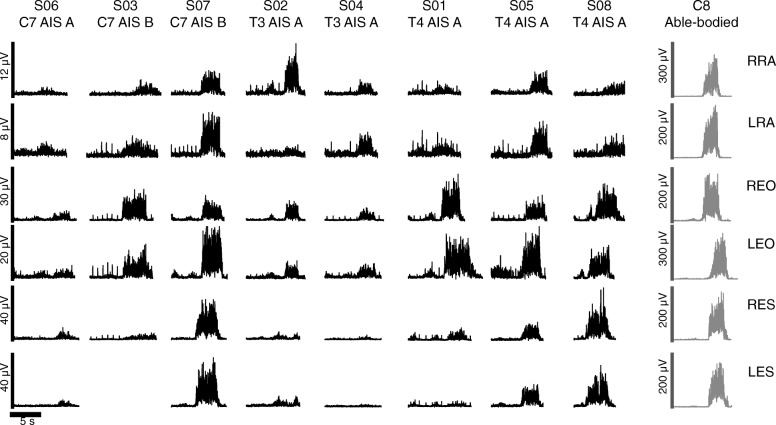

Fig. 1
Trunk muscle EMG activity during maximum voluntary contractions. Filtered and rectified EMG activity recorded from the trunk muscles during the maximum voluntary contraction (MVC) trials in each SCI subject (black) and a representative able-bodied subject (C8) (grey). SCI subjects are plotted in sequence from left to right according to their injury level from highest to lowest. R/L = right/left, RA = Rectus Abdominis, EO = External Oblique, and ES = Erector Spinae. (Left ES data was not available from subject S03 due to technical error)
Fig. 2

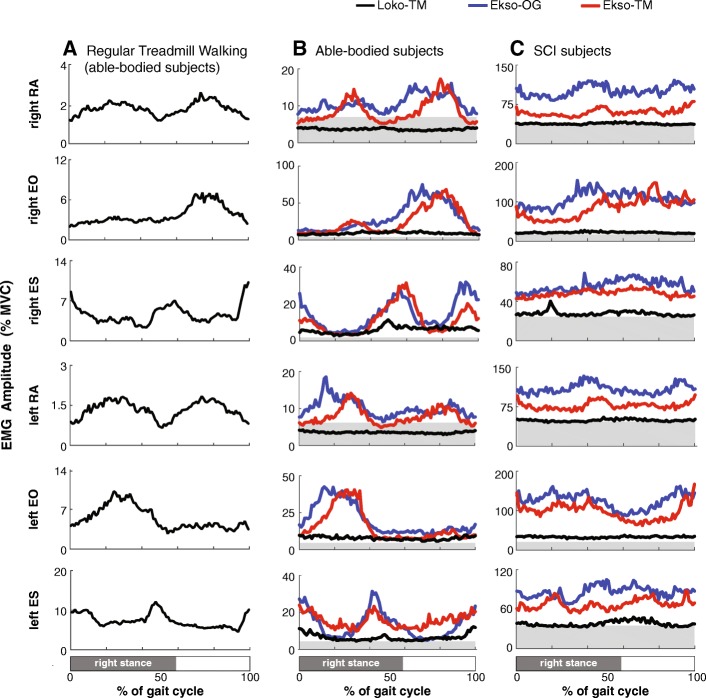

Fig. 2
Trunk muscle activation patterns during robotic-assisted walking in able-bodied and SCI subjects. a) Mean trunk muscle activity patterns averaged across able-bodied participants during walking on treadmill with an average speed of 1.2 km/h. b) Mean trunk muscle activity patterns averaged across able-bodied participants during walking in the Lokomat (Loko-TM), Ekso on treadmill (Ekso-TM) and Ekso overground (Ekso-OG) with an average matched speed across conditions of 1.26 km/h. All plots represent the mean trunk muscle activity normalized to 100% of the gait cycle (n > 20 steps each plot for each subject). Grey shaded areas in each plot represent baseline EMG activity recorded in supine position (BAS). c) Mean trunk muscle activity patterns averaged across all SCI subjects during the same walking conditions with an average matched speed across conditions of 1.16 km/h. RA = Rectus Abdominis, EO = External Oblique, and ES = Erector Spinae
Fig. 3

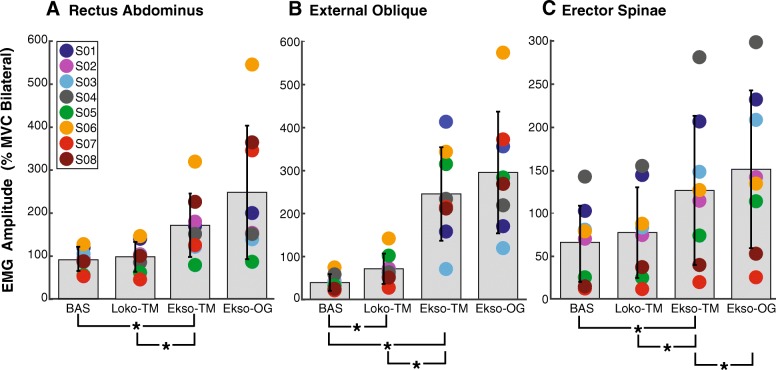

Fig. 3
Trunk muscle EMG amplitudes across baseline and walking conditions. Comparison of EMG amplitude recorded during quiet supine lying and robot-assisted walking conditions. The average RMS EMG amplitude in rectus abdominis (a) external oblique (b), and erector spinae (c) during quiet supine lying (BAS), Lokomat-assisted walking (Loko-TM), Ekso on the treadmill (Ekso-TM) and Ekso overground walking (Ekso-OG) are plotted for each SCI participant (represented by different coloured circles). Grey bars represent the RMS EMG amplitude averaged across all SCI participants and error bars represent the standard deviation. Values from left and right homologous muscles were expressed as % MVC and summed bilaterally. * = p < 0.0125
Fig. 4

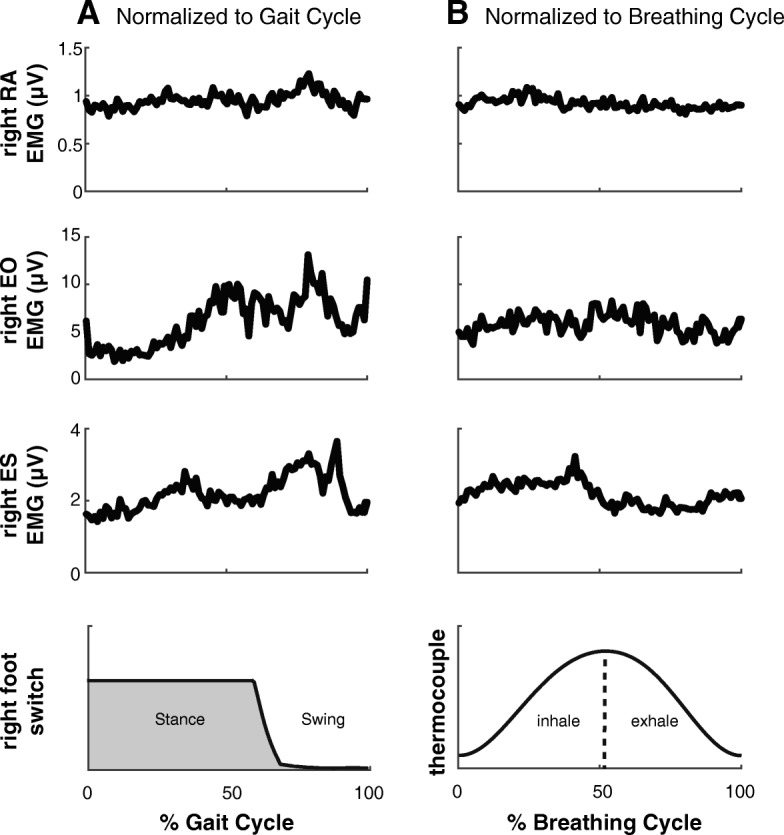

Fig. 4
Trunk muscle activity normalized to gait cycle and breathing cycle. SCI subject (S05) average trunk muscles activity (Rectus Abdominis (RA), external oblique (EO) and erector spinae (ES)) normalized to the gait cycle (a) vs. normalized to the breathing cycle (b) during Ekso-TM
Fig. 5

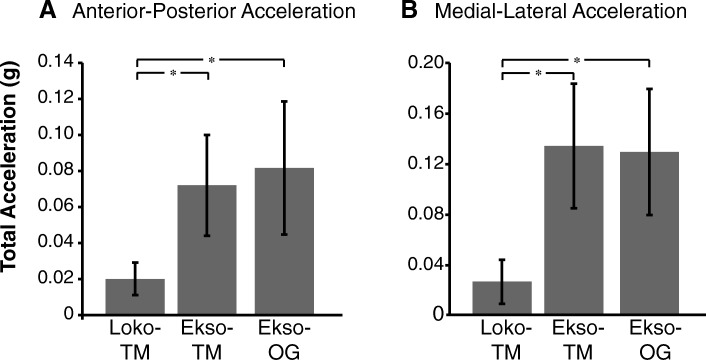

Fig. 5
Total acceleration of the trunk across robotic-assisted walking conditions. a) Mean total acceleration of the trunk for all SCI subjects across the 3 robotic-assisted walking conditions: Lokomat (Loko-TM), Ekso on treadmill (Ekso-TM) and Ekso overground (Ekso-OG). b) Total medial-lateral trunk acceleration during the same walking conditions. * = p < 0.001
See this image and copyright information in PMC

References

    1. Chen C-L, Yeung K-T, Bih L-I, Wang C-H, Chen M-I, Chien J-C. The relationship between sitting stability and functional performance in patients with paraplegia. Arch Phys Med Rehabil. 2003;84:1276–1281. doi: 10.1016/S0003-9993(03)00200-4. - DOI - PubMed
    1. Janssen-Potten YJ, Seelen HA, Drukker J, Reulen JP. Chair configuration and balance control in persons with spinal cord injury. Arch Phys Med Rehabil. 2000;81:401–408. doi: 10.1053/mr.2000.3859. - DOI - PubMed
    1. Scivoletto G, Romanelli A, Mariotti A, Marinucci D, Tamburella F, Mammone A, et al. Clinical factors that affect walking level and performance in chronic spinal cord lesion patients. Spine. 2008;33:259–264. doi: 10.1097/BRS.0b013e3181626ab0. - DOI - PubMed
    1. Seelen HA, Potten YJ, Huson A, Spaans F, Reulen JP. Impaired balance control in paraplegic subjects. J Electromyogr Kinesiol. 1997;7:149–160. doi: 10.1016/S1050-6411(97)88884-0. - DOI - PubMed
    1. Kirshblum SC, Burns SP, Biering-Sørensen F, Donovan W, Graves DE, Jha A, et al. International standards for neurological classification of spinal cord injury (revised 2011) J Spinal Cord Med. 2011;34:535–546. doi: 10.1179/204577211X13207446293695. - DOI - PMC - PubMed
