. 2018 Nov 15:5:209-214.
doi: 10.1016/j.ejro.2018.10.002. eCollection 2018.

Evaluation of ADCratio on liver MRI diffusion to discriminate benign versus malignant solid liver lesions

Tarun Pankaj Jain  1   2 , Wen Ter Kan  2 , Sean Edward  2 , Helen Fernon  1 , Renuvathy Kansan Naider  3
Affiliations

Evaluation of ADCratio on liver MRI diffusion to discriminate benign versus malignant solid liver lesions

Tarun Pankaj Jain et al. Eur J Radiol Open. .

Abstract

Purpose: The aim of this project is to investigate the usefulness of the absolute liver lesion ADC value and ratio of Apparent diffusion coefficient (ADC) values of a liver lesion and liver parenchyma to discriminate between a benign and malignant lesion.

Methods: Liver MRI scans performed between January 2009 and June 2015 were retrospectively analysed. Scans were performed on either a 1.5 T or 3 T MRI unit. The type of liver lesion (benign or malignant) was determined by its radiological appearance, histology result and clinical management. Lesions with undetermined diagnosis or MRI studies degraded by artifacts were excluded. Liver cysts were also excluded from the analysis. ADC value of a lesion and liver parenchyma was measured and ADCratio was calculated. The values were analysed using independent samples t-test Results:Data set contained 39 benign lesions and 36 malignant lesions. Mean ADC value for benign lesions was 1678, and the mean value for malignant lesions was 1097 with a statistically significant difference of p < 0.001. All lesions with ADC value below 955 were malignant, while all lesions with ADC value above 1880 were benign. ADC value of 1260 was identified as the best available cut-off value for differentiating benign and malignant lesions, achieving sensitivity of 92%, specificity of 80% and an overall accuracy of 89%. The mean lesion to liver ADCratio for benign lesions was 1.3467 and for malignant lesions was 0.9038 with a statistically significant difference of p < 0.001. All lesions with ADCratio measuring <0.9 were malignant while lesions with ADCratio>1.5 were benign. ADCratio of 1.1 was identified statistically as the best available cut-off value for differentiating benign from malignant lesions, with sensitivity of 82%, specificity of 86% and an overall accuracy of 92%.

Conclusion: Our dataset indicates that lesion to background liver ADCratio is superior in discriminating between benign and malignant focal lesions compared to absolute ADC values of the hepatic lesions.

Keywords: Apparent diffusion coefficient (ADC); Apparent diffusion coefficient ratio. (ADCratio); Benign; Liver lesion; Magnetic resonance imaging (MRI); Malignant.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1

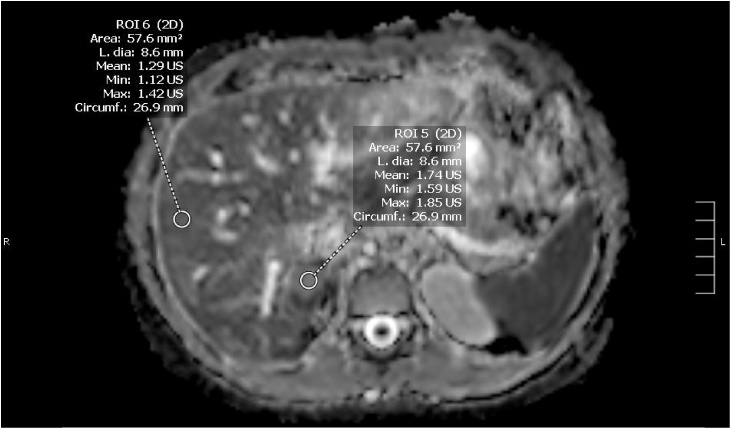

Example of lesion and liver ROIs acquired of a benign lesion (haemangioma).
Fig. 2
Fig. 2
Example of lesion and liver ROIs acquired of a malignant lesion (metastasis).
Fig. 3
Fig. 3
Spread of all malignant and benign lesions ADC ratio in the study.
Fig. 4
Fig. 4
Receiver operating curve demonstrating optimum ADC value cut-off.
Fig. 5
Fig. 5
ROC curve demonstrating optimum ADC ratio of 1.1 with Sens = 82% and Spec = 86%.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Caraiani C., Chiorean L., Fenesan D.I. Diffusion weighted magnetic resonance imaging for the classification of focal liver lesions as benign or malignant. J. Gastrointest. Liver Dis. 2015;9:309–317. - PubMed
    1. Galea N., Cantisani V., Taouli B. Liver lesion detection and characterization: role of diffusion-weighted imaging. J. Magn. Reson. Imaging. 2013;37:1260–1276. - PubMed
    1. Koh D.M., Collins D.J. Diffusion-weighted MRI in the body: applications and challenges in oncology. AJR Am. J. Roentgenol. 2007;188:1622–1635. - PubMed
    1. Filipe J.P., Curvo-Semedo L., Casalta-Lopes J., Marques M.C., Caseiro-Alves F. Diffusion-weighted imaging of the liver: usefulness of ADC values in the differential diagnosis of focal lesions and effect of ROI methods on ADC measurements. MAGMA. 2013;26:303–312. - PubMed
    1. Müller M.F., Prasad P., Siewert B., Nissenbaum M.A., Raptopoulos V., Edelman R.R. Abdominal diffusion mapping with use of a whole-body echo-planar system. Radiology. 1994;190:475–478. - PubMed
