. 2010 Jul 6;2(3):e147-e150.
doi: 10.1016/j.jccase.2010.05.011. eCollection 2010 Dec.

Brugada-type electrocardiogram in a patient with hypothyroidism

Kayano Taira  1 , Akihisa Fujino  1 , Tatsuya Watanabe  1 , Atsuhiro Ogyu  1 , Kouichi Ashikawa  1 , Wataru Shimizu  2
Affiliations

Brugada-type electrocardiogram in a patient with hypothyroidism

Kayano Taira et al. J Cardiol Cases. .

Abstract

We encountered a case of hypothyroidism showing Brugada-type electrocardiogram (ECG). A 52-year-old man was referred to our hospital in August 2009. Past medical history showed that liver dysfunction and face edema of unknown origin had been pointed out 1 year earlier. He was diagnosed with primary hypothyroidism at this admission. ECG exhibited first-degree atrio-ventricular block (0.24 s) and showed Brugada-type ST-segment elevation ≥2 mm followed by a negative T wave (coved type) in the V1, V2 leads. On genetic analysis, the patient demonstrated three common variants in the SCN5A gene, L1988R (c.5963 T>G), H558R (c.1673 A>G), and R1193Q (c.3578 G>A). Brugada-type ECG disappeared when the thyroid function normalized. We hypothesize that Brugada-type ECG in hypothyroidism is modified not only by a direct effect of thyroid hormone, but also due to SCN5A variants. Some SCN5A gene polymorphisms or mutations will induce changes on ECG when ion channels are affected by hypothyroidism.

Keywords: Brugada-type ECG; Hypothyroidism; Late potential; SCN5A genes.

PubMed Disclaimer

Figures

Figure 1
Figure 1

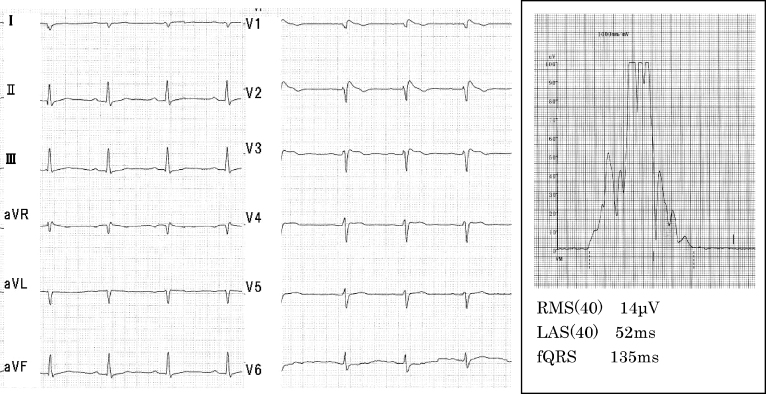

Electrocardiogram and signal-averaged electrocardiogram on admission. RMS(40), root mean square voltage of the terminal 40 ms in the filtered QRS complex; LAS(40), duration of low amplitude signals <40 μV in the terminal filtered QRS complex; fQRS, duration of the filtered QRS.
Figure 2
Figure 2
Clinical course. AST, aspartate transaminase; ALT, alanine transaminase; LDH, lactate dehydrogenase; γGTP, γ-glutamyl transpeptidase; CK, creatine kinase; TSH, thyroid stimulating hormone.
Figure 3
Figure 3
The electrocardiogram changed again to Brugada type after administration of the class Ic anti-arrhythmic drug, pilsicainide.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Kitahara A., Hirai R., Matsui Y., Ikeda Y., Nakamura H. A case of hypothyroidism with Brugada electrocardiographic waveforms. Endocr J. 2008;55:589–594. - PubMed
    1. Klein I., Danzi S. Thyroid disease and the heart. Circulation. 2007;116:1725–1735. - PubMed
    1. Priori S.G., Napolitano C., Gasparini M., Pappone C., Della Bella P., Giordano U., Bloise R., Giustetto C., De Nardis R., Grillo M., Ronchetti E., Faggiano G., Nastoli J. Natural history of Brugada syndrome. Circulation. 2002;105:1342–1347. - PubMed
    1. Poelzing S., Forleo C., Samodell M., Dudash L., Sorrentino S., Anaclerio M., Troccoli R., Iacoviello M., Romito R., Guida P., Chahine M., Pitzalis M., Deschênes I. SCN5A polymorphism restores trafficking of a Brugada syndrome mutation on a separate gene. Circulation. 2006;114:368–376. - PubMed
    1. Lizotte E., Junttila M.J., Dube M.P., Hong K., DE Benito B., Zutter M., Henkens S., Sarkozy A., Huikuri H.V., Towbin J., Vatta M., Brugada P., Brugada J., Brugada R. Genetic modulation of Brugada syndrome by a common polymorphism. J Cardiovasc Electrophysiol. 2009;20:1137–1141. - PubMed
