Comparative Study
. 2018 Nov 11:2018:4149107.
doi: 10.1155/2018/4149107. eCollection 2018.

Digital versus Traditional Workflow for Posterior Maxillary Rehabilitations Supported by One Straight and One Tilted Implant: A 3-Year Prospective Comparative Study

Francesco Ferrini  1 , Paolo Capparé  1 , Raffaele Vinci  1 , Enrico F Gherlone  1 , Gianpaolo Sannino  1
Affiliations
Comparative Study

Digital versus Traditional Workflow for Posterior Maxillary Rehabilitations Supported by One Straight and One Tilted Implant: A 3-Year Prospective Comparative Study

Francesco Ferrini et al. Biomed Res Int. .

Abstract

Objectives: The aim of the study was to evaluate and compare digital and traditional prosthetic workflow for posterior maxillary restorations supported by an upright and a distally tilted implant at 3-year follow-up.

Materials and methods: Twenty-four patients were treated in the posterior maxilla with 24 immediately loaded axial and 24 distally tilted implants supporting 3-unit or 4-unit screw-retained prostheses. Three months after initial loading patients were randomly stratified into two groups: definitive traditional impressions were carried out in the control group, while digital impressions were performed in the test group. The framework-implant connection accuracy was evaluated by means intraoral digital radiographs at 3, 6, 12, and 36 months of follow-up examinations. Outcome considerations comprised implant and prosthetic survival and success rates, marginal bone level changes, and required clinical time to take impressions.

Results: A total of 24 patients received immediately loaded screw-retained prostheses supported by an upright and a distally tilted implant (total 48 implants). No implant dropouts occurred, showing an overall survival rate of 100% for both groups. None of the 24 fixed prostheses were lost during the observation period (prosthetic survival rate of 100%). No statistically significant differences in marginal bone loss were found between control and test groups. The digital impression procedure required on average less clinical time than the conventional procedure.

Conclusions: Clinical and radiologic results suggest that digital impression is a predictable procedure for posterior maxillary restorations supported by an upright and a distally tilted implant.

PubMed Disclaimer

Figures

Figure 1
Figure 1
Presurgical radiographic view.
Figure 2
Figure 2
Prefabricated screw-retained, acrylic resin interim restorations were delivered immediately in all patients. The posterior implant was placed in second premolar position, distally tilted providing a first molar prosthetic emergence. The lack of parallelism between implants was compensated by means straight and angulated abutments.
Figure 3
Figure 3
In the test group scan bodies were splinted as impression guide for a digital implant level impression.

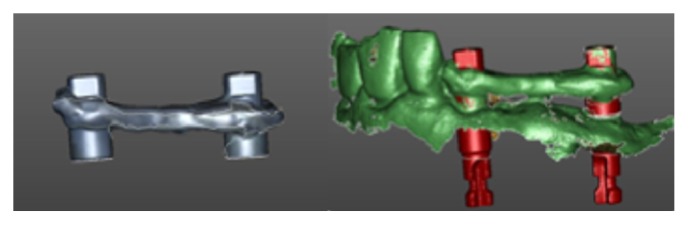

Figure 4
Figure 4
The impression guide was extraorally scanned by a laboratory scanner. A dental CAD software was then used to match the extraoral scanning to the intraoral impressions.

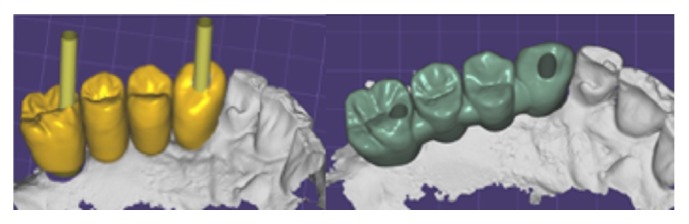

Figure 5
Figure 5
Digital planning. Prosthetic screw-access holes were placed in an occlusal or lingual location thanks to angulated abutments.
Figure 6
Figure 6
Occlusal view of definitive milled high-precision screw-retained zirconia-ceramic framework prosthesis screwed into the implants.
Figure 7
Figure 7
Vestibular and radiographic views of definitive restoration at 36-month follow-up.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Ulm C. W., Solar P., Gselimann B., Matejka M., Watzek G. The edentulous maxillary alveolar process in the region of the maxillary sinus - A study of physical dimension. International Journal of Oral and Maxillofacial Surgery. 1995;24(4):279–282. doi: 10.1016/S0901-5027(95)80029-8. - DOI - PubMed
    1. Atieh M. A., Zadeh H., Stanford C. M., Cooper L. F. Survival of short dental implants for treatment of posterior partial edentulism: a systematic review. The International Journal of Oral & Maxillofacial Implants. 2012;27(6):1323–1331. - PubMed
    1. McAllister B. S., Haghighat K. Bone augmentation techniques. Journal of Periodontology. 2007;78(3):377–396. doi: 10.1902/jop.2007.060048. - DOI - PubMed
    1. Bruschi G. B., Crespi R., Capparè P., Bravi F., Bruschi E., Gherlone E. Localized management of sinus floor technique for implant placement in fresh molar sockets. Clinical Implant Dentistry and Related Research. 2013;15(2):243–250. doi: 10.1111/j.1708-8208.2011.00348.x. - DOI - PubMed
    1. Esposito M., Grusovin M. G., Felice P., Karatzopoulos G., Worthington H. V., Coulthard P. The efficacy of horizontal and vertical bone augmentation procedures for dental implants—a Cochrane systematic review. European Journal of Oral Implantology. 2009;2(3):167–184. - PubMed
