. 2018 Dec 11:12:2581-2589.
doi: 10.2147/OPTH.S182022. eCollection 2018.

Agreement between retinal images obtained via smartphones and images obtained with retinal cameras or fundoscopic exams - systematic review and meta-analysis

Manuel Ap Vilela  1   2 , Felipe M Valença  1 , Pedro Km Barreto  1 , Carlos Ev Amaral  1 , Lúcia C Pellanda  1   2
Affiliations

Agreement between retinal images obtained via smartphones and images obtained with retinal cameras or fundoscopic exams - systematic review and meta-analysis

Manuel Ap Vilela et al. Clin Ophthalmol. .

Abstract

Background: Smartphone fundoscopy is a new option for visualizing the ocular fundus but must be validated before being included in population-based examinations. Our aim was to evaluate the quality of fundoscopic images obtained via smartphone and to compare their agreement with retinal camera images or clinical examination.

Methods: The database for this study included all observational studies with smartphone fundoscopy that have comparative analyses with the gold standard methods.

Results: Out of 121 potentially relevant studies, nine were included in this analysis, comprising a total of 4,219 eyes. Mean age was 56.6 years (SD±8.5). Combined kappa (κ) agreement statistics were equal to 77.77% (95% CI: 70.34%, 83.70%). No heterogeneity was measured by random effects (I 2=zero).

Conclusion: Fundoscopic images obtained by using smartphones have substantial agreement with gold standards for clinical or photographic exams.

Keywords: fundoscopy; ophthalmoscopy; smartphones.

PubMed Disclaimer

Conflict of interest statement

Disclosure The authors report no conflicts of interest in this work.

Figures

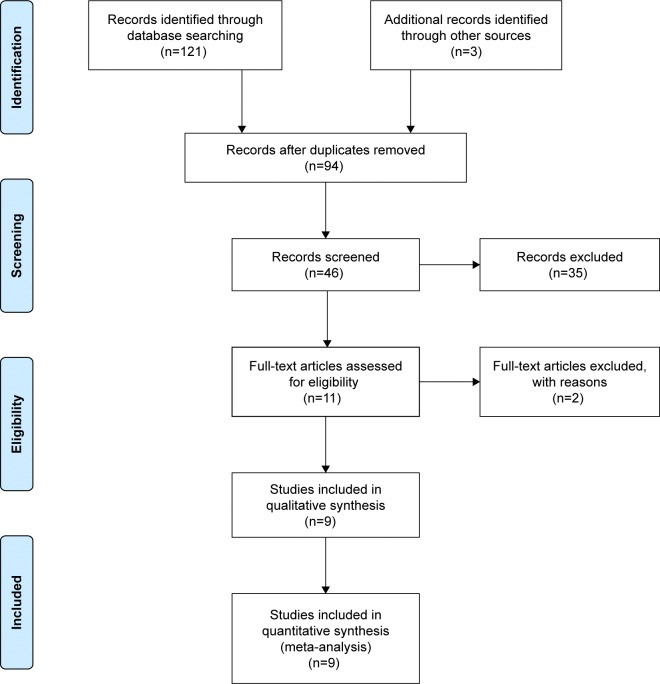

Figure 1
Figure 1
Flowchart of the studies.

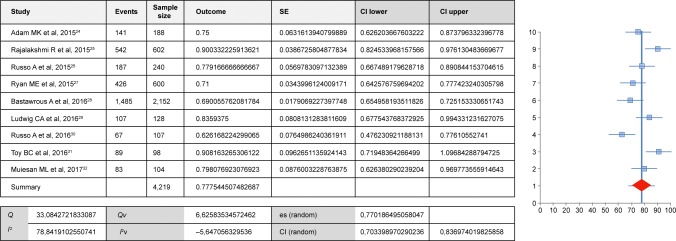

Figure 2
Figure 2
Forest plot of the agreement between smartphones and retinal cameras. Abbreviations: Q, heterogeneity among studies – fixed effects; I, between-studies variability (%)-fixed effects; Qv, heterogeneity among studies – random effects; Iv, between-studies variability (%)-random effects; es, effect summary; CI, confidence interval; SE, standard error; CI lower, lower confidence interval; CI upper, upper confidence interval.

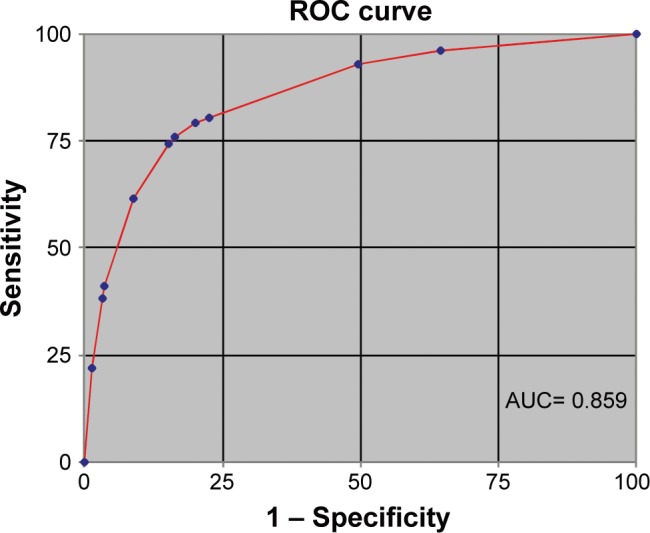

Figure 3
Figure 3
ROC curve. Note: Data from five studies.–,, Abbreviations: AUC, area under the curve; ROC, receiver operating characteristic.

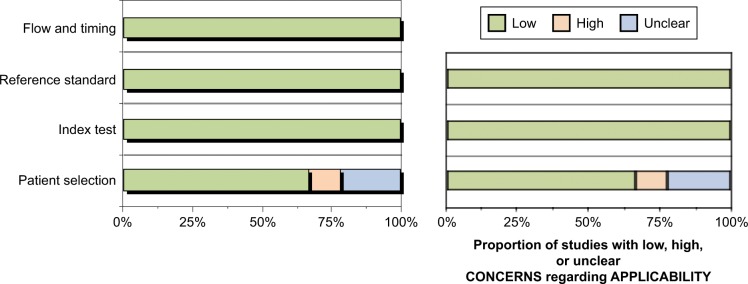

Figure 4
Figure 4
Assessment of risk of bias.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Number of smartphone users worldwide from 2014 to 2020 (in billions) [Accessed June 1, 2018]. Available from https://www.statista.com/statistics/330695/number-of-smartphone-users-wo...
    1. MEDLINE [database on the Internet] [Accessed June 1, 2018]. Available from: https://www.ncbi.nlm.nih.gov/pubmed.
    1. International prospective register of systematic reviews (PROSPERO) [database on the Internet] [Accessed June 1, 2018]. Available from: https://www.crd.york.ac.uk/prospero/#searchadvanced.
    1. Lamirel C, Bruce BB, Wright DW, Newman NJ, Biousse V. Nonmydriatic digital ocular fundus photography on the iPhone 3G: the FOTO-ED study. Arch Ophthalmol. 2012;130(7):939–940. - PMC - PubMed
    1. Kumar S, Wang EH, Pokabla MJ, Noecker RJ. Teleophthalmology assessment of diabetic retinopathy fundus images: smartphone versus standard office computer workstation. Telemed J E Health. 2012;18(2):158–162. - PubMed
