. 2018 Dec 19;6(12):2395-2401.
doi: 10.3889/oamjms.2018.371. eCollection 2018 Dec 20.

Computer-Aided Design/Computer-Aided Manufacturing Cutting Guides for Odontectomy of Deeply Impacted Mandibular Third Molars

Mamdouhh Ahmed  1 , Mariam Kamel Salah  1 , Nesrine Khairy  1
Affiliations

Computer-Aided Design/Computer-Aided Manufacturing Cutting Guides for Odontectomy of Deeply Impacted Mandibular Third Molars

Mamdouhh Ahmed et al. Open Access Maced J Med Sci. .

Abstract

Aim: To evaluate a new technique for surgical removal of deeply impacted mandibular third molars (DIMTM), using computer-guided cutting guide to maintain inferior alveolar nerve (IAN) integrity and the covering buccal bone.

Patients and methods: Eighteen cases indicated for removal of DIMTM. Cone-beam Computed Tomography (CBCTs) used to determine the tooth's relation to the IAN. Computer-guided software used for fabrication of surgical cutting guide stent to expose the impacted tooth and repositioning of bone after odontectomy without fixation. Clinical assessment included a neurosensory deficit of IAN, pain using a visual analogue scale (VAS), facial swelling, and maximal mouth opening (MMO). CBCTs were taken immediately and six months postoperatively to evaluate position and healing of bone.

Results: None of the patients showed a permanent neurological deficit of IAN while all patients showed normal parameters of pain, facial swelling and MMO.

Conclusion: this technique has shown the accurate determination of the bony window cuts with subsequent preservation of IAN and external oblique ridge.

Keywords: Computer guided cutting guide; Deeply impacted mandibular third molar (DIMTM); External oblique ridge; Inferior alveolar nerve (IAN) injury.

PubMed Disclaimer

Figures

Figure 1
Figure 1

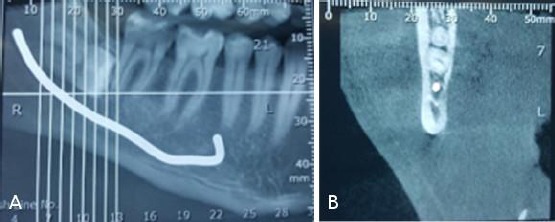

A) and B) Radiographic pictures of pre-operative CBCTs to determine the position of the impacted molar about the IAN
Figure 2
Figure 2

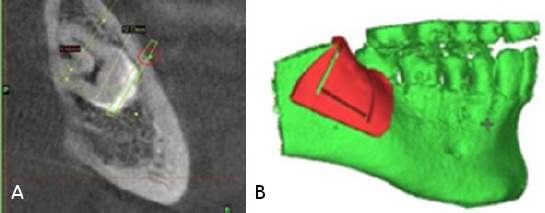

A) CBCT as DICOM files with virtual surgical planning determining the vertical cutting plans; B) Matic software with bone – borne cutting guide with the virtual cutting slots
Figure 3
Figure 3

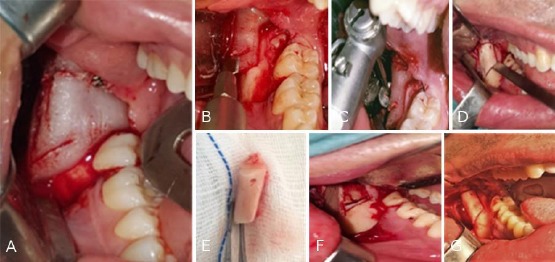

A) The surgical cutting guide in place; B) the reciprocating saw; C) The FRIOS micro saw disc; D) The bony window cuts and the chisel for splitting the segment; E) The osteotomized bony segment; F) The impacted molar with the furcation after separation; G) The repositioning of the osteotomized bony segment after odontectomy
Figure 4
Figure 4

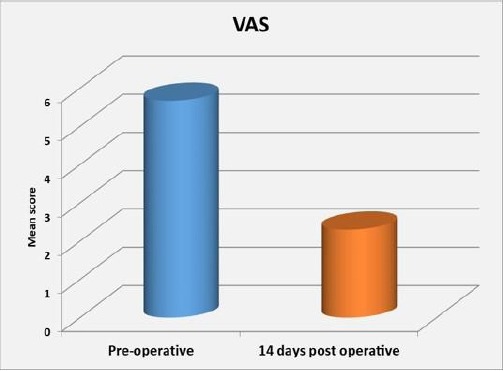

Column chart showing mean VAS score pre-and post-operatively
Figure 5
Figure 5

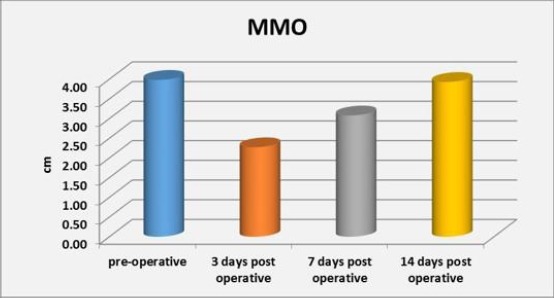

Column chart showing mean MMO (cm) pre-and post-operatively
Figure 6
Figure 6

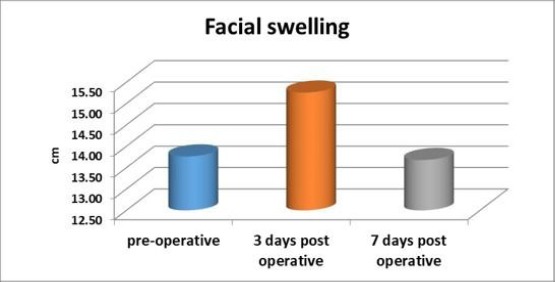

Column chart showing mean facial swelling (cm) pre-and post-operatively
Figure 7
Figure 7

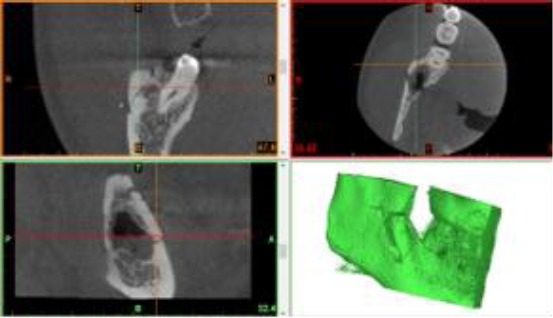

Immediate postoperative CBCTs radiograph
Figure 8
Figure 8

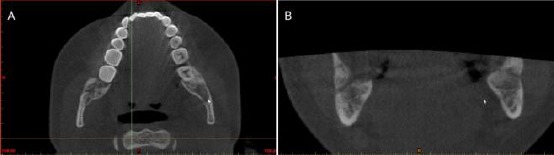

A), B) CBCTs; A) axial and B) coronal cuts 6 months postoperative showing normal bone healing
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Motamedi K, Hosein M. A Textbook of Advanced Oral and Maxillofacial Surgery Complications Following Surgery of Impacted Teeth and Their Management. 2013
    1. Divya T, Themozhi MS. Third molar impaction- a review. J Pharm Sci Res. 2014;6(11):363–367.
    1. Juodzbalys G, Daugela P. Mandibular third molar impaction: review of literature and a proposal of a classification. J Oral Maxillofac Res. 2013;4(2):e1. PMid:24422029 PMCid: PMC3886113. - PMC - PubMed
    1. Popli G, Kiran D.N, Iyer N, Sethi S, Bansal V, Bansal A. Influence of Pederson score and its constitutional anatomical parameters to predict the postoperative morbidity after Lower Third Molar Removal: a prospective cohort study. Am J Oral Maxillofac Surg. 2014;2(1):7–14.
    1. Santosh P. Impacted mandibular third molars: Review of literature and a proposal of a combined clinical and radiological classification. Ann Med Health Sci Res. 2015;5(4):229. https://doi.org/10.4103/2141-9248.160177 PMid:26229709 PMCid: PMC4512113. - PMC - PubMed
