. 2019 Jan 3;34(3):e15.
doi: 10.3346/jkms.2019.34.e15. eCollection 2019 Jan 21.

New Viewpoint of Surface Anatomy Using the Curved Sectional Planes of a Male Cadaver

Koojoo Kwon  1 , Byeong-Seok Shin  2 , Min Suk Chung  3 , Beom Sun Chung  3
Affiliations

New Viewpoint of Surface Anatomy Using the Curved Sectional Planes of a Male Cadaver

Koojoo Kwon et al. J Korean Med Sci. .

Abstract

Background: The curved sectional planes of the human body can provide a new approach of surface anatomy that the classical horizontal, coronal, and sagittal planes cannot do. The purpose of this study was to verify whether the curved sectional planes contribute to the morphological comprehension of anatomical structures.

Methods: By stacking the sectioned images of a male cadaver, a volume model of the right half body was produced (voxel size 1 mm). The sectioned images with the segmentation data were also used to build another volume model. The volume models were peeled and rotated to be screen captured. The captured images were loaded on user-friendly browsing software that had been made in the laboratory.

Results: The browsing software was downloadable from the authors' homepage (anatomy.co.kr). On the software, the volume model was peeled at 1 mm thicknesses and rotated at 30 degrees. Since the volume models were made from the cadaveric images, actual colors of the structures were displayed in high resolution. Thanks to the segmentation data, the structures on the volume model could be automatically annotated. Using the software, the sternocleidomastoid muscle and the internal jugular vein in the neck region, the cubital fossa in the upper limb region, and the femoral triangle in the lower limb region were observed to be described.

Conclusion: For the students learning various medical procedures, the software presents the needed graphic information of the human body. The curved sectional planes are expected to be a tool for disciplinary convergence of the sectional anatomy and surface anatomy.

Keywords: Cadaver; Cross-Sectional Anatomy; Education; Three-Dimensional Imaging; Visible Human Projects.

PubMed Disclaimer

Conflict of interest statement

Disclosure: The authors have no potential conflicts of interest to disclose.

Figures

Fig. 1
Fig. 1. Two-dimensional images of anatomical structures. (A) A horizontal sectioned image of male cadaver. (B) The sectioned image overlapped with the color-filled image made from segmentation.
Fig. 2
Fig. 2. Unpeeled volume model of right side body. Right upper limb is detached from the rest of the body. (A) Lateral view. (B) Medial view.
Fig. 3
Fig. 3. Operation of the browsing software of the peeled volume model. (A) Anterior view. (B) Rotated model. (C) More peeled model with the name of a pointed structure. (D) Color-filled model.
Fig. 4

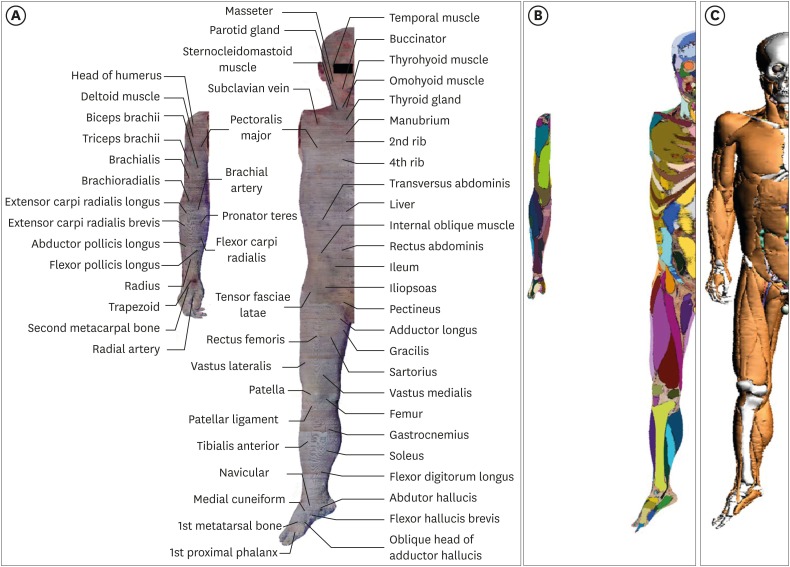

Fig. 4. Collection of models made from an identical cadaver. (A) Unpeeled volume model with the underlying structures labeled manually. (B) Peeled color-filled volume model. (C) Surface models.
Fig. 5

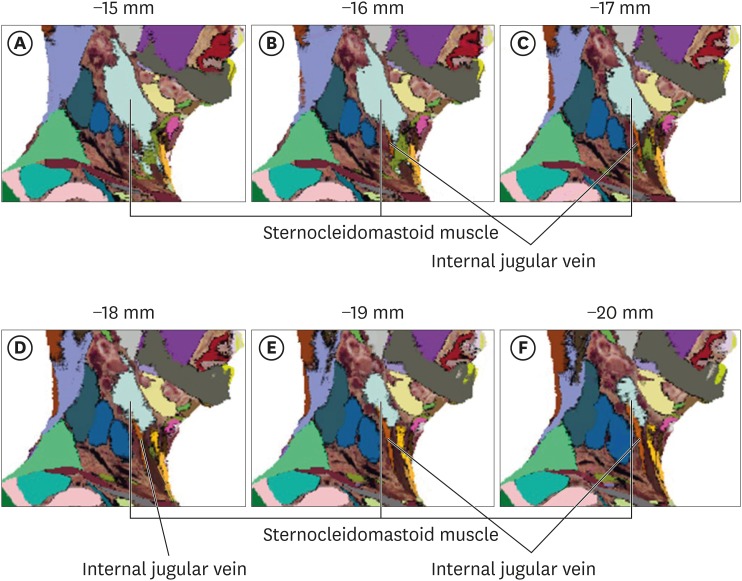

Fig. 5. Lateral views of volume model (right side of neck). (A) 15 mm-peeled model. (F) 20 mm-peeled model.
Fig. 6
Fig. 6. Anterior view of volume models of the right cubital fossa. (A) 4 mm-peeled model made from sectioned images. (B) 5 mm-peeled volume made from color-filled images.
Fig. 7
Fig. 7. Volume models presenting the pelvis region. (A) Anterior view of 21 mm-peeled color-filled volume model of right femoral triangle. (B) Posterior view of 45 mm-peeled color-filled volume model of the right gluteal region that is overlapped by the unpeeled volume model.
See this image and copyright information in PMC
