Skip to main page content
U.S. flag

An official website of the United States government

Dot gov

The .gov means it’s official.
Federal government websites often end in .gov or .mil. Before sharing sensitive information, make sure you’re on a federal government site.

Https

The site is secure.
The https:// ensures that you are connecting to the official website and that any information you provide is encrypted and transmitted securely.

Access keys NCBI Homepage MyNCBI Homepage Main Content Main Navigation
. 2019 Feb 4;9(1):1290.
doi: 10.1038/s41598-018-38419-0.

Classical and quantum conductivity in β-Ga2O3

David C Look  1   2 , Kevin D Leedy  3
Affiliations

Classical and quantum conductivity in β-Ga2O3

David C Look et al. Sci Rep. .

Abstract

The conductivity σ, quantum-based magnetoconductivity Δσ = σ(B) - σ(0), and Hall coefficient RH (= µH/σ) of degenerate, homoepitaxial, (010) Si-doped β-Ga2O3, have been measured over a temperature range T = 9-320 K and magnetic field range B = 0-10 kG. With ten atoms in the unit cell, the normal-mode phonon structure of β-Ga2O3 is very complex, with optical-phonon energies ranging from kTpo ~ 20-100 meV. For heavily doped samples, the phonon spectrum is further modified by doping disorder. We explore the possibility of developing a single function Tpo(T) that can be incorporated into both quantum and classical scattering theory such that Δσ vs B, Δσ vs T, and µH vs T are all well fitted. Surprisingly, a relatively simple function, Tpo(T) = 1.6 × 103{1 - exp[-(T + 1)/170]} K, works well for β-Ga2O3 without any additional fitting parameters. In contrast, Δσ vs T in degenerate ScN, which has only one optical phonon branch, is well fitted with a constant Tpo = 550 K. These results indicate that quantum conductivity enables an understanding of classical conductivity in disordered, multi-phonon semiconductors.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

Figure 1
Figure 1

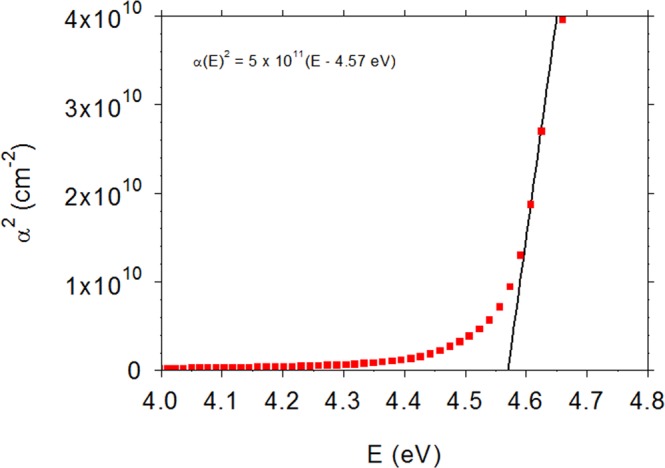

Square of absorption coefficient α vs energy E for βGAO. The intercept of α2 vs E gives a direct energy gap of 4.57 eV.
Figure 2
Figure 2
Conductivity σ, Hall-mobilty µ, and free-electron concentration n, vs temperature T in βGAO. The lines are theoretical fits of µ vs T under three possible conditions: (1) Tpo(T) = 1.4 × 103 K; (2) Tpo(T) = 1.0 × 103 K; or (3) Tpo(T) = 1.6 × 103{1 − exp[−(T + 1)/170]} K.
Figure 3
Figure 3
Magnetoconductivity Δσ vs T, B = 10 kG, for βGAO and thin-film ScN. The ScN is well fitted with a constant Tpo = 550 K, but the βGAO requires a function Tpo(T) = 1.6 × 103{1 − exp[−(T + 1)/170]} K.
Figure 4
Figure 4

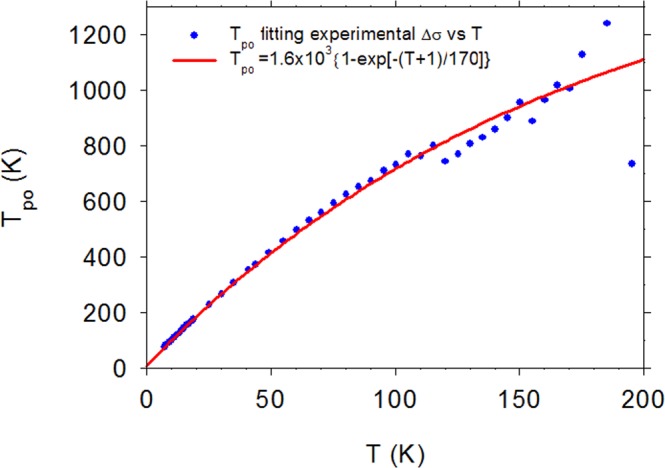

Experimental points: the required value of Tpo to fit Δσ vs T, B = 10 kG, at each temperature T, for βGAO. Solid line: a fit of Tpo vs T, giving Tpo(T) = 1.6 × 103{1 − exp[−(T + 1)/170]} K.
Figure 5
Figure 5

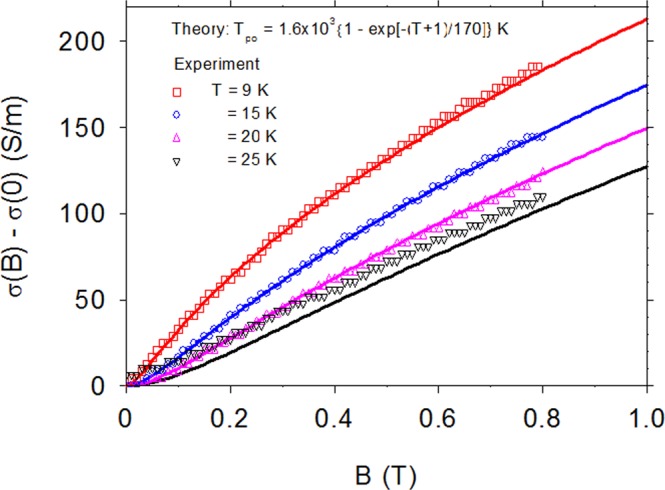

Experimental points: magnetoconductivty Δσ = σ(B) - σ(0) at temperatures T = 9, 15, 20, and 25 K. Solid lines: theoretical fits with Tpo(T) = 1.6 × 103{1 − exp[−(T + 1)/170]} K.
See this image and copyright information in PMC

References

    1. Higashiwaki M, Jessen GH. Guest Editorial: The dawn of gallium oxide microelectronics. Appl. Phys. Lett. 2018;112:060401. doi: 10.1063/1.5017845. - DOI
    1. Baldini M, Galazka Z, Wagner G. Recent progress in the growth of β-Ga2O3 for power electronics applications. Mater. Sci. in Semiconductor Processing. 2018;78:132–146. doi: 10.1016/j.mssp.2017.10.040. - DOI
    1. Green A, et al. 3.8-MV/cm breakdown strength of MOVPE-grown Sn-doped β-Ga2O3 MOSFETs. IEEE Electron Device Letters. 2016;37:902–905. doi: 10.1109/LED.2016.2568139. - DOI
    1. Leedy KD, et al. Highly conductive homoepitaxial Si-doped Ga2O3 films on (010) β-Ga2O3 by pulsed laser deposition. Appl. Phys. Lett. 2017;111:012103. doi: 10.1063/1.4991363. - DOI
    1. Xia Z, et al. Delta Doped β-Ga2O3 Field Effect Transistors With Regrown Ohmic Contacts. IEEE Electron Device Letters. 2018;39:568–571. doi: 10.1109/LED.2018.2805785. - DOI
