Crystallographic characterization of Lu2C2 n (2 n = 76-90): cluster selection by cage size

Abstract

The successful isolation and unambiguous crystallographic assignment of a series of lutetium-containing endohedral metallofullerenes (EMFs), Lu₂C_2n (2n = 76, 78, 80, 84, 86, 88, 90), reveal an unrecognized decisive effect of the cage size on the configuration of the encapsulated clusters. The molecular structures of these compounds are unambiguously assigned as Lu₂@T _d(2)-C₇₆, Lu₂@D _3h(5)-C₇₈, Lu₂@C _2v(5)-C₈₀, Lu₂@C _2v(7)-C₈₄, Lu₂@C _s(8)-C₈₆, Lu₂@C _s(15)-C₈₆, Lu₂@C ₁(26)-C₈₈, Lu₂C₂@C _2v(9)-C₈₆, Lu₂C₂@C _s(32)-C₈₈ and Lu₂C₂@D ₂(35)-C₈₈. Specifically, when the cage is relatively small, Lu₂@C_2n (2n = 76-86) are all dimetallofullerenes (di-EMFs) and a Lu-Lu single bond could be formed between the two lutetium ions inside the cages. However, when the cage expands further, the valence electrons forming the possible Lu-Lu bond donate to a readily inserted C₂-unit, resulting in the formation of carbide EMFs, Lu₂C₂@C_2n (2n = 86, 88). Consistently, our theoretical results reveal that all these EMFs are thermodynamically favorable isomers. Thus the comprehensive characterization of the series of Lu₂C_76-90 isomers and the overall agreement between the experimental and theoretical results reveal for the first time that the exact configuration of the internal metallic cluster is determined by the cage size, taking a solid step towards the controlled synthesis of novel hybrid molecules which may have potential applications as building blocks of single molecule devices.

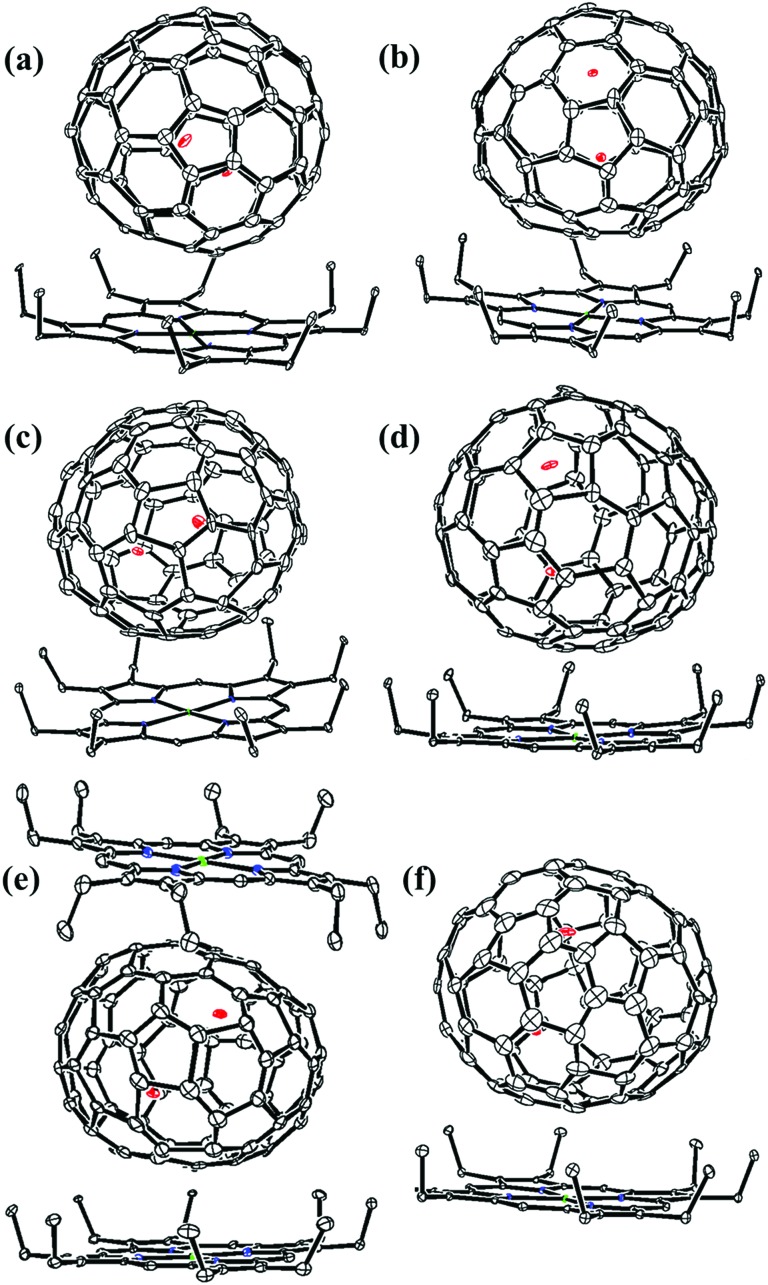

Fig. 1. ORTEP drawings of (a) Lu₂@T_d(2)-C₇₆·Ni^II(OEP), (b) Lu₂@D_3h(5)-C₇₈·Ni^II(OEP), (c) Lu₂@C_2v(5)-C₈₀·Ni^II(OEP), (d) Lu₂@C_2v(7)-C₈₄·Ni^II(OEP), (e) Lu₂@C_s(8)-C₈₆·1.5Ni^II(OEP) and (f) Lu₂@C_s(15)-C₈₆·Ni^II(OEP). Thermal contours are drawn at the 10% probability level. Only one fullerene cage and the predominant metal sites are shown, whereas minor metal sites, solvent molecules and H atoms are omitted for clarity.

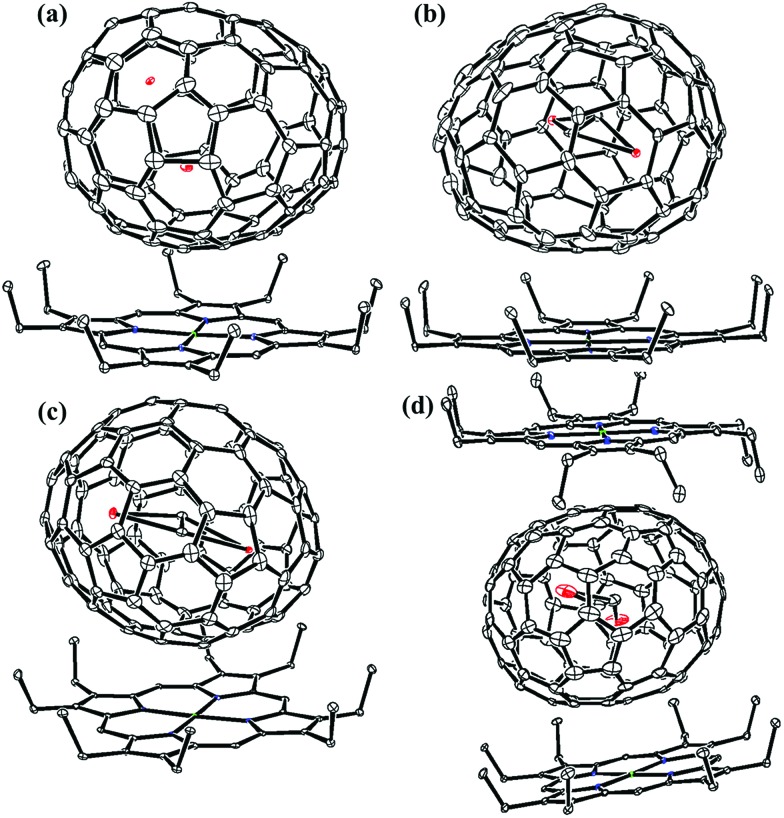

Fig. 2. ORTEP drawings of (a) Lu₂@C₁(26)-C₈₈·Ni^II(OEP), (b) Lu₂C₂@C_2v(9)-C₈₆·Ni^II(OEP), (c) Lu₂C₂@C_s(32)-C₈₈·Ni^II(OEP) and (d) Lu₂C₂@D₂(35)-C₈₈·Ni^II(OEP). Thermal contours are drawn at the 10% probability level. Only one fullerene cage and the predominant metal sites are shown, whereas minor metal sites, solvent molecules and H atoms are omitted for clarity.

Fig. 3. Perspective drawings showing the disordered lutetium sites. (a) 19 in Lu₂@T_d(2)-C₇₆, (b) 16 in Lu₂@D_3h(5)-C₇₈, (c) 27 in Lu₂@C_2v(5)-C₈₀, (d) 26 in Lu₂@C_2v(7)-C₈₄, (e) 13 in Lu₂@C_s(8)-C₈₆, (f) 20 in Lu₂@C_s(15)-C₈₆, (g) 27 in Lu₂@C₁(26)-C₈₈, (h) 13 in Lu₂C₂@C_2v(9)-C₈₆, (i) 24 in Lu₂C₂@C_s(32)-C₈₈ and (j) 16 in Lu₂C₂@D₂(35)-C₈₈.

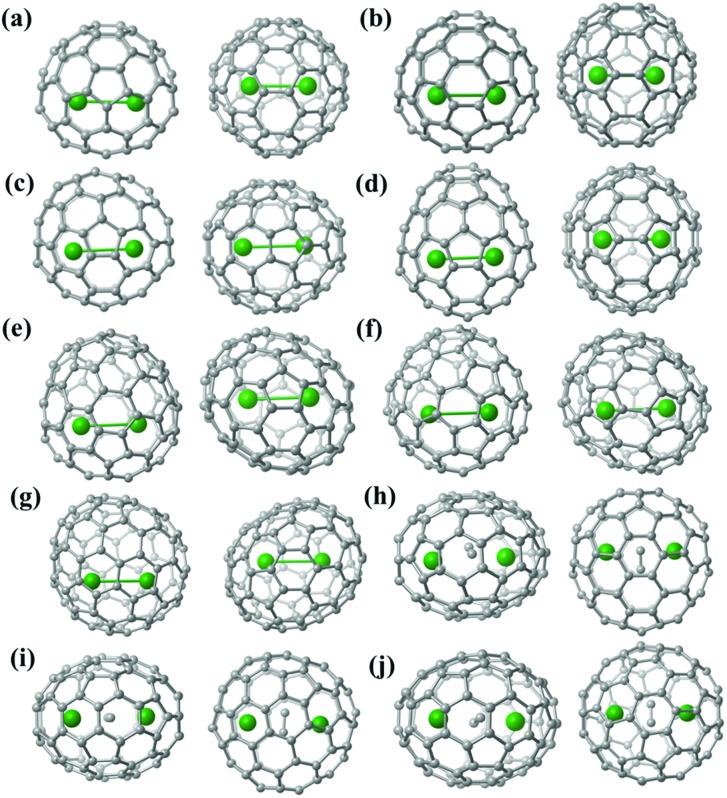

Fig. 4. Optimized structures of (a) Lu₂@T_d(2)-C₇₆, (b) Lu₂@D_3h(5)-C₇₈, (c) Lu₂@C_2v(5)-C₈₀, (d) Lu₂@C_2v(7)-C₈₄, (e) Lu₂@C_s(8)-C₈₆, (f) Lu₂@C_s(15)-C_86, (g) Lu₂@C₁(26)-C₈₈, (h) Lu₂C₂@C_2v(9)-C₈₆, (i) Lu₂C₂@C_s(32)-C₈₈ and (j) Lu₂C₂@D₂(35)-C₈₈ (top and side views).
