. 2018 Sep;13(3):267-273.
doi: 10.1016/j.jds.2018.06.002. Epub 2018 Jun 19.

The effect of plasma treatment on the osseointegration of rough titanium implant: A histo-morphometric study in rabbits

Affiliations

The effect of plasma treatment on the osseointegration of rough titanium implant: A histo-morphometric study in rabbits

Wan-Ching Chou et al. J Dent Sci. 2018 Sep.

Abstract

Abstract background/purpose: The surface properties, such as hydrophilicity and functional OH groups, play an important role in bone fixation in vivo. In our previous study, the plasma treatments of large grit and acid etching (SLA) method produce functional OH groups on the rough surface. There is no report in discussing the integration between basic Ti-OH groups and bone-to-implant contact (BIC). The aim of this study was to evaluate the effect of the functional OH groups on the rough surface both in vitro and in vivo.

Materials and methods: Functional hydroxyl groups were produced on a SLA-treated surface. The surface topography, roughness, wettability, and chemical composition were examined using various techniques. Twenty-four implants were inserted into the proximal tibia of four New Zealand white rabbits. The biological responses were measured in terms of histomorphometric analysis 4 and 8 weeks post-implantation.

Results: The surface morphology and roughness were similar among all groups. However, the concentration of OH groups and hydrophilicity were found increased in the plasma treatment. The cell morphology in RF-plasma treated groups had more polygonal type and higher expression of actin and vinculin. The bone-to-implant contact (BIC) ratios of RF-200W were significantly higher than other groups (P < 0.05). The relationship between basic OH groups and BIC showed linear correspondence.

Conclusion: The Ti-OH groups introduced on the rough surface by plasma treatments can trigger cell adhesion which further initiate new bone apposition. We propose that RF-plasma treatment can help to enhance bone healing at 4 and 8 weeks.

Keywords: Bone-to-implant contact; Functional OH groups; Hydrophilicity; Plasma treatment.

PubMed Disclaimer

Figures

Figure 1
Figure 1

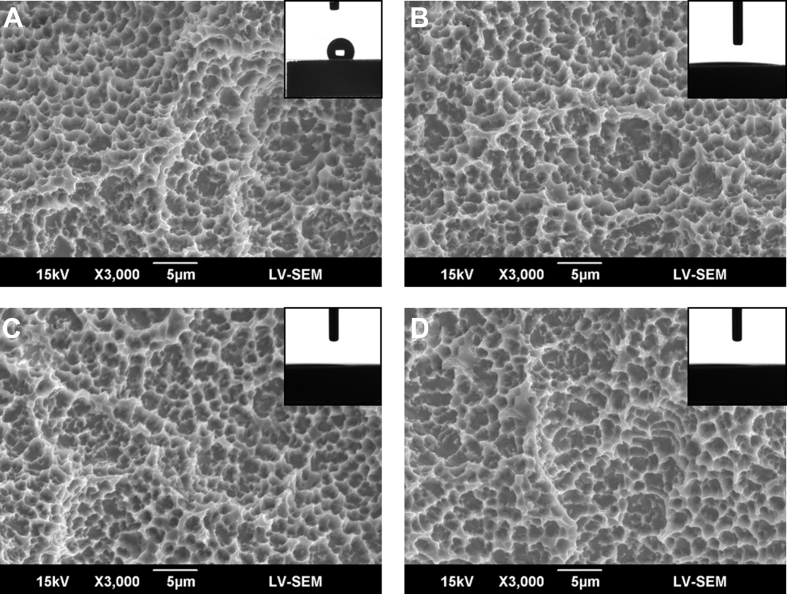

SEM morphology images of A. control (only SLA), B. DC-50W, C. RF-50W, and D. RF-200W. All specimens show mountain and valley structure with micron- and submicron-scale notches. Morphologies are the same but surface becomes hydrophilic after DC or RF plasma treatment.
Figure 2
Figure 2

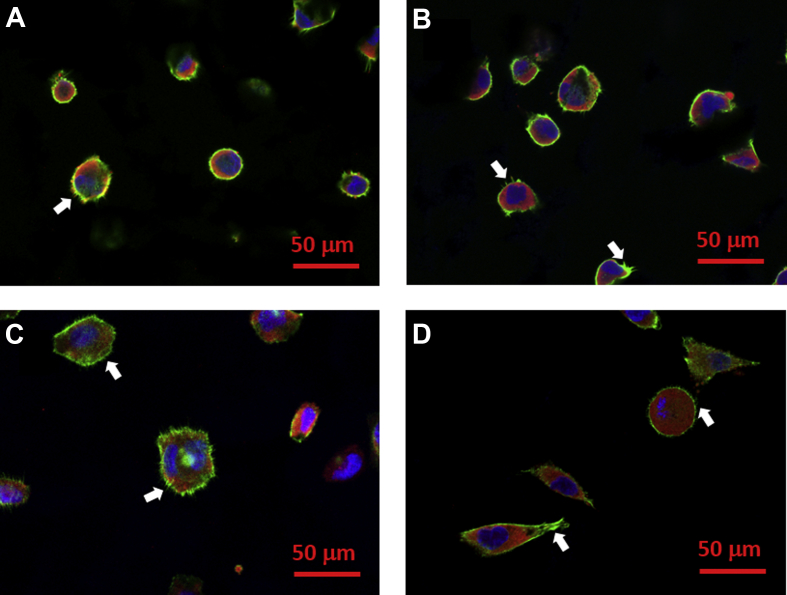

Fluorescence images of MG63 cells cultured on four types of surface after 1 h of incubation: A. control, B. DC-50W, C. RF-50W, and D. RF-200W. F-actin (green) was stained with Alexa Flour 488 phalloidin; vinculin (red) was stained with Alexa Fluor 594; nucleus (blue) was stained with DAPI. Actin filaments and vinculin expression are abundant after RF plasma treatment.
Figure 3
Figure 3
Fluorescence images of MG63 cells cultured on four types of surface after 24 h of incubation: A. control, B. DC-50W, C. RF-50W, and D. RF-200W. F-actin (green) was stained with Alexa Flour 488 phalloidin; vinculin (red) was stained with Alexa Fluor 594; nucleus (blue) was stained with DAPI. MG63 cells on RF-200W showed elongated morphology; cells in control group showed round morphology.
Figure 4
Figure 4
BEI-SEM image of RF-200W. New bone formation is dense and bone contact ratio is high at 8 weeks.
Figure 5
Figure 5
A. Bone-to-implant contact ratios after 4 and 8 weeks of healing. Bars labeled with underlines indicate significant difference between groups according to Duncan test (n = 3, P < 0.05). Duncan grouping of BIC at B. 4 weeks and C. 8 weeks.
Figure 6
Figure 6
Effects of basic Ti—OH on BIC ratio. Increasing basic Ti—OH increased BIC ratios.

References

    1. Wen B., Kuhn L., Charles L. Comparison of bone morphogenetic protein-2 delivery systems to induce supracrestal bone guided by titanium implants in the rabbit mandible. Clin Oral Implants Res. 2016;27:676–685. - PubMed
    1. Gehrke S.A., Mate Sanchez de Val J.E., Fernandez Dominguez M. Effects on the osseointegration of titanium implants incorporating calcium-magnesium: a resonance frequency and histomorphometric analysis in rabbit tibia. Clin Oral Implants Res. 2016:1–7. [Epub ahead of print] - PubMed
    1. Contribunale J.A., Puche R.C. Osseointegration of titanium implants anodized with and without fluoride in the electrolyte. A study in rats. Actual Osteol. 2017;13:46–57.
    1. Gittens R.A., McLachlan T., Olivares-Navarrete R. The effects of combined micron-/submicron-scale surface roughness and nanoscale features on cell proliferation and differentiation. Biomaterials. 2011;32:3395–3403. - PMC - PubMed
    1. Buser D., Broggini N., Wieland M. Enhanced bone apposition to a chemically modified SLA titanium surface. J Dent Res. 2004;83:529–533. - PubMed
