. 2019 Apr;17(4):3029-3034.
doi: 10.3892/etm.2019.7321. Epub 2019 Feb 26.

Constructing differential co-expression network to predict key pathways for myocardial infarction

Su-Zhen Guo  1 , Wen-Jie Liu  2
Affiliations

Constructing differential co-expression network to predict key pathways for myocardial infarction

Su-Zhen Guo et al. Exp Ther Med. 2019 Apr.

Abstract

New thoughts are warranted to develop efficient diagnosis and optimal therapeutics to combat unstable angina (UA)/myocardial infarction (MI). Therefore, the gene data of patients with UA or MI were used in this study to identify the optimal pathways which can provide comprehensive information for UA/MI development. Differentially expressed genes (DEGs) between UA and MI were detected using LIMMA package, and pathway enrichment analysis was conducted for the DEGs, based on the DAVID tool, to detect the significant pathways. Then, differential co-expression network (DCN) and sub-DCN for the DEGs were constructed. Subsequently, informative pathways were extracted using guilt-by-association (GBA) principle relying on the area under the curve (AUC), and the pathway categories with AUC >0.8 were defined as the informative pathways. Finally, we selected the optimal pathways based on the traditional pathway analysis and the sub-DCN-based-GBA pathway prediction method. A total of 203 and 266 DEGs were identified from the expression profile of blood of MI samples comparing with UAs in the time-point 1 and time-point 2 groups. Moreover, 7 and 10 informative pathway terms were identified based on AUC>0.8. Significantly, cytokine-cytokine receptor interaction, as well as MAPK signaling pathway were the common optimal pathways in the two groups. Calcium signaling pathway was unique to the whole blood of patients with acute coronary syndrome (ACS) taken at 30 days post-ACS. In conclusion, the optimal pathways (MAPK signaling pathway, cytokine-cytokine receptor interaction, and calcium signaling pathway) might play important roles in the progression of UA/MI.

Keywords: area under the curve; differential co-expression network; guilt-by-association; myocardial infarction; unstable angina.

PubMed Disclaimer

Figures

Figure 1.
Figure 1.

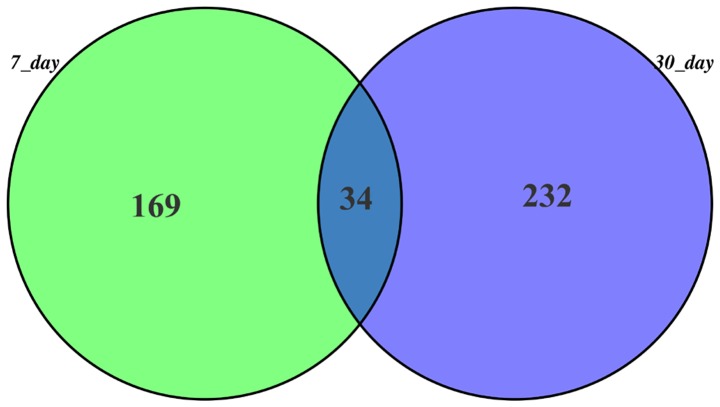

Venn diagram exhibiting the number of DEGs between time-point 1 and time-point 2 groups. DEGs, differentially expressed genes.
Figure 2.
Figure 2.

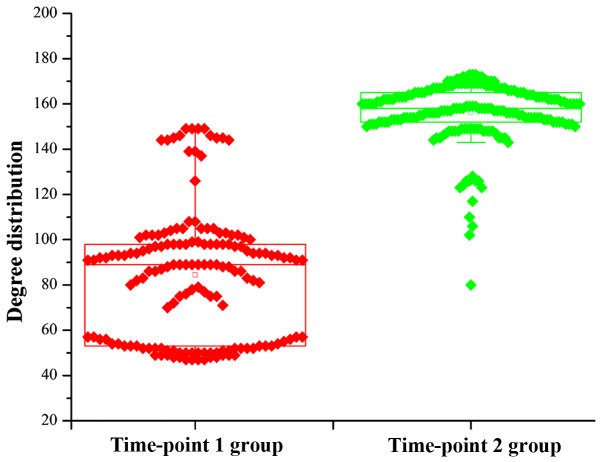

Degree distribution of all nodes in the differentially co-expressed network between the two groups.
Figure 3.
Figure 3.

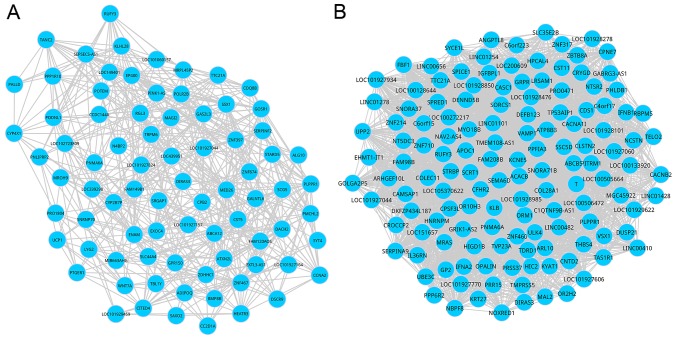

Sub-DCN construction for two groups. Sub-DCN construction for (A) time-group 1 and (B) time-group 2. DCN, differential co-expression network.
Figure 4.
Figure 4.

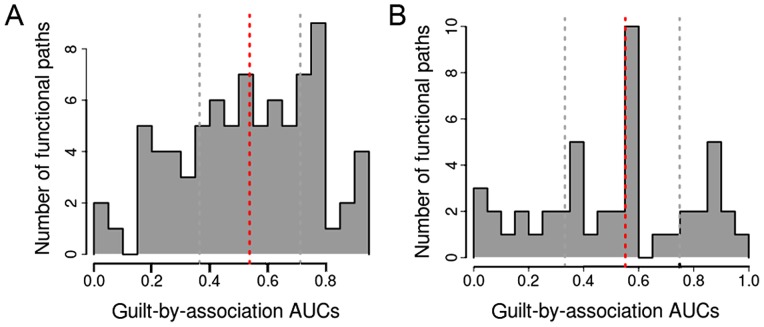

Informative pathways predicted by guilt-by-association. Guilt-by-association AUCs for (A) time-group 1 and (B) time-group 2.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Mozaffarian D, Benjamin EJ, Go AS, Arnett DK, Blaha MJ, Cushman M, de Ferranti SD, Després JP, Fullerton HJ, Howard VJ, et al. American Heart Association Statistics Committee and Stroke Statistics Subcommittee Heart disease and stroke statistics – 2015 update: A report from the American Heart Association. Circulation. 2015;131:e29–322. doi: 10.1161/CIR.0000000000000157. - DOI - PubMed
    1. Wright RS, Anderson JL, Adams CD, Bridges CR, Casey DE, Jr, Ettinger SM, Fesmire FM, Ganiats TG, Jneid H, Lincoff AM, et al. 2011 ACCF/AHA focused update of the Guidelines for the Management of Patients with Unstable Angina/Non-ST-Elevation Myocardial Infarction (updating the 2007 guideline): A report of the American College of Cardiology Foundation/American Heart Association Task Force on Practice Guidelines developed in collaboration with the American College of Emergency Physicians, Society for Cardiovascular Angiography and Interventions, and Society of Thoracic Surgeons. J Am Coll Cardiol. 2011;57:1920–1959. doi: 10.1016/j.jacc.2011.02.009. - DOI - PubMed
    1. Yeh RW, Sidney S, Chandra M, Sorel M, Selby JV, Go AS. Population trends in the incidence and outcomes of acute myocardial infarction. N Engl J Med. 2010;362:2155–2165. doi: 10.1056/NEJMoa0908610. - DOI - PubMed
    1. Van de Werf F, Ardissino D, Betriu A, Cokkinos DV, Falk E, Fox KA, Julian D, Lengyel M, Neumann FJ, Ruzyllo W, et al. Task Force on the Management of Acute Myocardial Infarction of the European Society of Cardiology Management of acute myocardial infarction in patients presenting with ST-segment elevation. The Task Force on the Management of Acute Myocardial Infarction of the European Society of Cardiology. Eur Heart J. 2003;24:28–66. doi: 10.1016/S0195-668X(02)00618-8. - DOI - PubMed
    1. Louwen F, Muschol-Steinmetz C, Reinhard J, Reitter A, Yuan J. A lesson for cancer research: Placental microarray gene analysis in preeclampsia. Oncotarget. 2012;3:759–773. doi: 10.18632/oncotarget.595. - DOI - PMC - PubMed
