An investigation of single-domain and multidomain medication and adverse drug event relation extraction from electronic health record notes using advanced deep learning models

Abstract

Objective: We aim to evaluate the effectiveness of advanced deep learning models (eg, capsule network [CapNet], adversarial training [ADV]) for single-domain and multidomain relation extraction from electronic health record (EHR) notes.

Materials and methods: We built multiple deep learning models with increased complexity, namely a multilayer perceptron (MLP) model and a CapNet model for single-domain relation extraction and fully shared (FS), shared-private (SP), and adversarial training (ADV) modes for multidomain relation extraction. Our models were evaluated in 2 ways: first, we compared our models using our expert-annotated cancer (the MADE1.0 corpus) and cardio corpora; second, we compared our models with the systems in the MADE1.0 and i2b2 challenges.

Results: Multidomain models outperform single-domain models by 0.7%-1.4% in F1 (t test P < .05), but the results of FS, SP, and ADV modes are mixed. Our results show that the MLP model generally outperforms the CapNet model by 0.1%-1.0% in F1. In the comparisons with other systems, the CapNet model achieves the state-of-the-art result (87.2% in F1) in the cancer corpus and the MLP model generally outperforms MedEx in the cancer, cardiovascular diseases, and i2b2 corpora.

Conclusions: Our MLP or CapNet model generally outperforms other state-of-the-art systems in medication and adverse drug event relation extraction. Multidomain models perform better than single-domain models. However, neither the SP nor the ADV mode can always outperform the FS mode significantly. Moreover, the CapNet model is not superior to the MLP model for our corpora.

Keywords: deep learning; electronic health record note; natural language processing; relation extraction; single and multidomain.

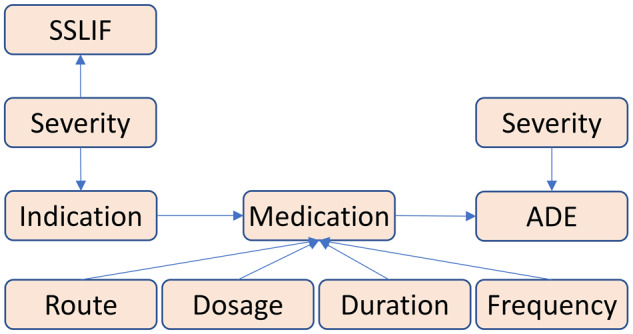

Figure 1.

Relations in our corpora. Relations are identified among medications, indications, adverse drug events (ADEs), and attributes (ie, severity, route, dosage, duration, and frequency). SSLIF: any sign, symptom, and disease that is not an adverse drug event or indication.

Figure 2.

Architecture of the single-domain relation extraction model using the mutlilayer perceptron network. Given an instance, that is, 2 target entities $e_1$, $e_2$ and a word sequence $s$ that incorporates $e_1$ and $e_2$, 2 kinds of features are extracted, namely sequence-level features and instance-level features. A sequence-level feature corresponds to a word (eg, word embedding) while an instance-level feature corresponds to an instance (eg, entity type). After feature extraction, all features are fed into the classifier to determine which kind of relations $e_1$ and $e_2$ have. ADE: adverse drug event; CNN: convolutional neural network; POS: part of speech.

Figure 3.

Architecture of the capsule network classifier. The architecture of the single-domain relation extraction model using the capsule network is identical to the model using the multilayer perceptron classifier (Figure 2), except that the capsule network classifier replaces the multilayer perceptron classifier.

Figure 4.

Architecture of the multidomain relation extraction model using the shared-private mode. A feature extractor denotes both sequence-level and instance-level feature extraction in Figure 2. A classifier can be either the multilayer perceptron model or capsule network. The blue or green rectangle denotes the private feature extractor. The white rectangle denotes the shared feature extractor.

Figure 5.

Architecture of the multidomain relation extraction model using the adversarial training. The yellow arrow line denotes the adversarial training.
