. 2019 Feb 18;11(2):355.
doi: 10.3390/polym11020355.

The Different Outcomes of Electrochemical Copolymerisation: 3-Hexylthiophene with Indole, Carbazole or Fluorene

Karolina Gebka  1 , Tomasz Jarosz  2   3 , Agnieszka Stolarczyk  4
Affiliations

The Different Outcomes of Electrochemical Copolymerisation: 3-Hexylthiophene with Indole, Carbazole or Fluorene

Karolina Gebka et al. Polymers (Basel). .

Abstract

Electrochemical polymerisation is reported to be a method for readily producing copolymers of various conjugated molecules. We employed this method for mixtures of indole, carbazole or fluorene with 3-hexylthiophene (HT), in order to obtain their soluble copolymers. Although polymer films were obtained, infrared (IR) and Raman investigations showed that instead of the expected linear copolymers, polyindole and polycarbazole N-substituted with HT, as well as a poly(3-hexylthiophene) (PHT)/polyfluorene blend were produced instead. Boron trifluoride diethyl etherate was also used in an attempt to promote copolymerisation, but the produced deposits were found to be highly degraded.

Keywords: carbazole; electrochemical copolymerisation; fluorene; indole; poly(3-hexylthiophene).

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure A1
Figure A1
CV recorded during the electrochemical polymerisation of 20 mM HT in 0.1 M tetrabutylammonium tetrafluoroborate.
Figure A2

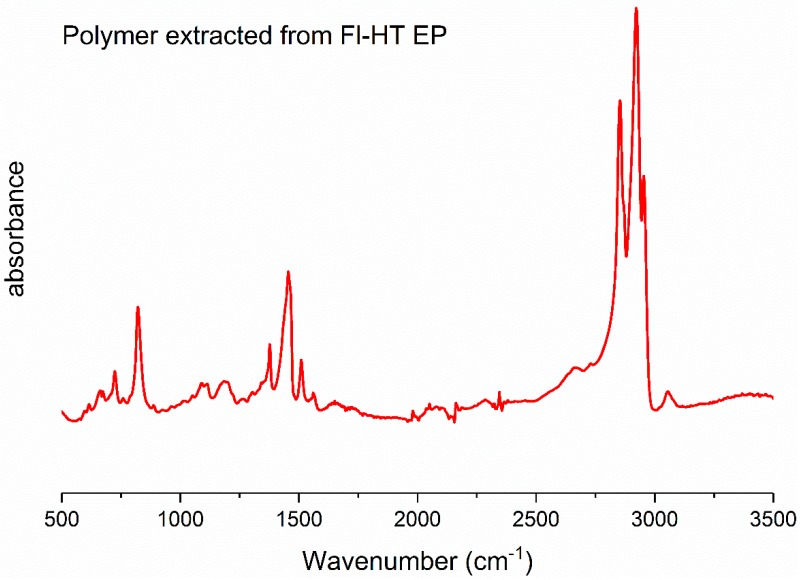

Figure A2
IR spectrum of the polymer fraction of Fl-HT EP soluble in chloroform and deposited from solution on the IR spectrometer ATR crystal.
Figure A3
Figure A3
Raman spectra of the polymer films obtained during electrochemical polymerisation of In-HT, Cz-HT and Fl-HT.
Figure A4

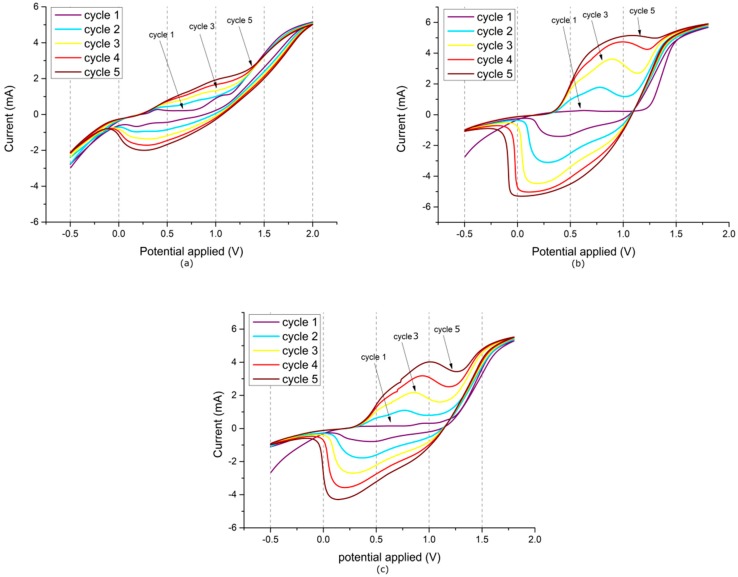

Figure A4
Electrochemical polymerisation of In-HT (a), Cz-HT (b), Fl-HT (c) containing 10 vol % boron trifluoride diethyl etherate.
Figure A5
Figure A5
IR spectra of the polymer deposits obtained during electrochemical polymerisation of In-HT, Cz-HT and Fl-HT in the presence of 10 vol % boron trifluoride diethyl etherate.
Figure A6
Figure A6
Raman spectra of the polymer deposits obtained during electrochemical polymerisation of In-HT, Cz-HT and Fl-HT in the presence of 10 vol % boron trifluoride diethyl etherate.
Scheme 1
Scheme 1
Chemical formulae of the co-monomers investigated.
Figure 1
Figure 1
Electrochemical polymerisation of indole (a), CV of the deposited layer (b).
Figure 2
Figure 2
Electrochemical polymerisation of In-HT 5:2 (a), In-HT 1:10 (b), CVs of deposited In-HT 5:2 EP (c), In-HT 1:10 EP (d) layers.
Figure 3
Figure 3
Electrochemical polymerisation of carbazole (a), CV of the deposited layer (b).
Figure 4
Figure 4
Electrochemical polymerisation of Cz-HT 5:1 (a), Cz-HT 1:5 (b), CVs of deposited Cz-HT 5:1 EP (c), Cz-HT 1:5 EP (d) layers.
Figure 5
Figure 5
Electrochemical polymerisation of fluorene (a), CV of the deposited layer (b).
Figure 6
Figure 6
Electrochemical polymerisation of Fl-HT 5:1 (a), Fl-HT 1:5 (b), CVs of deposited Fl-HT 5:1 EP (c), Fl-HT 1:5 EP (d) layers.
Figure 7
Figure 7
Attenuated total reflection-infrared (ATR-IR) spectra of indole, its homopolymer (In EP) layer and In-HT EP layers.
Figure 8
Figure 8
ATR-IR spectra of carbazole, its homopolymer (Cz EP) layer and Cz-HT EP layers.
Figure 9
Figure 9
ATR-IR spectra of the fluorene, its homopolymer (Fl EP) layer and Fl-HT EP layers.
Scheme 2
Scheme 2
Proposed structural formulae for In-HT EP and for Cz-HT EP.
Figure 10
Figure 10
Ultraviolet-visible-near infrared (UV-Vis) spectra of polymeric films prepared from pure monomer solutions (a) and monomer solutions containing HT (b).
See this image and copyright information in PMC

References

    1. Argun A.A., Aubert P.H., Thompson B.C., Schwendeman I., Gaupp C.L., Hwang J., Pinto N.J., Tanner D.B., MacDiarmid A.G., Reynolds J.R. Multicolored electrochromism in polymers: Structures and devices. Chem. Mater. 2004;16:4401–4412. doi: 10.1021/cm049669l. - DOI
    1. Beaujuge P.M., Reynolds J.R. Color control in pi-conjugated organic polymers for use in electrochromic devices. Chem. Rev. 2010;110:268–320. doi: 10.1021/cr900129a. - DOI - PubMed
    1. Brabec C.J., Sariciftci N.S., Hummelen J.C. Plastic Solar Cells. Adv. Funct. Mater. 2001;11:15–26. doi: 10.1002/1616-3028(200102)11:1<15::AID-ADFM15>3.0.CO;2-A. - DOI
    1. Facchetti A. Semiconductors for organic transistors. Mater. Today. 2007;10:28–37. doi: 10.1016/S1369-7021(07)70017-2. - DOI
    1. Wong J.Y., Langer R., Ingber D.E. Electrically conducting polymers can noninvasively control the shape and growth of mammalian cells. Proc. Natl. Acad. Sci. USA. 1994;91:3201–3204. doi: 10.1073/pnas.91.8.3201. - DOI - PMC - PubMed
