Loss of cytoplasmic incompatibility in Wolbachia-infected Aedes aegypti under field conditions

Abstract

Wolbachia bacteria are now being introduced into Aedes aegypti mosquito populations for dengue control. When Wolbachia infections are at a high frequency, they influence the local transmission of dengue by direct virus blocking as well as deleterious effects on vector mosquito populations. However, the effectiveness of this strategy could be influenced by environmental temperatures that decrease Wolbachia density, thereby reducing the ability of Wolbachia to invade and persist in the population and block viruses. We reared wMel-infected Ae. aegypti larvae in the field during the wet season in Cairns, North Queensland. Containers placed in the shade produced mosquitoes with a high Wolbachia density and little impact on cytoplasmic incompatibility. However, in 50% shade where temperatures reached 39°C during the day, wMel-infected males partially lost their ability to induce cytoplasmic incompatibility and females had greatly reduced egg hatch when crossed to infected males. In a second experiment under somewhat hotter conditions (>40°C in 50% shade), field-reared wMel-infected females had their egg hatch reduced to 25% when crossed to field-reared wMel-infected males. Wolbachia density was reduced in 50% shade for both sexes in both experiments, with some mosquitoes cleared of their Wolbachia infections entirely. To investigate the critical temperature range for the loss of Wolbachia infections, we held Ae. aegypti eggs in thermocyclers for one week at a range of cyclical temperatures. Adult wMel density declined when eggs were held at 26-36°C or above with complete loss at 30-40°C, while the density of wAlbB remained high until temperatures were lethal. These findings suggest that high temperature effects on Wolbachia are potentially substantial when breeding containers are exposed to partial sunlight but not shade. Heat stress could reduce the ability of Wolbachia infections to invade mosquito populations in some locations and may compromise the ability of Wolbachia to block virus transmission in the field. Temperature effects may also have an ecological impact on mosquito populations given that a proportion of the population becomes self-incompatible.

Fig 1. Temperature cycles and the resulting egg hatch proportions from crosses in the first field experiment.

(A) Temperature cycles experienced in buckets (8 L) from the 10^th to the 17^th of January 2018. (B-C) Egg hatch proportions of crosses with wMel-infected adults when larvae were reared under 99% shade (B) or 50% shade (C) in buckets. All error bars are medians with interquartile ranges. ** P < 0.01, *** P < 0.001 by Mann-Whitney U test.

Fig 2

Wolbachia density of (A) Females and (B) males reared in different container types at two levels of shade in the first field experiment. All error bars are medians with interquartile ranges. *** P < 0.001 by Kruskal-Wallis test.

Fig 3. Temperature cycles and the resulting egg hatch proportions from crosses in the second field experiment.

(A) Temperature cycles experienced in buckets (8 L) and small containers (400 mL) from the 26^th of January to the 1^st of February 2018. (B) Egg hatch proportions of crosses with wMel-infected adults when larvae were reared in buckets under 50% shade. All error bars are medians with interquartile ranges. * P < 0.05, *** P < 0.001 by Mann-Whitney U test.

Fig 4

Wolbachia density of (A) Females and (B) males reared in different container types at two levels of shade in the second field experiment. The number of mosquitoes from each treatment that were positive for Wolbachia is also shown. All error bars are medians with interquartile ranges. *** P < 0.001 by Kruskal-Wallis test.

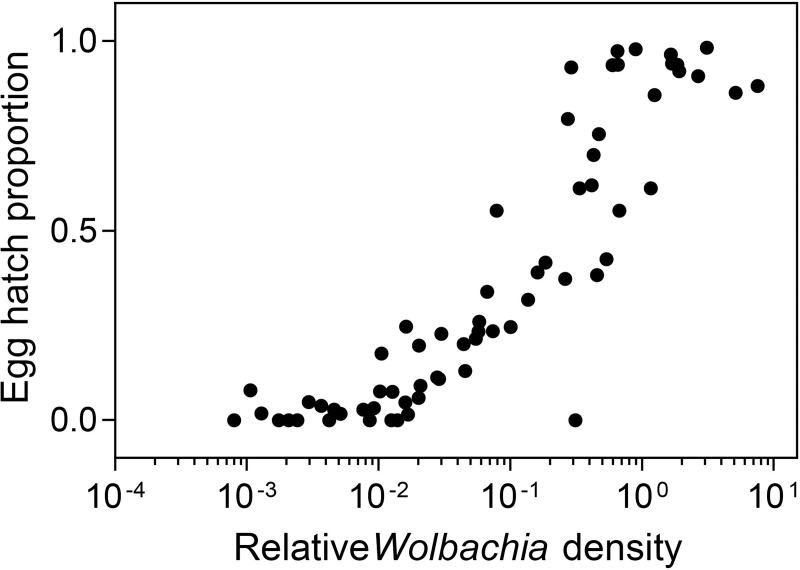

Fig 5. The relationship between female Wolbachia density and egg hatch proportion in crosses with wMel-infected females and males reared under the same conditions in the field.

Adults reared in buckets (8 L) or small containers (400 mL) held at 50% or 99% shade were crossed to individuals from the same rearing container before females were isolated for egg hatch rate and Wolbachia density measurements.

Fig 6

Egg hatch proportions (A) and Wolbachia density in female (B) and male (C) adults after eggs were exposed to a broad range of temperature cycles for one week. Each dot in (A) represents the proportion of eggs hatched in a replicate tube, with solid lines indicating median egg hatch proportions. Each dot in (B) and (C) represents the Wolbachia density of a single adult. Asterisks above temperature cycles indicate the number of individuals that were negative for Wolbachia out of the total number tested, with the color corresponding to the Wolbachia infection type.

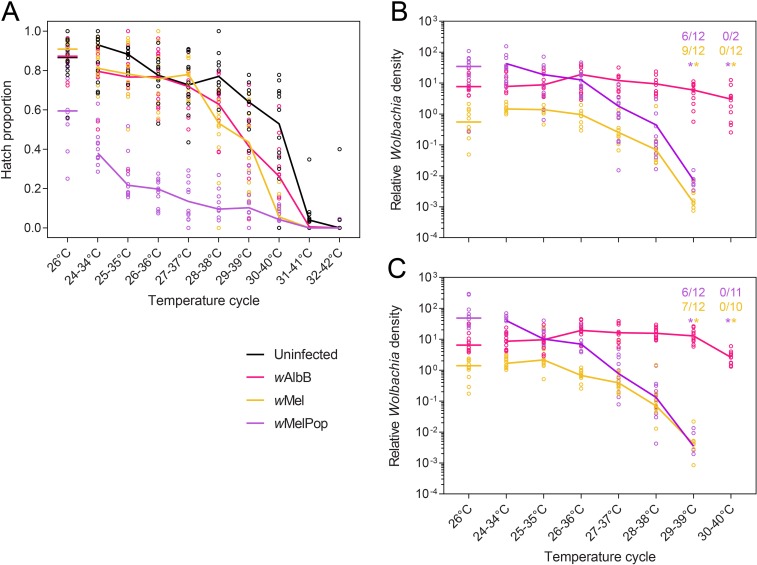

Fig 7

Egg hatch proportions (A) and Wolbachia density in female (B) and male (C) adults after eggs were exposed to stressful temperature cycles for one week. Each dot in (A) represents the proportion of eggs hatched in a replicate tube, with solid lines indicating median egg hatch proportions. Each dot in (B) and (C) represents the Wolbachia density of a single adult. Asterisks above temperature cycles indicate the number of individuals that were negative for Wolbachia out of the total number tested, with the color corresponding to the Wolbachia infection type.
