. 2019 Jan 7:84:e9-e15.
doi: 10.5114/pjr.2019.81178. eCollection 2019.

Application of the probit method for elastographic evaluation of venous obliterating material after sclerotherapy procedure

Łukasz Paluch  1 , Żaneta Nitek  1 , Katarzyna Sklinda  2 , Bartłomiej Noszczyk  3 , Jerzy Walecki  1
Affiliations

Application of the probit method for elastographic evaluation of venous obliterating material after sclerotherapy procedure

Łukasz Paluch et al. Pol J Radiol. .

Abstract

Purpose: Status after sclerotherapy constitutes a good clinical model for venous thrombosis with known age. The aim of this study was to compare elastographic parameters of material obliterating the great saphenous vein at 7-21 days after polidocanol sclerotherapy.

Material and methods: The study included 60 patients subjected to sclerotherapy due to venous insufficiency (45 women and 15 men, mean age 51.2 ± 14.7 years, range 27-77 years). Elastographic parameters of obliterating material: total area of vessel cross-section (mm2), relative areas (%) covered by tissues with highest, intermediate, and lowest elasticity, were determined 7 ± 1, 14 ± 2, and 21 ± 2 days post-sclerotherapy, respectively. Mean time to partial and complete organisation of the obliterating material was estimated during probit regression analysis.

Results: The relative area of vessel cross-section covered by tissues with the lowest elasticity underwent a statistically significant enlargement, either between the first and the second (Z = 6.725, p < 0.001) or between the second and the third control visit (Z = 6.717, p < 0.001). This corresponded to a change in the structure of the obliterating material from elastic during the first visit (in all patients) to mixed (fibro-elastic) or fibrous during the third visit (71.7% and 28.3% of patients, respectively). Mean time after which the obliterating material reached mixed and fibrous structure on elastographic images was estimated at 14.3 days and > 21 days, respectively.

Conclusions: Ultrasound elastography may accurately reflect the age of venous thrombosis in polidocanol sclerotherapy model. Mixed, fibro-elastic structure of a 14-day-old obliterating material visualised by elastography probably corresponds with chronic thrombus.

Keywords: deep vein thrombosis; imaging; polidocanol; ultrasonography.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interests.

Figures

Figure 1
Figure 1

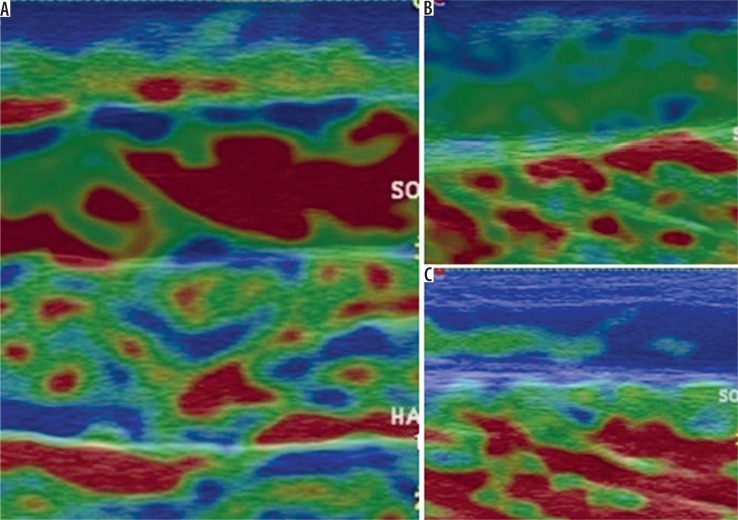

Obliterating material whose elastographic structure was classified as (A) elastic (age 7 days – predominance of red areas), (B) mixed, fibro-elastic (age 14 days – predominance of green areas), and (C) fibrous (age 21 days – predominance of blue areas)
Figure 2
Figure 2

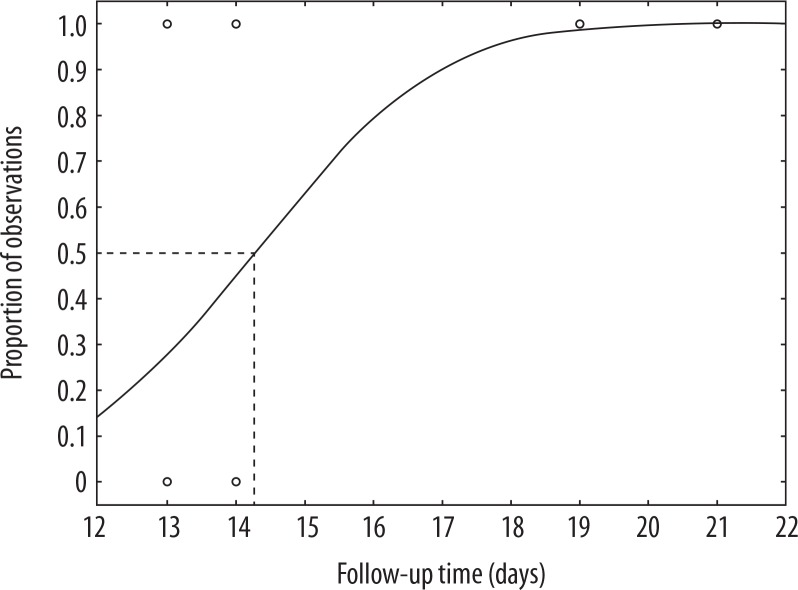

Time after which obliterating material reached mixed, fibro-elastic structure – results of probit regression analysis
Figure 3
Figure 3

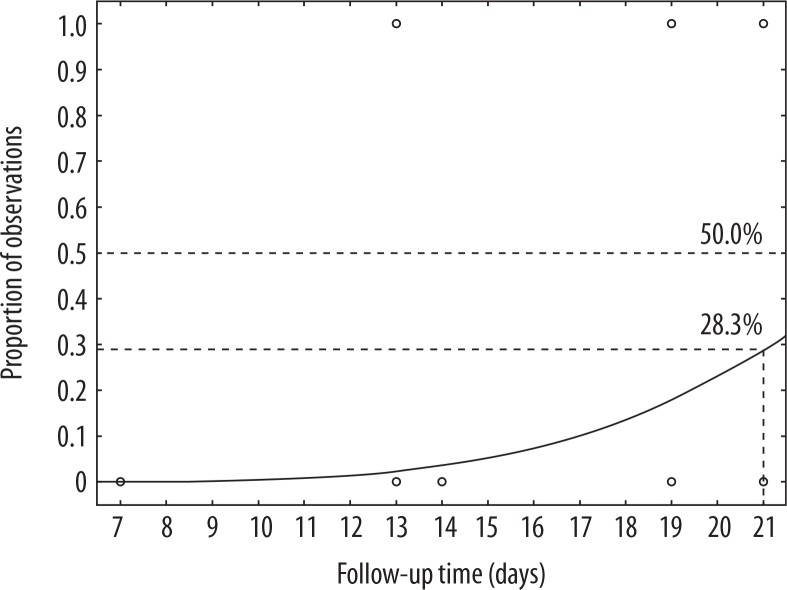

Time to complete organisation of obliterating material – results of probit regression analysis
