. 2019 May 6;9(1):6985.
doi: 10.1038/s41598-019-43439-5.

Stability Mechanism of Two Soybean Protein-Phosphatidylcholine Nanoemulsion Preparation Methods from a Structural Perspective: A Raman Spectroscopy Analysis

Ying Zhu  1 , Yang Li  1   2 , Changling Wu  1 , Fei Teng  1 , Baokun Qi  1 , Xiaonan Zhang  1 , Linyi Zhou  1 , Guoping Yu  1 , Huan Wang  1 , Shuang Zhang  1 , Zhongjiang Wang  3 , Lianzhou Jiang  4   5
Affiliations

Stability Mechanism of Two Soybean Protein-Phosphatidylcholine Nanoemulsion Preparation Methods from a Structural Perspective: A Raman Spectroscopy Analysis

Ying Zhu et al. Sci Rep. .

Abstract

Ultrasound treatment and high-pressure homogenization were used to prepare soybean protein (SP)-phosphatidylcholine (PC) nanoemulsions in this study. Nanoemulsions prepared by high-pressure homogenization were more stable. The structural changes of SP and PC under ultrasound treatment and high-pressure homogenization treatment were investigated by Raman spectroscopy. It could be concluded that ultrasound and high-pressure homogenization treatments increased both the content of α-helix and unordered structure but decreased that of β-structures of SP, while the interaction between SP and PC decreased α-helix content and also reduced unordered structure and β-sheet structure. Ultrasound treatment and high-pressure homogenization exposed more tryptophan and tyrosine residues to promote hydrophobic interaction between SP and PC, which was beneficial for stabilizing the nanoemulsion. The SP-PC interaction exerted a more significant effect on side chain structure than those observed under ultrasound treatment and high-pressure homogenization. The dominant g-g-t vibrational mode of the disulfide bond of soybean protein was not appreciably changed by the two preparations. High-pressure homogenization increased the disorder of lipid chains of PC, promoting SP-PC interaction and thereby increasing the stability of the nanoemulsion. The structural change provided a theoretical basis for preparation of two nanoemulsions.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

Figure 1
Figure 1

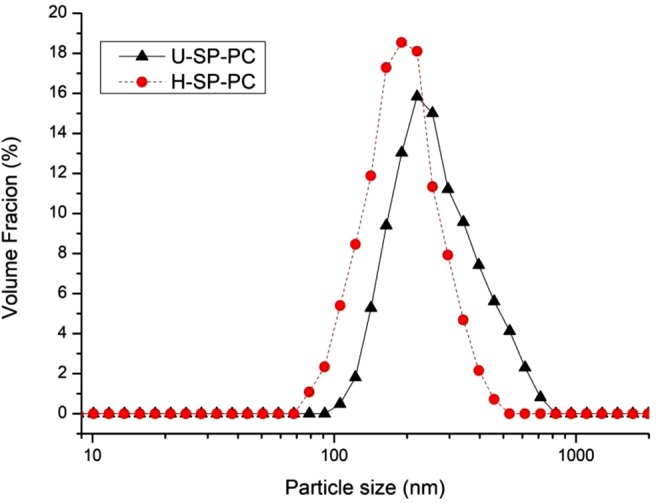

Particle size distribution of the nanoemulsions prepared by ultrasound and high-pressure homogenization treatments.
Figure 2
Figure 2

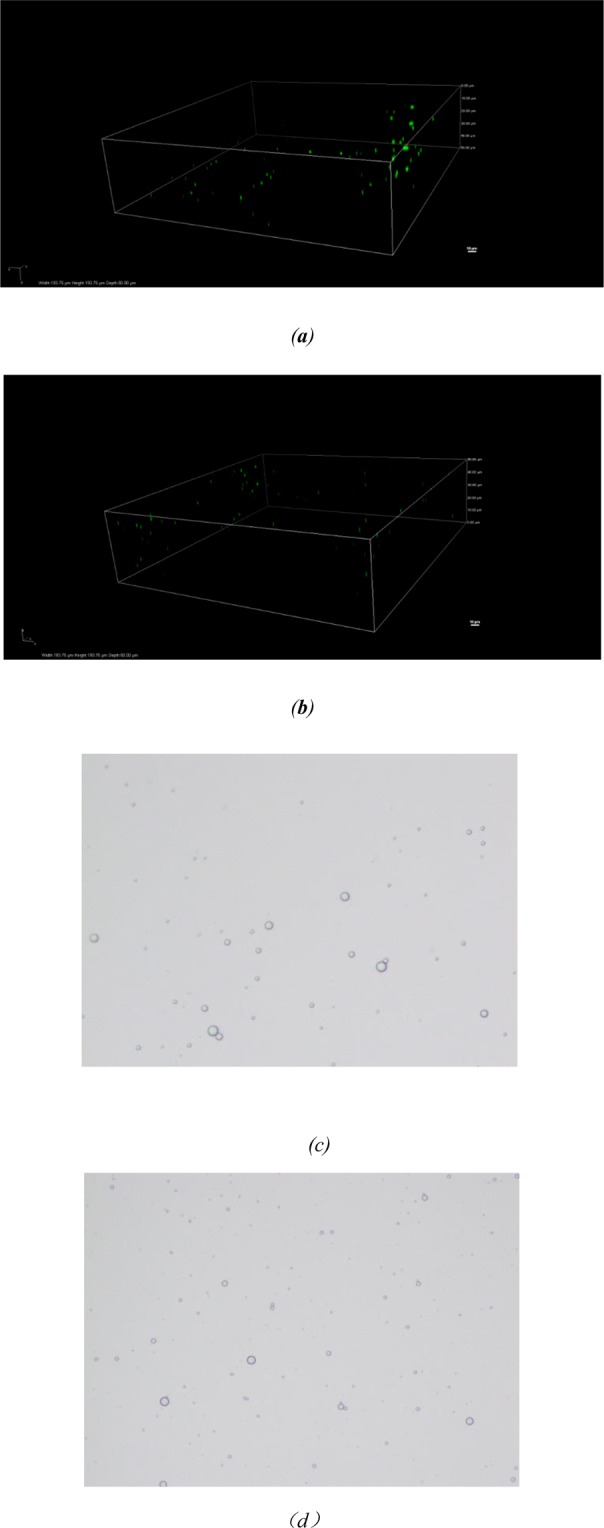

Different microscopy of nanoemulsions under different preparation methods 3D Confocal laser scanning microscopy: (a) the nanoemulsion prepared by ultrasound; (b) the nanoemulsion prepared by high-pressure homogenization; Optical microscopy: (c) the nanoemulsion prepared by ultrasound; (d) the nanoemulsion prepared by high-pressure homogenization.
Figure 3
Figure 3
Raman spectra of nanoemulsions after different treatments: (a) the SP under ultrasound and high pressure homogenization; (b) the SP-PC nanoemulsions under ultrasound and high-pressure homogenization.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Zhou M, et al. Effect of high intensity ultrasound on physicochemical and functional properties of soybean glycinin at different ionic strengths. Innovative Food Science & Emerging Technologies. 2016;34:205–213. doi: 10.1016/j.ifset.2016.02.007. - DOI
    1. Nieuwenhuyzen WV, Szuhaj BF. Effects of lecithins and proteins on the stability of emulsions. European Journal of Lipid Science & Technology. 1998;100:282–291.
    1. Comas DI, Wagner JR, Tomás MC. Creaming stability of oil in water (O/W) emulsions: Influence of pH on soybean protein–lecithin interaction. Food Hydrocolloids. 2006;20:990–996. doi: 10.1016/j.foodhyd.2005.11.006. - DOI
    1. Mccann TH, Small DM, Batey IL, Wrigley CW, Li D. Protein–lipid interactions in gluten elucidated using acetic acid fractionation. Food Chemistry. 2009;115:105–112. doi: 10.1016/j.foodchem.2008.11.070. - DOI
    1. Mccrae CH. Heat stability of milk emulsions: phospholipid–protein interactions. International Dairy Journal. 1999;9:227–231. doi: 10.1016/S0958-6946(99)00065-5. - DOI
