. 2019 May 9;19(1):105.
doi: 10.1186/s12886-019-1113-2.

Clinical observation of a novel technique: transscleral suture fixation of a foldable 3-looped haptics one-piece posterior chamber intraocular lens implantation through scleral pockets with intact conjunctiva

Affiliations

Clinical observation of a novel technique: transscleral suture fixation of a foldable 3-looped haptics one-piece posterior chamber intraocular lens implantation through scleral pockets with intact conjunctiva

Shuang Ni et al. BMC Ophthalmol. .

Abstract

Background: To present the follow-up outcomes of a modified technique of transscleral suture fixation of posterior chamber intraocular lens (PCIOL) in eyes with inadequate capsule support.

Methods: A retrospective chart review of 21 patients underwent transscleral suture fixation of a foldable 3-looped haptics one-piece PCIOL implantation through scleral pockets was conducted. Preoperative data and follow-up data for at least 3 months were collected for all patients.

Results: The mean operative duration was 36.62 ± 10.70 min. The mean pre- and post-operative LogMAR uncorrected distance visual acuity was (1.25 ± 0.50 vs. 0.41 ± 0.22, P < 0.01). The mean pre- and post-operative LogMAR best corrected visual acuity was (0.48 ± 0.25 vs. 0.33 ± 0.24, P < 0.01). The mean proportion of postoperative endothelial cell loss was 11.46 ± 4.78%. The mean postoperative anterior chamber depth was 3.05 ± 0.44 mm. The mean postoperative IOL tilt degree was 2.81 ± 1.41°, and the mean postoperative IOL decentration degree was 0.31 ± 0.13 mm. Four patients with transient corneal edema (19.0%) and three patients with transiently elevated IOP (14.3%) were observed after operation, and such complications were resolved within 1 week. No severe complications were observed.

Conclusions: The modified technique was a feasible method of PCIOL implantation.

Keywords: Absence of capsule support; Posterior chamber intraocular lens; Scleral pocket; Transscleral suture fixation.

PubMed Disclaimer

Conflict of interest statement

Ethics approval and consent to participate

The study was performed in accordance with the tenets of the Declaration of Helsinki. The data documentation and retrospective analysis were approved by the Ethics Committee of the Second Affiliated Hospital, Zhejiang University School of Medicine. According to the approval of the Ethics Committee, the data for this retrospective analysis were evaluated pseudonymized and no patient informed consent was required.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Figures

Fig. 1
Fig. 1
Schematic procedures of modified technique for PCIOL fixation. a Three 3-mm wide limbus-parallel half-thickness corneal incisions were made at the limbus. b Three 3 × 2 mm scleral pockets were dissected. A 3.5-mm wide superior corneal incision was made. c A double-armed suture was tied to one haptic of the PCIOL, and one of its needle suture was passed through the superior corneal incision and guided out of the eye from scleral pockets by a docking hollow needle. d The other needle suture was passed through the superior corneal incision and guided out at an adjacent position in the same way. e Sutures were tied on every haptic of the PCIOL and guided out of the eye from their corresponding scleral pocket beds. f The PCIOL position was set by adjusting tension of each suture knot
Fig. 2
Fig. 2
Operative photos of the modified technique for PCIOL fixation. a Three scleral pockets were made at marked positions. b A double-armed suture was tied to one haptic of the PCIOL by cow-hitch knot. c A hollow needle was passed through the scleral pocket bed into the eye to dock and guide out the suture needle coming from the superior corneal incision. d Another hollow needle was inserted into the eye at an adjacent point to dock and guide out the other needle of the previous double-armed suture. e Sutures were tied on every haptic of the PCIOL and guided out of the eye from their corresponding scleral pocket bed. f The PCIOL was folded and inserted through the superior incision. g The PCIOL position was set by adjusting tension of each suture knot. h Severe iris and pupil damage was repaired. i Scleral pockets and superior corneal incision were sutured
Fig. 3
Fig. 3

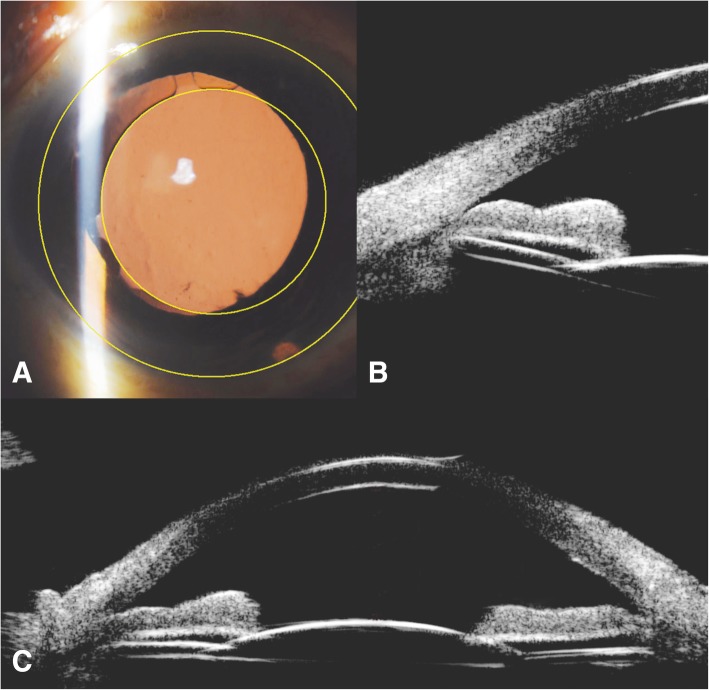

Anterior segment and UBM images of the implanted PCIOL. a Anterior segment photography of the PCIOL. The yellow circles represented the edge of PCIOL optic and best-fit circles created from upper and lower limbus. b UBM image showed that the haptic of PCIOL was placed at ciliary sulcus. c A typical UBM imaging with a PCIOL implanted

References

    1. Mizuno Y, Sugimoto Y. A comparative study of transscleral suture-fixated and scleral-fixated intraocular lens implantation. Int Ophthalmol. 2018;1:1–7. - PubMed
    1. Price Marianne O., Price Francis W., Werner Liliana, Berlie Cecil, Mamalis Nick. Late dislocation of scleral-sutured posterior chamber intraocular lenses. Journal of Cataract & Refractive Surgery. 2005;31(7):1320–1326. doi: 10.1016/j.jcrs.2004.12.060. - DOI - PubMed
    1. Buckley EG. Safety of transscleral-sutured intraocular lenses in children. J AAPOS. 2008;12(5):431–439. doi: 10.1016/j.jaapos.2008.04.016. - DOI - PubMed
    1. Long C, Wei Y, Yuan Z, Zhang Z, Lin X, Liu B. Modified technique for transscleral fixation of posterior chamber intraocular lenses. BMC Ophthalmol. 2015;15:127. doi: 10.1186/s12886-015-0118-8. - DOI - PMC - PubMed
    1. Haszcz D, Nowomiejska K, Oleszczuk A, Forlini C, Forlini M, Moneta-Wielgos J, Maciejewski R, Michalska-Malecka K, Junemann AG, Rejdak R. Visual outcomes of posterior chamber intraocular lens intrascleral fixation in the setting of postoperative and posttraumatic aphakia. BMC Ophthalmol. 2016;16(1):50. doi: 10.1186/s12886-016-0228-y. - DOI - PMC - PubMed
