. 2019 May 23;7(5):125.
doi: 10.3390/sports7050125.

Agreement between the Open Barbell and Tendo Linear Position Transducers for Monitoring Barbell Velocity during Resistance Exercise

Adam M Gonzalez  1 , Gerald T Mangine  2 , Robert W Spitz  3 , Jamie J Ghigiarelli  4 , Katie M Sell  5
Affiliations

Agreement between the Open Barbell and Tendo Linear Position Transducers for Monitoring Barbell Velocity during Resistance Exercise

Adam M Gonzalez et al. Sports (Basel). .

Abstract

To determine the agreement between the Open Barbell (OB) and Tendo weightlifting analyzer (TWA) for measuring barbell velocity, eleven men (19.4 ± 1.0 y) performed one set of 2-3 repetitions at four sub-maximal percentage loads, [i.e., 30, 50, 70, and 90% one-repetition maximum (1RM)] in the back (BS) and front squat (FS) exercises. During each repetition, peak and mean barbell velocity were recorded by OB and TWA devices, and the average of the 2-3 repetitions was used for analyses. Although the repeated measures analysis of variance revealed significantly (p ≤ 0.005) greater peak and mean velocity scores from OB across all intensities, high intraclass correlation coefficients (ICC2,K = 0.790-0.998), low standard error of measurement (SEM2,K = 0.040-0.119 m·s-1), and coefficients of variation (CV = 2-4%) suggested consistency between devices. Positive (r = 0.491-0.949) Pearson correlations between averages and differences (between devices) in peak velocity, as well as associated Bland-Altman plots, showed greater differences occurred as the velocity increased, particularly at low-moderate intensity loads. OB consistently provides greater barbell velocity scores compared to TWA, and the differences between devices were more apparent as the peak velocity increased with low-to-moderate loads. Strength coaches and athletes may find better agreement between devices if the mean velocity scores are only considered.

Keywords: bar speed; movement velocity; squat; velocity-based training; weightlifting.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
Peak and mean barbell velocity across intensity load during the (a) back squat and (b) front squat exercises. * = Significant (p < 0.05) difference between open barbell (OB) (Solid line with black circle) and Tendo weightlifting analyzer (TWA) (Dashed line with open square). # = Significant (p < 0.05) difference across all intensities.
Figure 2
Figure 2

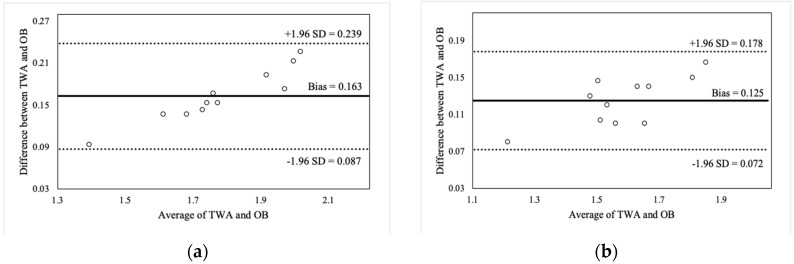

Bland-Altman plot comparisons for peak barbell velocity during the back squat at (a) 30% of 1RM; (b) 50% of 1RM; (c) 70% of 1RM; and (d) 90% of 1RM.
Figure 2
Figure 2

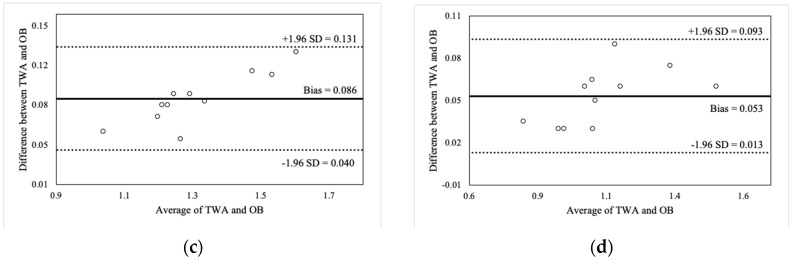

Bland-Altman plot comparisons for peak barbell velocity during the back squat at (a) 30% of 1RM; (b) 50% of 1RM; (c) 70% of 1RM; and (d) 90% of 1RM.
Figure 3
Figure 3

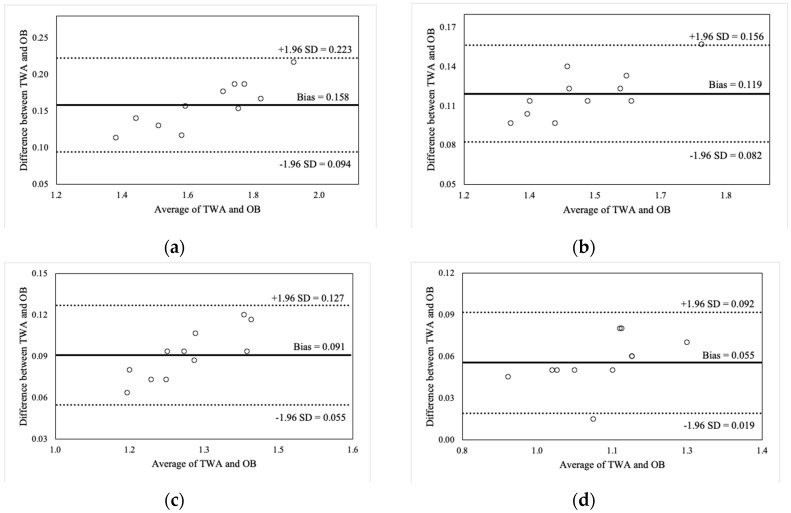

Bland-Altman plot comparisons for peak barbell velocity during the front squat at (a) 30% of 1RM; (b) 50% of 1RM; (c) 70% of 1RM; and (d) 90% of 1RM.
Figure 4
Figure 4

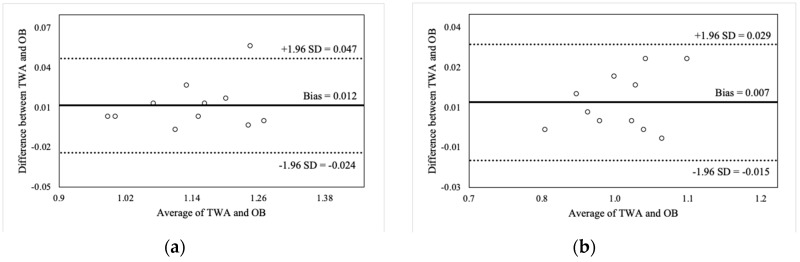

Bland-Altman plot comparisons for mean barbell velocity during the back squat at (a) 30% of 1RM; (b) 50% of 1RM; (c) 70% of 1RM; and (d) 90% of 1RM.
Figure 4
Figure 4

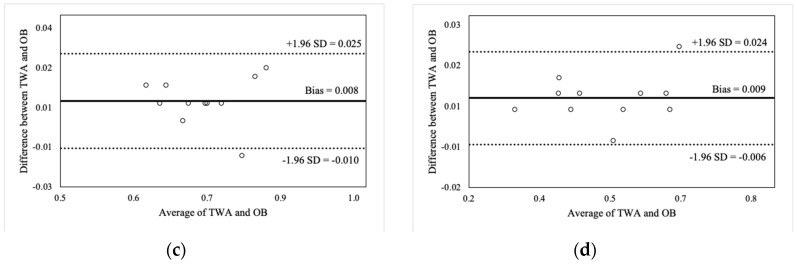

Bland-Altman plot comparisons for mean barbell velocity during the back squat at (a) 30% of 1RM; (b) 50% of 1RM; (c) 70% of 1RM; and (d) 90% of 1RM.
Figure 5
Figure 5

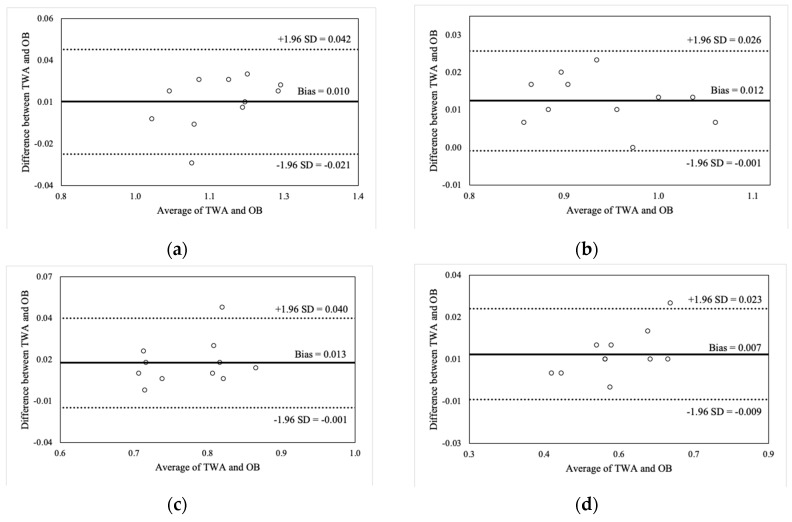

Bland-Altman plot comparisons for mean barbell velocity during the front squat at (a) 30% of 1RM; (b) 50% of 1RM; (c) 70% of 1RM; and (d) 90% of 1RM.
