In vitro study of effects of aging and processing conditions on colour change in maxillofacial silicone elastomers

Ebru Demet Cifter  1 , Meltem Ozdemir-Karatas  2 , Adem Cinarli  3 , Erkan Sancakli  2 , Ali Balik  2 , Gulumser Evlioglu  2
Affiliations

In vitro study of effects of aging and processing conditions on colour change in maxillofacial silicone elastomers

Ebru Demet Cifter et al. BMC Oral Health. .

Abstract

Background: The inherent colour change in maxillofacial silicone elastomers becomes perceptible 6-12 months after fabrication. Determining the factors that accelerate the degradation of the prosthesis can help the clinicians increase its life span. Therefore, the aim of the study was to investigate the effect of time passage, processing temperature, and molding-stone colour on the colour change of maxillofacial silicone elastomers after darkroom storage for 6000 h.

Methods: A total of ten study molds, each incorporating ten specimen gaps were fabricated using five different colors of dental stones. The gaps were filled with coloured Cosmesil M511 maxillofacial silicone elastomer. Five of the study molds, one of each stone color, were processed at room temperature (25 °C) for 24 h while the remainder were vulcanized at 100 °C for 1 h. Two stainless-steel molds were also fabricated to obtain a total of twenty control-group specimens of the same dimensions that were processed under the same conditions as the study molds. Colour measurements of the vulcanized silicone samples were performed using a Konica Minolta spectrophotometer. Initial measurements were obtained after the blocks were removed from the molds and the final measurements were recorded 6000 h after storage in the dark at 25 °C and 40% relative humidity. The CIEDE2000 colour-difference formula was used to measure the changes in the colour. One-way and two-way ANOVA, and an independent-sample t-test were used for statistical assessments.

Results: For every group, the colour change exceeded the perceptible thresholds. Thus, either the vulcanization temperature or the colour of the molding stone has a significant effect on the colour change over time. Those samples vulcanized in green and white molding stones at 100 °C exhibited a significantly higher ∆L*, ∆a*, and ∆b* values relative to the samples vulcanized at room temperature.

Conclusion: The molding-stone colour and vulcanization temperature both affect the degree of colour change after storage in a dark environment. The L*, a*, and b* values for the maxillofacial silicone elastomers are influenced by the direction of the increase or decrease according to the selected colour. This effect varies as the temperature increases.

Keywords: Colour; Dark room; Dental stone; Elastomer; Maxillofacial; Silicone; Time passage.

PubMed Disclaimer

Conflict of interest statement

The authors declare that they have no competing interests.

Figures

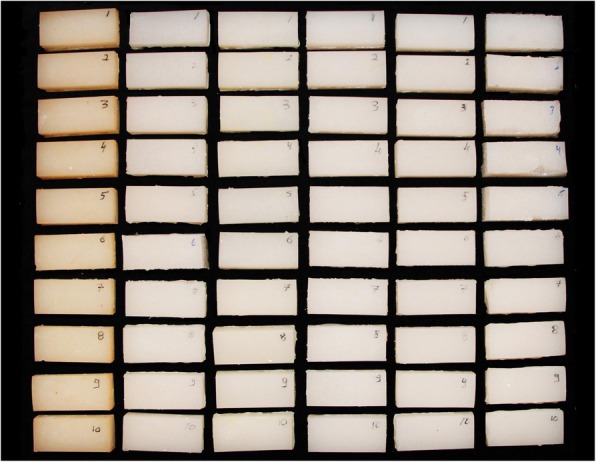

Fig. 1
Fig. 1
M 511 Maxillofacial silicone elastomer samples

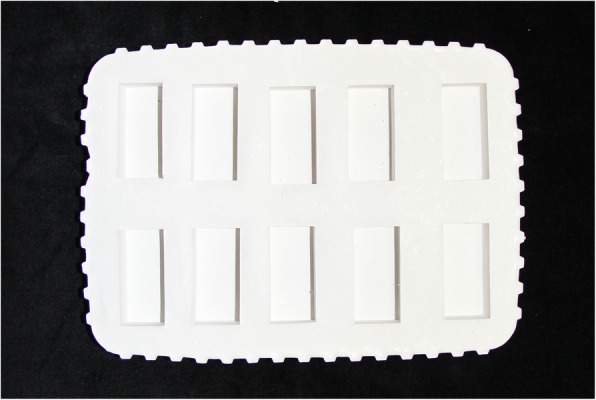

Fig. 2
Fig. 2
Mold used for vulcanization of white-group samples

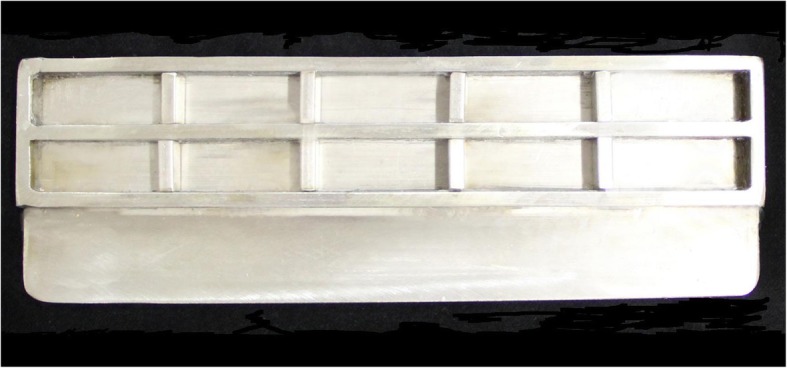

Fig. 3
Fig. 3
Stainless steel mold fabricated to vulcanize control group samples

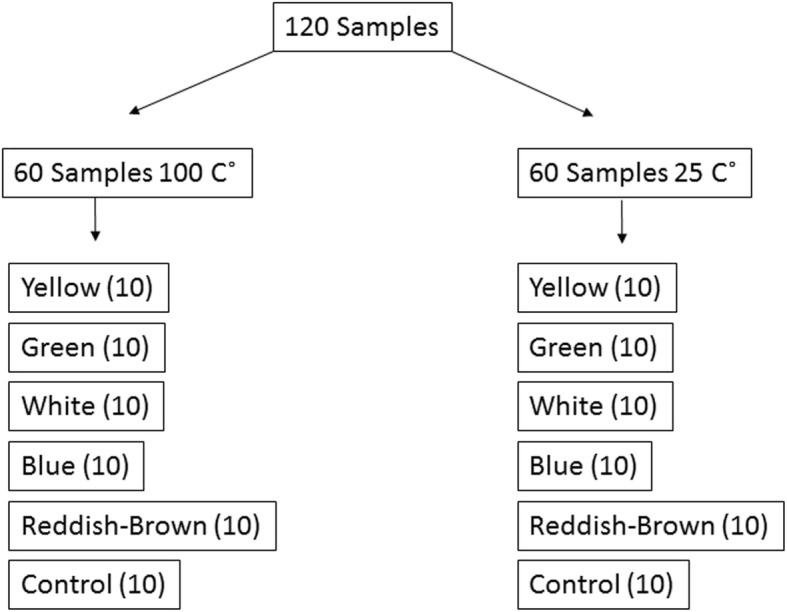

Fig. 4
Fig. 4
Flow-chart of the study samples
See this image and copyright information in PMC

References

    1. Beumer J, Curtis TA. Maxillofacial rehabilitation: prosthodontics and surgical considerations. St. Louis: Ishiyaku EuroAmerica Inc; 1996. pp. 1–11.
    1. Over LM, Andres CJ, Moore BK, Goodacre CJ, Muñoz CA. Using a colorimeter to develop an intrinsic silicone shade guide for facial prostheses. J Prosthodont. 1998;7(4):237–249. doi: 10.1111/j.1532-849X.1998.tb00212.x. - DOI - PubMed
    1. Ellias HG, Mülhaupt R. Plastics, general survey, 1. Definition, molecular structure and properties. In: Elvers B, editor. Ulmann’s polymers and plastics: products and process, volume 1. Germany: Willey-VCH; 2016. pp. 37–68.
    1. O’Brien WJ. Dental materials and their selection. 4th ed. Chicago: Quintessence Publishing Company, Inc., pp. 38-62.
    1. Kulkarni RS, Nagda SJ. Colour stability of maxillofacial silicone elastomers: a review of the literature. Eur J Prosthodont Restor Dent. 2014;22(3):108–115. - PubMed
