. 2019 Jun 28;24(13):2398.
doi: 10.3390/molecules24132398.

Flavonoids from Morus alba L. Leaves: Optimization of Extraction by Response Surface Methodology and Comprehensive Evaluation of Their Antioxidant, Antimicrobial, and Inhibition of α-Amylase Activities through Analytical Hierarchy Process

Hao Cui  1   2 , Tenghui Lu  1 , Mingxin Wang  1 , Xintong Zou  1 , Yang Zhang  1 , Xiudong Yang  1 , Yao Dong  3 , Hongli Zhou  4   5
Affiliations

Flavonoids from Morus alba L. Leaves: Optimization of Extraction by Response Surface Methodology and Comprehensive Evaluation of Their Antioxidant, Antimicrobial, and Inhibition of α-Amylase Activities through Analytical Hierarchy Process

Hao Cui et al. Molecules. .

Abstract

To explore the flavonoids from Morus alba L. leaves (MLF), the process of extracting was optimized by a response surface methodology and the antimicrobial and antioxidant activities were evaluated in vitro. The yield of flavonoids reached 50.52 mg g-1 under the optimized extraction conditions (i.e., extraction temperature, 70.85 °C; solvent concentration, 39.30%; extraction time, 120.18 min; and liquid/solid ratio, 34.60:1). The total flavonoids were extracted in organic solvents with various polarities, including petroleum ether (MLFp), ethyl acetate (MLFe), and n-butanol (MLFb). In vitro, the four MLF samples exhibited good antioxidant activities for scavenging of 2, 2'-azinobis-(3-ethylbenz-thiazoline-6-sulphonate) radical, 1, 1-diphenyl-2-picrylhydrazyl radical, and total reducing power. Regarding antimicrobial efficacy, the MLF samples suppressed the development of Staphylococcus aureus, Bacillus subtilis, and Bacillus pumilus. The MLF samples inhibited α-amylase activity to a certain extent. The analytical hierarchy process (AHP) was used to evaluate comprehensively the bioactivities of the MLF samples. The AHP results revealed that the bioactivity comprehensive score (78.83 μg mL-1) of MLFe was optimal among the four MLF samples. Morus alba L. leaves also exhibited non-hemolytic properties. All bioactivities suggested the potential of MLFe as a candidate resource in the food and drug industries.

Keywords: AHP; bioactivities; evaluate comprehensively; extraction conditions; flavonoids; in vitro; mulberry leaves; optimization.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1

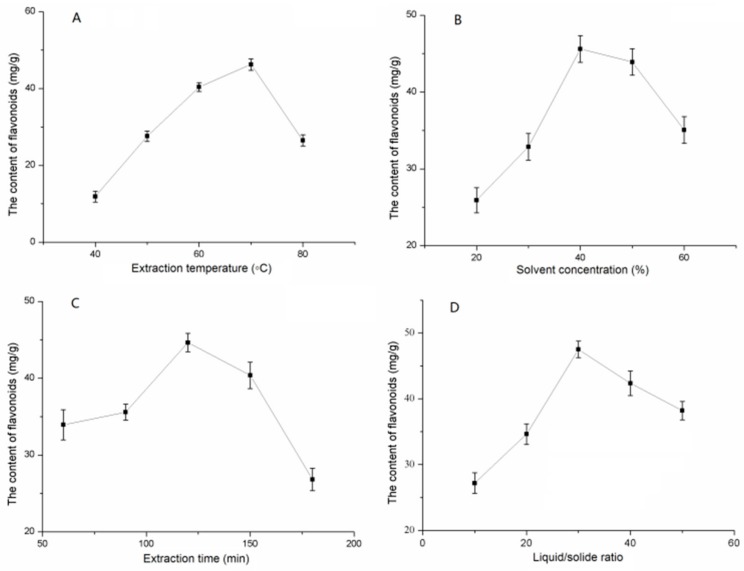

The effect of single factors on the extraction of Morus alba L. leaves (MLF). (A) Extraction temperature (°C); (B) solvent concentration (%); (C) extraction time (min); (D) liquid/solid ratio. Data are shown as mean ± SD (n = 3).
Figure 2
Figure 2
The studentized residuals and predicted response plot.
Figure 3
Figure 3
Contour plots showing the effects of the ratio of two single factors. (A) Extraction temperature (°C) versus solvent concentration; (B) extraction temperature (°C) versus extraction time; (C) extraction temperature (°C) versus liquid/solid ratio; (D) solvent concentration versus extraction time; (E) solvent concentration versus liquid/solid ratio; (F) extraction time (min) versus liquid/solid ratio concentration.
Figure 4
Figure 4
The proposed analytical hierarchy process model.
Figure 5
Figure 5
Hemolysis analysis of MLFe.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Vichasilp C., Nakagawa K., Sookwong P., Suzuki Y., Kimura F., Higuchi O., Miyazawa T. Optimization of 1-deoxynojirimycin extraction from mulberry leaves by using response surface methodology. Biosci. Biotechnol. Biochem. 2009;73:2684–2689. doi: 10.1271/bbb.90543. - DOI - PubMed
    1. Han R.M., Zhang J.P., Skibsted L.H. Reaction dynamics of flavonoids and carotenoids as antioxidants. Molecules. 2012;17:2140–2160. doi: 10.3390/molecules17022140. - DOI - PMC - PubMed
    1. Li W., Li T., Tang K. Flavonoids from mulberry leaves by microwave-assisted extract and anti-fatigue activity. Nurs. Clin. North Am. 2009;40:898–902.
    1. Katsube T., Imawaka N., Kawano Y., Yamazaki Y., Shiwaku K., Yamane Y. Antioxidant flavonol glycosides in mulberry (Morus alba L.) leaves isolated based on LDL antioxidant activity. Food Chem. 2006;97:25–31. doi: 10.1016/j.foodchem.2005.03.019. - DOI
    1. Kim G.N., Jang H.D. Flavonol content in the water extract of the mulberry (Morus alba L.) leaf and their antioxidant capacities. J. Food Sci. 2011;76:869–873. doi: 10.1111/j.1750-3841.2011.02262.x. - DOI - PubMed
