. 2019 Jul 3;11(7):1129.
doi: 10.3390/polym11071129.

Flame Retardancy and Toughness of Poly(Lactic Acid)/GNR/SiAHP Composites

Ningjing Wu  1 , Jihang Yu  2 , Wenchao Lang  3 , Xiaobing Ma  2 , Yue Yang  2
Affiliations

Flame Retardancy and Toughness of Poly(Lactic Acid)/GNR/SiAHP Composites

Ningjing Wu et al. Polymers (Basel). .

Abstract

A novel flame-retardant and toughened bio-based poly(lactic acid) (PLA)/glycidyl methacrylate-grafted natural rubber (GNR) composite was fabricated by sequentially dynamical vulcanizing and reactive melt-blending. The surface modification of aluminum hypophosphite (AHP) enhanced the interfacial compatibility between the modified aluminum hypophosphite by silane (SiAHP) and PLA/GNR matrix and the charring ability of the PLA/GNR/SiAHP composites to a certain extent, and the toughness and flame retardancy of the PLA/GNR/SiAHP composites were slightly higher than those of PLA/GNR/AHP composites, respectively. The notched impact strength and elongation of the PLA composite with 20 wt. %GNR and 18 wt.% SiAHP were 13.1 kJ/m2 and 72%, approximately 385% and 17 fold higher than those of PLA, respectively, and its limiting oxygen index increased to 26.5% and a UL-94 V-0 rating was achieved. Notedly, the very serious melt-dripping characteristics of PLA during combustion was completely suppressed. The peak heat release rate and total heat release values of the PLA/GNR/SiAHP composites dramatically reduced, and the char yield obviously increased with an increasing SiAHP content in the cone calorimeter test. The good flame retardancy of the PLA/GNR/SiAHP composites was suggested to be the result of a synergistic effect involving gaseous and condensed phase flame-retardant mechanisms. The high-performance flame-retardant PLA/GNR/SiAHP composites have great potential application as replacements for petroleum-based polymers in the automotive interior and building fields.

Keywords: PLA composite; flame retardancy; melt-dripping resistance; surface modification; toughness.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1

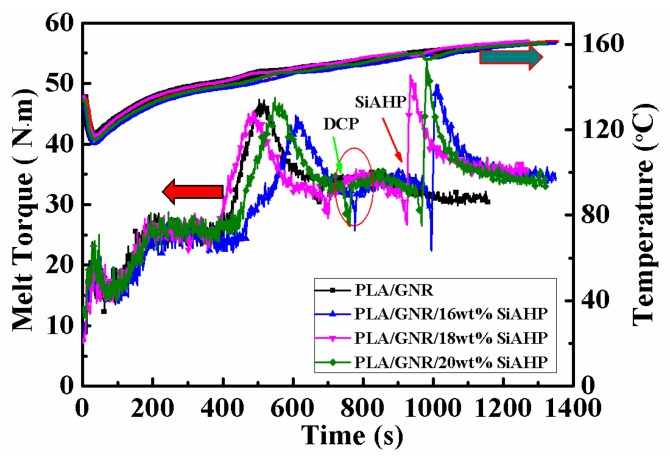

Melt torque–time curves of the PLA/GNR/SiAHP composites.
Figure 2
Figure 2

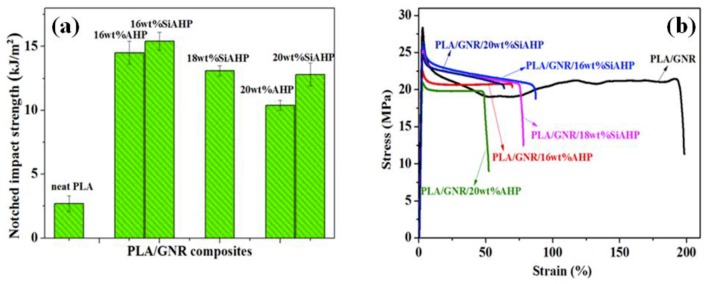

Mechanical properties of PLA, PLA/GNR TPV, PLA/GNR/AHP, and PLA/GNR/SiAHP composites: (a) notched impact strength, (b) stress–strain curves.
Figure 3
Figure 3
SEM images of cryo-fractured surface for PLA/GNR/AHP and PLA/GNR/SiAHP composites. (a, a’) PLA/GNR/16wt%AHP; (b, b’) PLA/GNR/20wt%AHP; (c, c’) PLA/GNR/16wt% SiAHP; (d, d’) PLA/GNR/20wt%SiAHP.
Figure 4
Figure 4
SEM images of the impact-fractured surface for the PLA/GNR/AHP and PLA/GNR/SiAHP composites. (a, a’) PLA/GNR/16wt%AHP; (b, b’) PLA/GNR/20wt%AHP; (c, c’) PLA/GNR/16wt% SiAHP; and (d, d’) PLA/GNR /20wt%SiAHP.
Figure 5
Figure 5

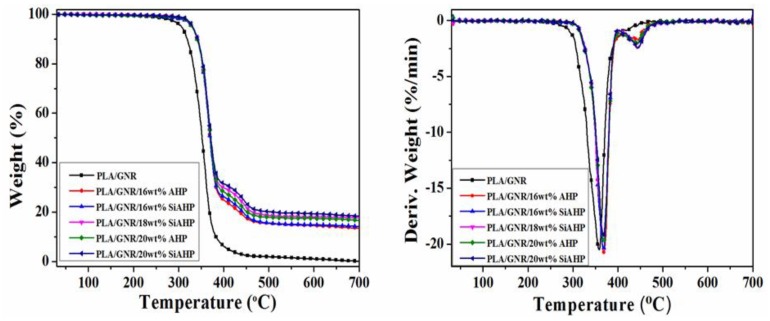

TG and DTG curves of the PLA/GNR and FR PLA/GNR composites under N2 atmosphere.
Figure 6
Figure 6

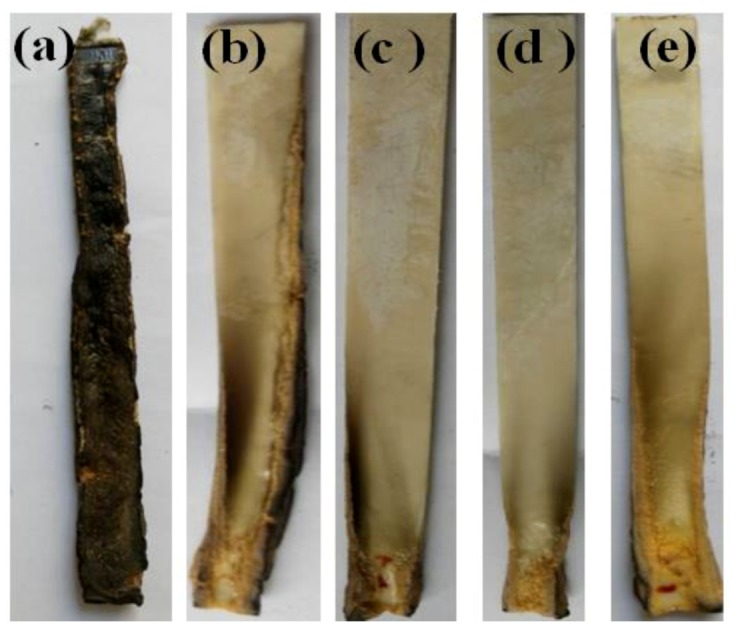

Digital photographs of PLA/GNR and PLA/GNR/SiAHP composites after UL-94 vertical burning tests. (a) PLA/GNR/16wt%AHP; (b) PLA/GNR/16wt%SiAHP; (c) PLA/GNR/18wt%SiAHP; (d) PLA/GNR/20wt%AHP; (e) PLA/GNR/20wt%SiAHP.
Figure 7
Figure 7

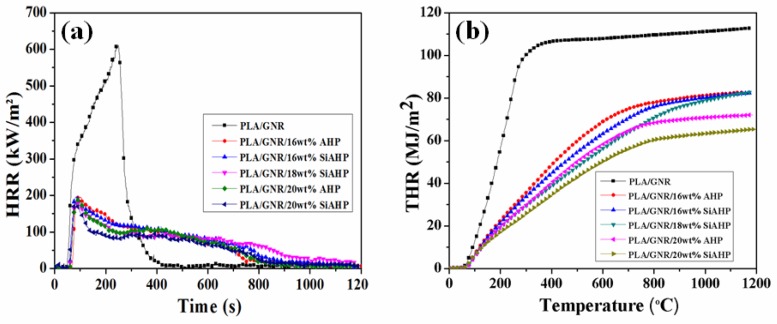

Heat release rate (HRR) (a) and total release rate (THR) (b) curves of the PLA/GNR TPV and FR PLA/GNR composites.
Figure 8

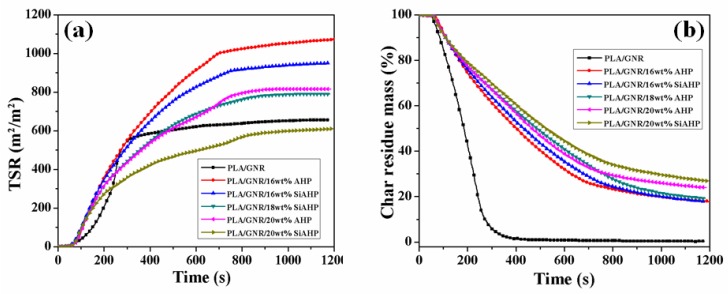

Figure 8
Total smoke release (TSR) (a) and char residue mass (CR) (b) curves of PLA/GNR TPV and FR PLA/GNR composites.
Figure 9
Figure 9

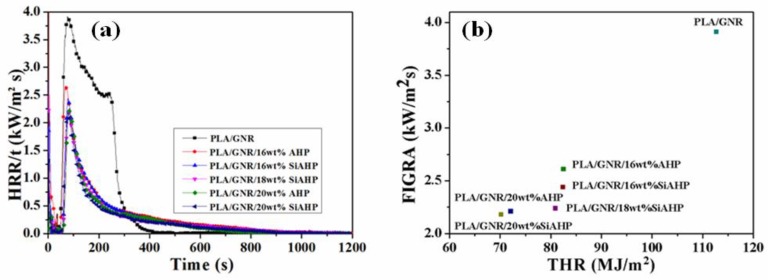

HRR(t)/t versus time curves of PLA/GNR TPV and FR PLA/GNR composites (a) and FIGRA versus THR (b).
Figure 10

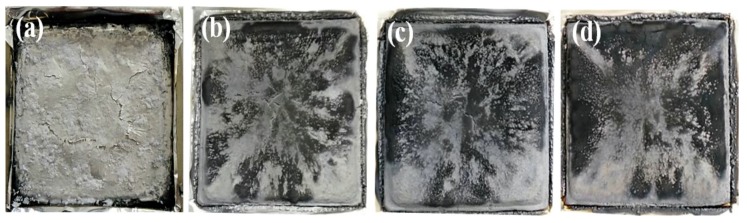

Figure 10
Digital photos of char residues for PLA/GNR TPV (a); PLA/GNR/16wt%SiAHP (b); PLA/GNR/18wt%SiAHP (c); PLA/GNR/20wt%SiAHP (d) after the cone calorimeter test.
Figure 11
Figure 11
SEM images of char residues for PLA/GNR/SiAHP composites. (a, a’) PLA/GNR/16wt% SiAHP; (b, b’) PLA/GNR/18wt%SiAHP; (c, c’) PLA/GNR/20wt%SiAHP.
