Physiological synchronization and entropy as measures of team cognitive load

Abstract

The operating room (OR) is a high-risk and complex environment, where multiple specialized professionals work as a team to effectively care for patients in need of surgical interventions. Surgical tasks impose high cognitive demands on OR staff and cognitive overload may have deleterious effects on team performance and patient safety. The aim of the present study was to investigate the feasibility and describe a novel methodological approach to characterize dynamic changes in team cognitive load by measuring synchronization and entropy of heart rate variability parameters during real-life cardiac surgery. Cognitive load was measured by capturing interbeat intervals (IBI) from three team members (surgeon, anesthesiologist and perfusionist) using an unobtrusive wearable heart rate sensor and transmitted in real-time to a smartphone application. Clinical data and operating room audio/video recordings were also collected to provide behavioral and contextual information. We developed symbolic representations of the transient cognitive state of individual team members (Individual Cognitive State - ICS), and overall team (Team Cognitive State - TCS) by comparing IBI data from each team member with themselves and with others. The distribution of TCS symbols during surgery enabled us to display and analyze temporal states and dynamic changes of team cognitive load. Shannon's entropy was calculated to estimate the changing levels of team organization and to detect fluctuations resulting from a variety of cognitive demands and/or specific situations (e.g. medical error, emergency, flow disruptions). An illustrative example from a real cardiac surgery team shows how cognitive load patterns shifted rapidly after an actual near-miss medication event, leading the team to a more organized and synchronized state. The methodological approach described in this study provides a measurement technique for the assessment of team physiological synchronization, which can be applied to many other team-based environments. Future research should gather additional validity evidence to support the proposed methods for team cognitive load measurement.

Keywords: Cognitive load; Heart rate variability; Physiological synchronization; Surgery; Teamwork.

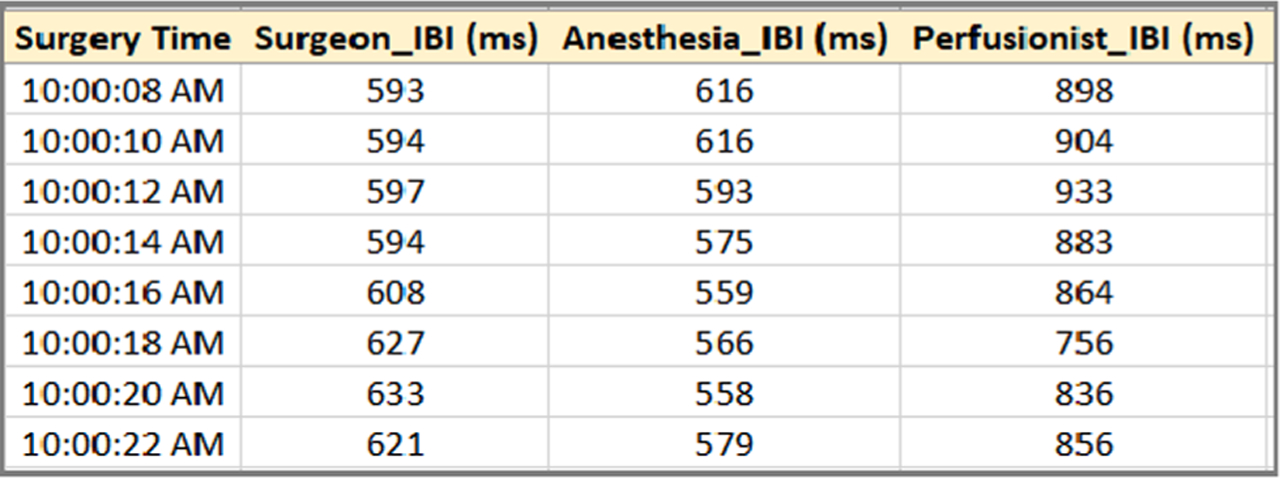

Fig. 1.

Team member’s IBI (in milliseconds) for each 2-s epoch.

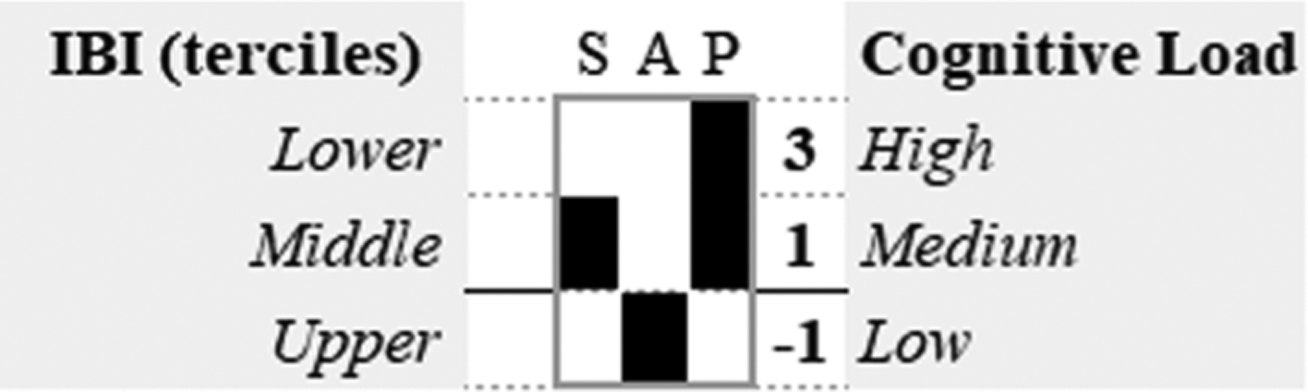

Fig. 2.

Examples of ICS symbols based on interbeat intervals (IBI) from each team member: surgeon (S), anesthesiologist (A) and perfusionist (P).

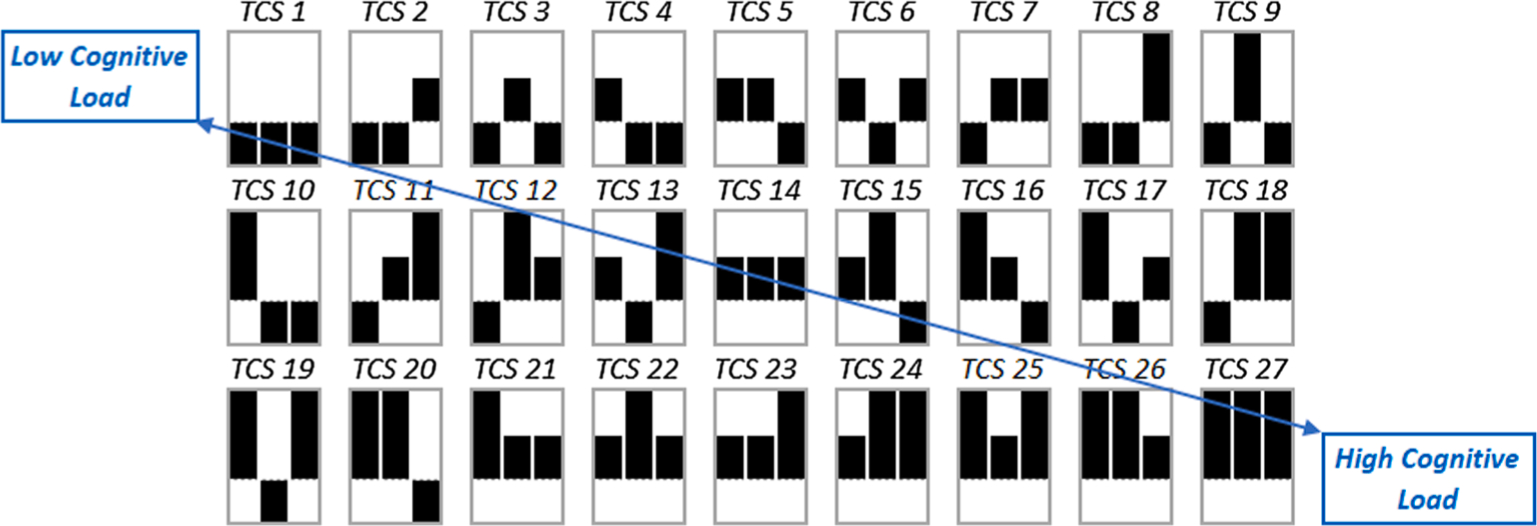

Fig. 3.

Representation of all possible combinations (TCS – team cognitive state) between individual cognitive states (ICS).

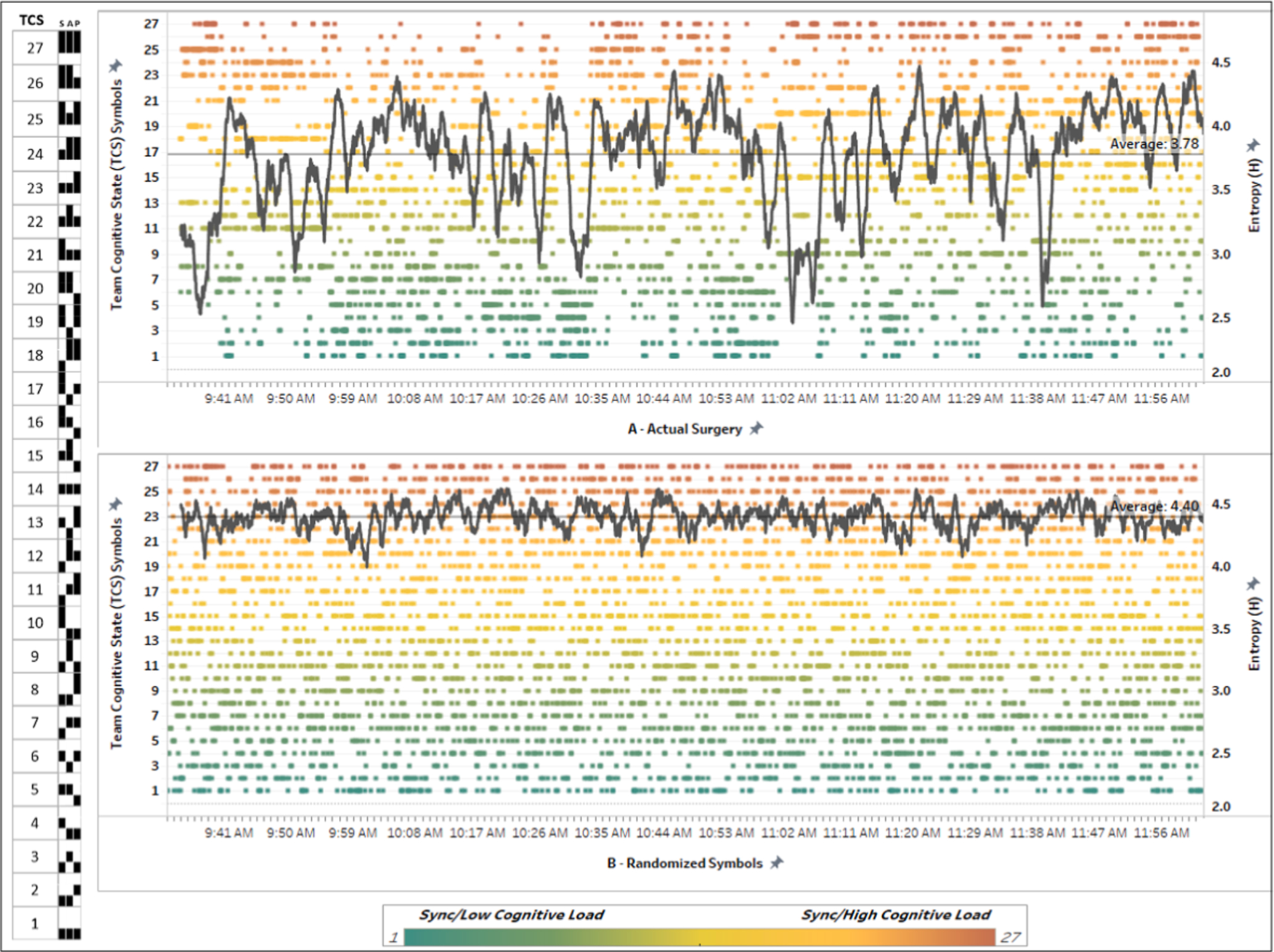

Fig. 4.

Distribution of TCS in an actual surgery (A) and a hypothetical team (B) with randomized symbols. The y axis represents the 27 possible TCS and the x axis shows the surgery time. From TCS 1 to TCS 27 the team cognitive load increases as illustrated in the bottom color-coded tile (green to red gradient). The left bar with TCS shows the combination of individual states (S: surgeon, A: anesthesiologists, P: perfusionist) composing each symbol (refers to Fig. 2 for interpreting individual states). (For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article.)

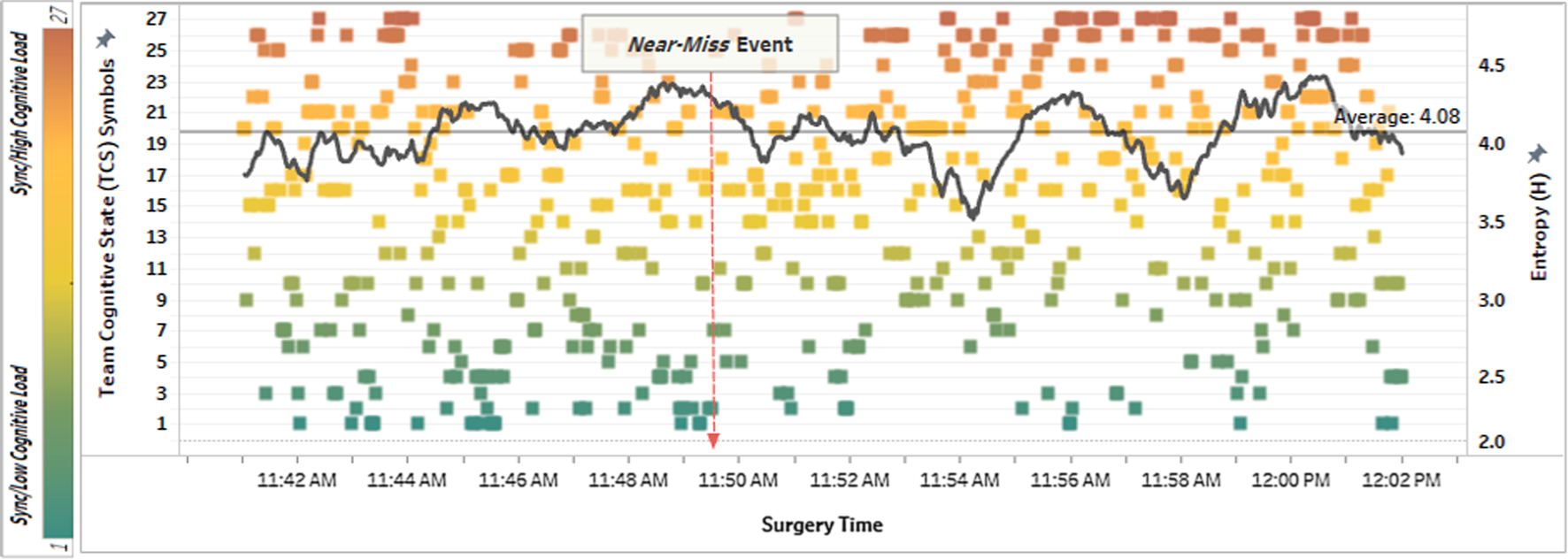

Fig. 5.

Synchronization increase, and entropy decrease after a near-miss event that mobilizes the entire surgical team towards a strategy to avoid patient harm.

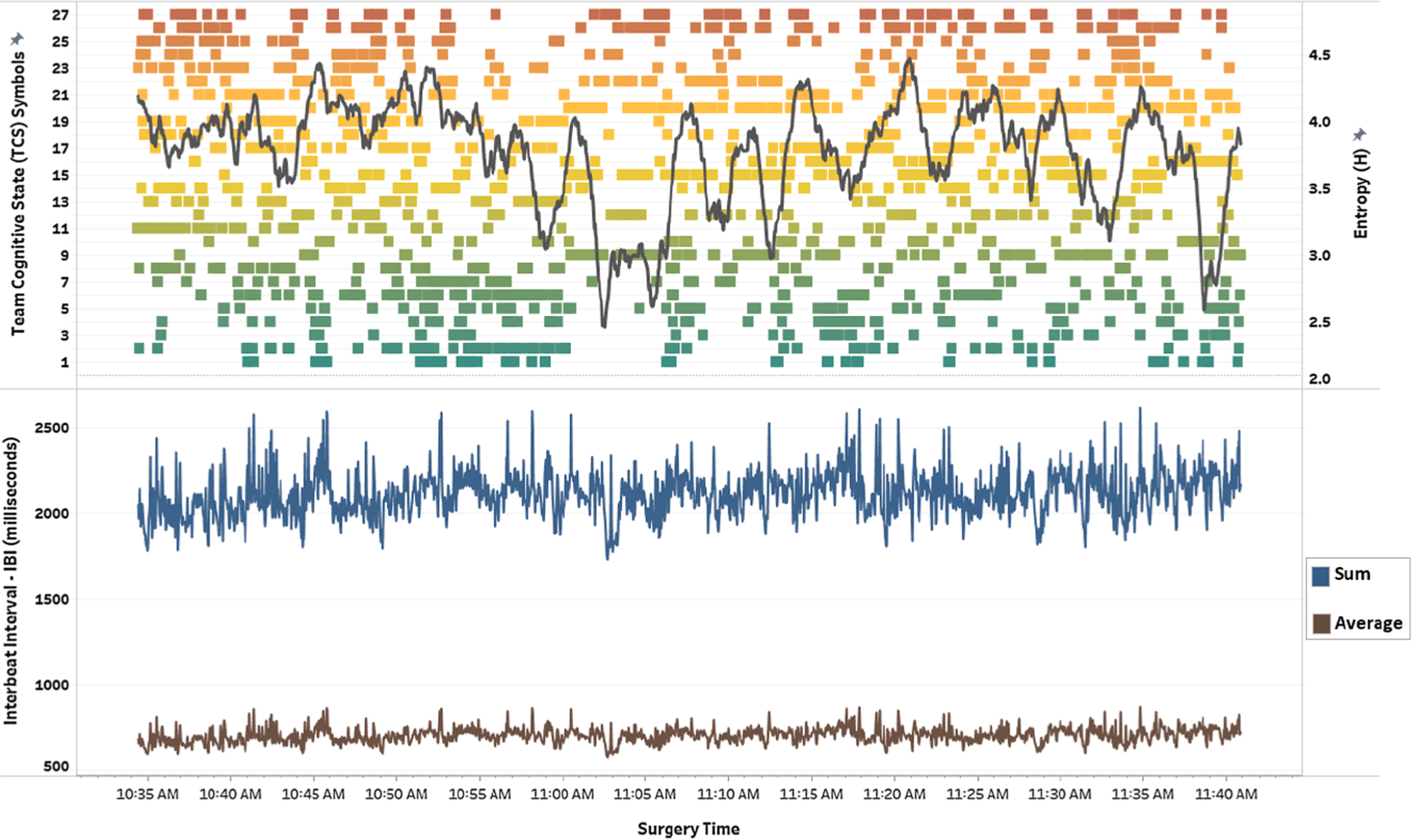

Fig. 6.

Comparison between the proposed approach and traditional measures of team cognitive load.
