Review
. 2019 Jul 1;4(Suppl 5):e001606.
doi: 10.1136/bmjgh-2019-001606. eCollection 2019.

From paper maps to digital maps: enhancing routine immunisation microplanning in Northern Nigeria

Leanne Dougherty  1 , Masduq Abdulkarim  1 , Fiyidi Mikailu  1 , Usman Tijani  1 , Kazeem Owolabi  2 , Kate Gilroy  1 , Ahmed Naiya  1 , Adamu Abdullahi  3 , Hadiza Bodinga  4 , Folake Olayinka  1 , Imelda Moise  5
Affiliations
Review

From paper maps to digital maps: enhancing routine immunisation microplanning in Northern Nigeria

Leanne Dougherty et al. BMJ Glob Health. .

Abstract

Geographical information systems (GIS) can be effective decision-support tools. In this paper, we detail a GIS approach implemented by the Bauchi and Sokoto state primary healthcare development agencies in Nigeria to generate and convert routine immunisation (RI) paper maps to digital maps for microplanning. The process involved three stages: primary and secondary data collection and reconciliation, geospatial data processing and analysis, and production and validation of maps. The data collection and reconciliation stage identified a number of challenges with secondary data sources, including the need to standardise and reconcile health facility and settlement names. The study team was unable to apply population estimates generated from the Global Polio Eradication Initiative to RI planning because operational boundaries for polio activities are defined differently from RI activities. Application of open-source GIS software enabled the combination of multiple datasets and analysis of geospatial data to calculate catchment areas for primary health centres (PHCs) and assign vaccination strategies to communities. The activity resulted in the development of PHC catchment area digital maps, and captured next steps and lessons learnt for RI microplanning in the two states. While the digital maps provided input into the microplanning process, more work is needed to build capacity, standardise processes and ensure the quality of data used to generate the maps. RI service providers and communities must be engaged in the process to validate, understand the data, the contextual factors that influence decisions about which vaccination strategies RI microplans include and how resources are allocated.

Keywords: GIS; immunization; mapping; microplanning; nigeria; sub-saharan africa.

PubMed Disclaimer

Conflict of interest statement

Competing interests: None declared.

Figures

Figure 1
Figure 1
Data cleaning and reconciliation work flow. RI, routine immunisation.
Figure 2
Figure 2

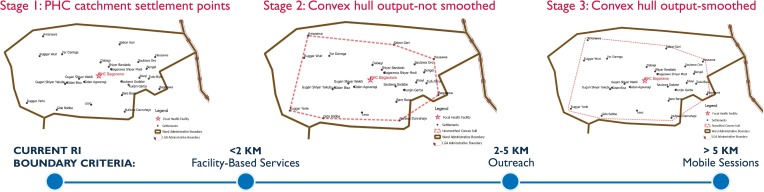

Geoprocessing stages to develop PHC catchment area polygons. PHC, primary health centre; RI, routine immunisation.
Figure 3
Figure 3
A hand-drawn MAP (left) and a GIS-generated MAP (right) of Miri primary health. GIS, geographical information systems.
See this image and copyright information in PMC

References

    1. Vandelaer J, et al. The reaching every district (RED) approach as a way to improve immunization performance. Bull World Health Organ 2008;86:240–B. 10.2471/BLT.07.042127 - DOI - PMC - PubMed
    1. Mwanamwenge A, Masumbu P, Mwansa F, et al. . Evaluation of the implementation of the reaching every district approach in routine immunisation in Lusaka district, Zambia. Med J Zambia 2016;43.
    1. Ryman T, Macauley R, Nshimirimana D, et al. . Reaching every district (RED) approach to strengthen routine immunization services: evaluation in the African region, 2005. J Public Health 2010;32:18–25. 10.1093/pubmed/fdp048 - DOI - PubMed
    1. Ryman TK, Trakroo A, Wallace A, et al. . Implementation and evaluation of the reaching every district (RED) strategy in Assam, India, 2005-2008. Vaccine 2011;29:2555–60. 10.1016/j.vaccine.2011.01.061 - DOI - PubMed
    1. Report of Nigeria's national population Commission on the 2006 census. Popul Dev Rev 2007;33:206–10.
