Parallel Architecture of Fully Convolved Neural Network for Retinal Vessel Segmentation

Sathananthavathi V  1 , Indumathi G  2 , Swetha Ranjani A  2
Affiliations

Parallel Architecture of Fully Convolved Neural Network for Retinal Vessel Segmentation

Sathananthavathi V et al. J Digit Imaging. 2020 Feb.

Abstract

Retinal blood vessel extraction is considered to be the indispensable action for the diagnostic purpose of many retinal diseases. In this work, a parallel fully convolved neural network-based architecture is proposed for the retinal blood vessel segmentation. Also, the network performance improvement is studied by applying different levels of preprocessed images. The proposed method is experimented on DRIVE (Digital Retinal Images for Vessel Extraction) and STARE (STructured Analysis of the Retina) which are the widely accepted public database for this research area. The proposed work attains high accuracy, sensitivity, and specificity of about 96.37%, 86.53%, and 98.18% respectively. Data independence is also proved by testing abnormal STARE images with DRIVE trained model. The proposed architecture shows better result in the vessel extraction irrespective of vessel thickness. The obtained results show that the proposed work outperforms most of the existing segmentation methodologies, and it can be implemented as the real time application tool since the entire work is carried out on CPU. The proposed work is executed with low-cost computation; at the same time, it takes less than 2 s per image for vessel extraction.

Keywords: Deep learning; Enhancement; Fully convolved neural network; Retinal vessel.

PubMed Disclaimer

Conflict of interest statement

The authors declare that they have no conflict of interest.

Figures

Fig. 1
Fig. 1

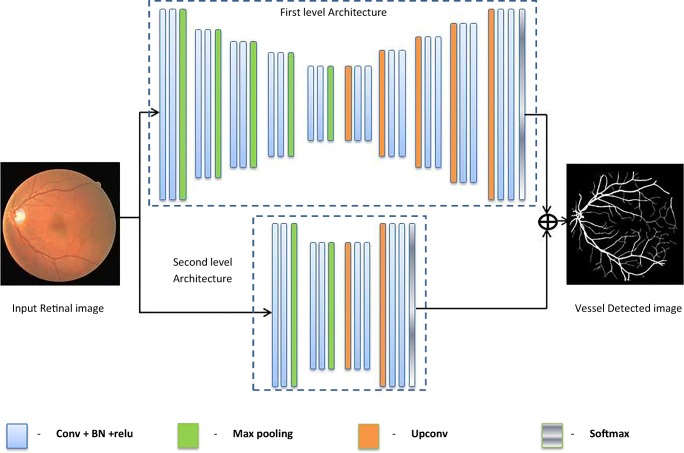

Proposed architecture
Fig. 2
Fig. 2
Training accuracy and loss
Fig. 3
Fig. 3
Training images. a RGB image; b, c, and d preprocessed images; e and f groundtruth for level I and II respectively
Fig. 4
Fig. 4
DRIVE sample images and groundtruth
Fig. 5
Fig. 5

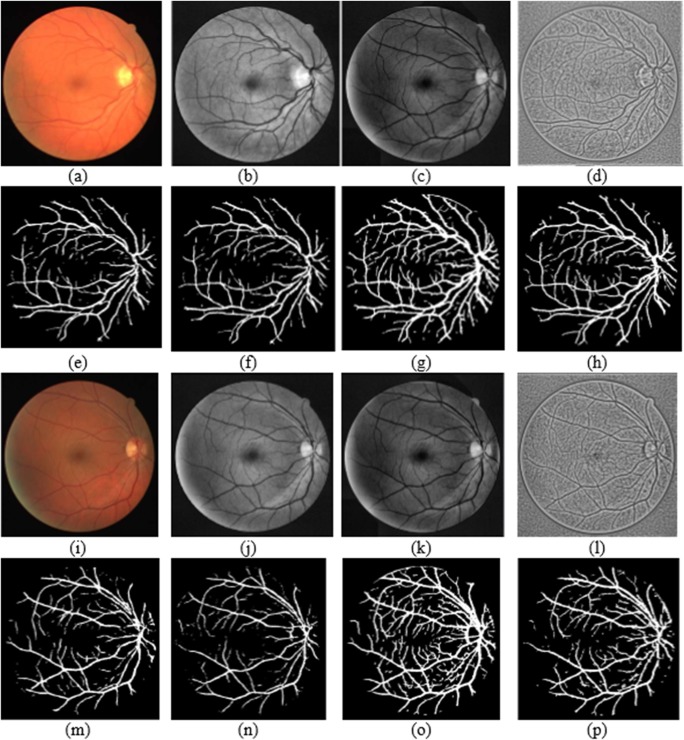

Output obtained for the random sample test images. a, i RGB input; e, m corresponding output; b, j enhanced green channel input; f, n corresponding output; c, k morphologically illumination corrected input; g, o corresponding output; d, l locally normalized illumination corrected input; h, p corresponding output
Fig. 6
Fig. 6

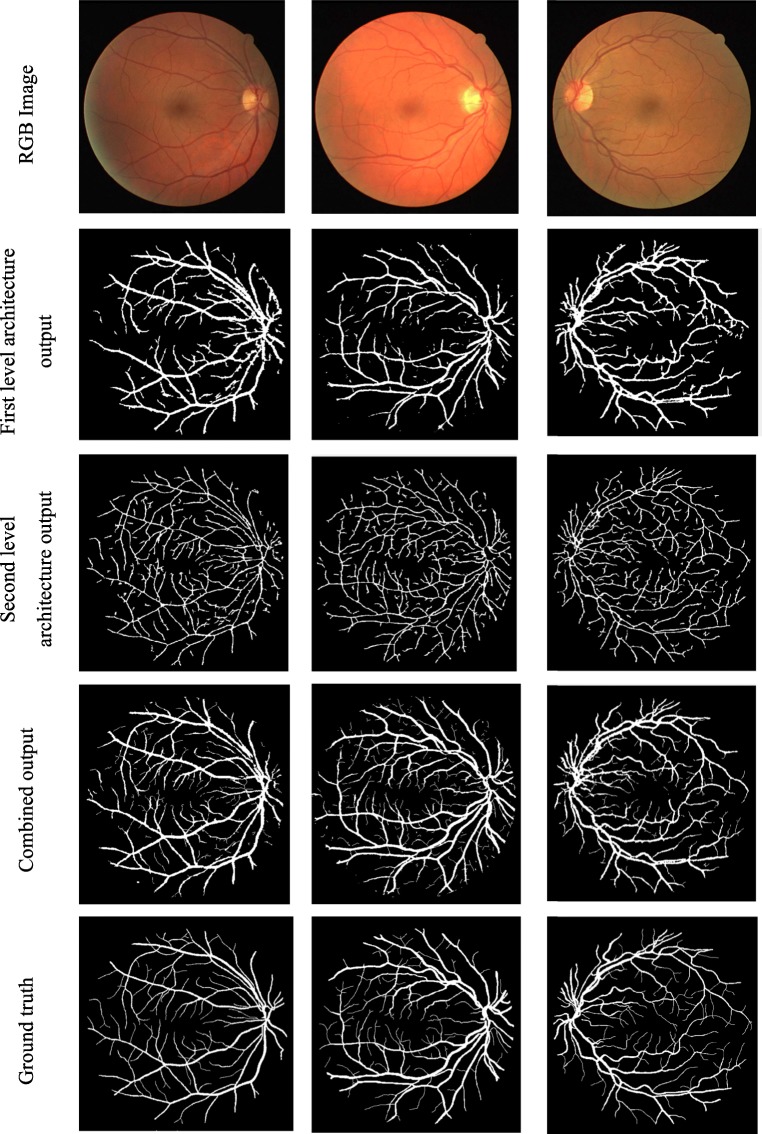

Output obtained by the individual level and overall architecture
Fig. 7
Fig. 7

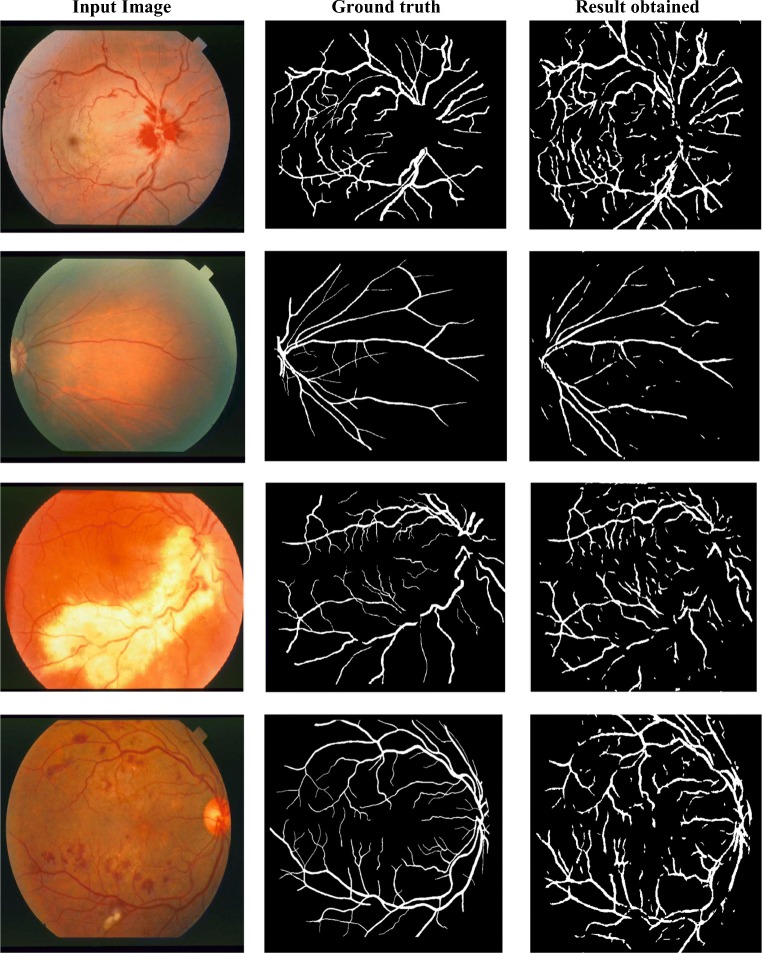

Cross-training result on abnormal images (STARE)
See this image and copyright information in PMC
