. 2019 Jul 31;11(8):1265.
doi: 10.3390/polym11081265.

Study on Graphene/CNC-Coated Bamboo Pulp Fabric Preparation of Fabrics with Thermal Conductivity

Feng Yang  1 , Cuiqin Lan  2 , Haiming Zhang  2 , Jian Guan  2 , Fan Zhang  2 , Benhua Fei  3 , Jilei Zhang  4
Affiliations

Study on Graphene/CNC-Coated Bamboo Pulp Fabric Preparation of Fabrics with Thermal Conductivity

Feng Yang et al. Polymers (Basel). .

Abstract

Functional fabrics have gained attention as an environmentally-friendly synthesis route. In the current study, novelty bamboo pulp fabrics with thermal conductivity properties were prepared by coating the fabric with graphene and cellulose nanocrystal (G/CNC) solutions. The influences of G and CNC concentrations on properties of fabrics were studied. The viscosities of the G/CNC solutions increased with an increase of G contents. G had an obvious thickening effect. Furthermore, compounded fabrics with different G and CNC contents (GCBPFs) were prepared and extensively characterized in terms of thermal and mechanical properties, and morphology. The ultimate thermal conductivity, bursting strength, and tensile strength of the GCBPF were 0.136 W/m·K, 1.514 MPa, and 25.8 MPa, with 4 wt.% CNC and 3 wt.% G contents, respectively. The results demonstrated that the as-fabricated GCBPFs with favorable thermal conductivity could be applied as a novel fast cooling textile for the clothing industry.

Keywords: cellulose nanocrystal; fabric; graphene; thermal conductivity.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflicts of interest.

Figures

Figure 1
Figure 1
TEM images of graphene materials.
Figure 2
Figure 2
SEM images of cellulose nanocrystalline (CNC).
Figure 3
Figure 3
Viscosity (a) and viscosity increase rate (b) of the G/CNC solution.
Figure 4
Figure 4
Degree of crystallinity of G/CNC solutions.
Figure 5
Figure 5
TEM image of G/CNC solution with 3 wt.% G and 4 wt.% CNC (a) and photo of graphene/ CNC suspension and water after 3 months at room temperature (b).
Figure 6
Figure 6
Degrees of crystallinity of CNC-coated bamboo pulp fabric (CBPF), and G/CNC-coated fabrics with the lowest (GCBPF-L) and highest conductivities (GCBPF-H).
Figure 7
Figure 7
Thermal conductivities of CBPFs and GCBPFs.
Figure 8
Figure 8
Elongation at break of CBPFs and GCBPFs.
Figure 9
Figure 9
Tensile strength of CBPFs and GCBPFs.
Figure 10
Figure 10

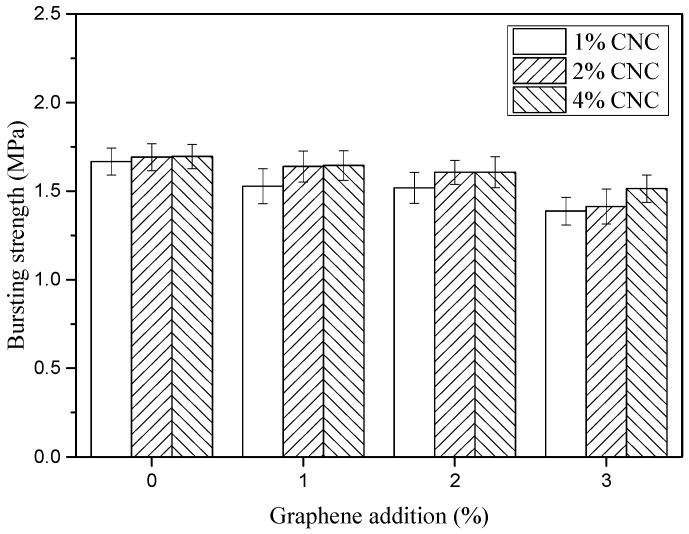

Bursting strength of CBPFs and GCBPFs.
Figure 11
Figure 11
SEM images of CBPFs and GCBPFs ((a,b) CNC-coated bamboo pulp fabric; (c,d) G/CNC-coated fabric with lowest thermal conductivity; (e,f) G/CNC-coated fabric with highest thermal conductivity).
See this image and copyright information in PMC
