. 2019 Jul 15:7:476.
doi: 10.3389/fchem.2019.00476. eCollection 2019.

Facile Fabrication of Au Nanoparticles/Tin Oxide/Reduced Graphene Oxide Ternary Nanocomposite and Its High-Performance SF6 Decomposition Components Sensing

Shoumiao Pi  1 , Xiaoxing Zhang  1   2 , Hao Cui  3 , Dachang Chen  1 , Guozhi Zhang  1 , Song Xiao  1 , Ju Tang  1
Affiliations

Facile Fabrication of Au Nanoparticles/Tin Oxide/Reduced Graphene Oxide Ternary Nanocomposite and Its High-Performance SF6 Decomposition Components Sensing

Shoumiao Pi et al. Front Chem. .

Abstract

A high-performance sensor for detecting SF6 decomposition components (H2S and SOF2) was fabricated via hydrothermal method using Au nanoparticles/tin oxide/reduced graphene oxide (AuNPs-SnO2-reduced graphene oxide [rGO]) hybrid nanomaterials. The sensor has gas-sensing properties that responded and recovered rapidly at a relatively low operating temperature. The structure and micromorphology of the prepared materials were characterized by X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), scanning electron microscopy (SEM), Raman spectroscopy, energy-dispersive spectroscopy (EDS), and Brunauer-Emmett-Teller (BET). The gas-sensing properties of AuNPs-SnO2-rGO hybrid materials were studied by exposure to target gases. Results showed that AuNPs-SnO2-rGO sensors had desirable response/recovery time. Compared with pure rGO (210/452 s, 396/748 s) and SnO2/rGO (308/448 s, 302/467 s), the response/recovery time ratios of AuNPs-SnO2-rGO sensors for 50 ppm H2S and 50 ppm SOF2 at 110°C were 26/35 s and 41/68 s, respectively. Furthermore, the two direction-resistance changes of the AuNPs-SnO2-rGO sensor when exposed to H2S and SOF2 gas made this sensor a suitable candidate for selective detection of SF6 decomposition components. The enhanced sensing performance can be attributed to the heterojunctions with the highly conductive graphene, SnO2 films and Au nanoparticles.

Keywords: SF6 decomposition components; gas sensor; hybrid nanomaterials; rGO; tin oxide.

PubMed Disclaimer

Figures

Figure 1
Figure 1
Schematic diagram of the preparation of AuNPs-SnO2-RGO hybrid.
Figure 2
Figure 2

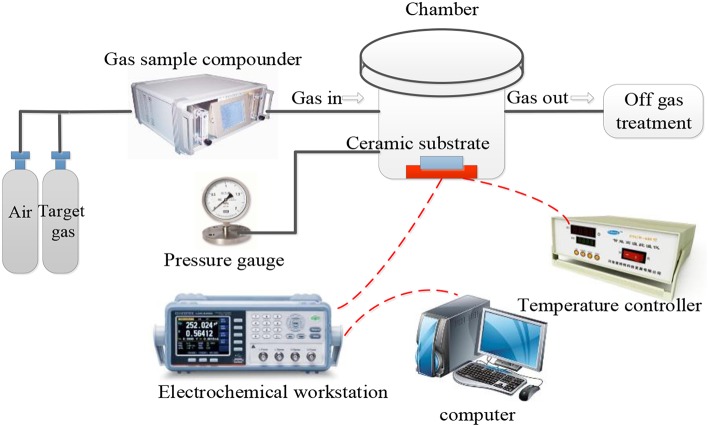

Measurement system for gas sensing experimental.
Figure 3
Figure 3
XRD spectra of the samples: (A) GO, (B) AuNPs-SnO2-rGO.
Figure 4
Figure 4
(A) Sn3d, (B) Au4f, (C) C1s XPS spectrum for the AuNPs-SnO2-rGO, and (D) C1s XPS spectrum for pristine GO.
Figure 5
Figure 5
Raman Shift of AuNPs-SnO2-rGO and GO.
Figure 6
Figure 6
(a) TEM, (b) HRTEM, (c) SEM, and (d) EDS of AuNPs-SnO2-rGO.
Figure 7
Figure 7
The response of the sensors to 50 ppm SOF2 at the temperature of 30–150°C.
Figure 8
Figure 8
Response recovery curves of the sensor to 50 ppm H2S based on (A) Au/SnO2/RGO, (C) RGO, and (D) SnO2/RGO and the response recovery curves of the sensor to 50 ppm SOF2 based on (B) Au/ SnO2/RGO, (E) RGO, and (F) SnO2/RGO.
Figure 9
Figure 9
Experimental responses and fitting models toward (a) H2S and (c) SOF2 based on Au-SnO2-RGO sensor at 110°C. The response-recovery curves of Au-SnO2-RGO sensor to 5–50 ppm of (b) H2S and (d) SOF2 at 110°C.
Figure 10
Figure 10
Repeatability curve of Au/SnO2/RGO sensor exposed to (a) 50 ppm H2S and (b) 50 ppm SOF2; (c) the long-term stability of Au/SnO2/RGO sensor exposed to 50 ppm H2S and SOF2. (d) selectivity of Au/SnO−2/RGO sensor toward 50 ppm H2S, SO2F2, SOF2, and SO2.
Figure 11
Figure 11
Response values of Au-SnO2-rGO to 50 ppm H2S and SOF2 at different relative humidity. The experiments were performed at 110°C.
Figure 12
Figure 12
Proposed mechanism for the adsorption behavior of H2S and SOF2 molecules on Au-SnO2-rGO.
See this image and copyright information in PMC

References

    1. Bansode S. R., Khare R. T., Jagtap K. K., More M. A., Koinkar P. (2017). One step hydrothermal synthesis of SnO2-RGO nanocomposite and its field emission studies. Mater. Sci. Semiconduct. Proc. 63, 90–96. 10.1016/j.mssp.2017.02.013 - DOI
    1. Basu S., Bhattacharyya P. (2012). Recent developments on graphene and graphene oxide based solid state gas sensors. Sens. Actuat. B Chem. 173, 1–21. 10.1016/j.snb.2012.07.092 - DOI
    1. Casanovas A., Casanovas J., Lagarde F., Belarbi A. (1992). Study of the decomposition of SF6 under DC negative polarity corona discharges (point to plane geometry): influence of the metal constituting the plane electrode. J. Appl. Phys. 72, 3344–3354. 10.1063/1.351456 - DOI
    1. Chen D., Tang J., Zhang X., Fang J., Li Y., Zhuo R. (2018). Detecting decompositions of sulfur hexafluoride using reduced graphene oxide decorated with Pt nanoparticles. J. Phys. D Appl. Phys. 51:185304 10.1088/1361-6463/aaba95 - DOI
    1. Chen D., Zhang X., Tang J., Cui Z., Cui H. (2019). Pristine and Cu decorated hexagonal InN monolayer, a promising candidate to detect and scavenge SF6 decompositions based on first-principle study. J. Hazard. Mater. 363, 346–357. 10.1016/j.jhazmat.2018.10.006 - DOI - PubMed
