. 2019 Sep 21;17(35):8125-8139.
doi: 10.1039/c9ob01645g. Epub 2019 Aug 28.

Z-isomerization of retinoids through combination of monochromatic photoisomerization and metal catalysis

Affiliations

Z-isomerization of retinoids through combination of monochromatic photoisomerization and metal catalysis

Shirin Kahremany et al. Org Biomol Chem. .

Abstract

Catalytic Z-isomerization of retinoids to their thermodynamically less stable Z-isomer remains a challenge. In this report, we present a photochemical approach for the catalytic Z-isomerization of retinoids using monochromatic wavelength UV irradiation treatment. We have developed a straightforward approach for the synthesis of Z-retinoids in high yield, overcoming common obstacles normally associated with their synthesis. Calculations based on density functional theory (DFT) have allowed us to correlate the experimentally observed Z-isomer distribution of retinoids with the energies of chemically important intermediates, which include ground- and excited-state potential energy surfaces. We also demonstrate the application of the current method by synthesizing gram-scale quantities of 9-cis-retinyl acetate 9Z-a. Operational simplicity and gram-scale ability make this chemistry a very practical solution to the problem of Z-isomer retinoid synthesis.

PubMed Disclaimer

Conflict of interest statement

Conflicts of interest

The authors declare no competing financial interests.

Figures

Figure 1.
Figure 1.
Screening of wavelength bands for the isomerization of E to Z retinyl acetate. A) The yield of 9Z-a using different wavelengths over 4 h. B) HPLC chromatograms of all-trans to 9-cis isomer after 0 (black), 20 min (pink), 1 (green), 2 (purple), and 4 (blue) h irradiation at 385 nm. Peak 13Z-a represents 13-cis, Peak 9Z-a represents 9-cis, Peak 7Z-a represents 7-cis, and Peak E-a represents all-trans.
Figure 2.
Figure 2.
A) Reaction progress monitoring the isomerization of all-trans-retinyl acetate to the 9-cis isomer. B) Dose dependency of E retinyl acetate. C) Energy level measurements.
Figure 3.
Figure 3.
Relationship between the distribution of cis-retinyl acetate isomers. A) Time course of the reaction from E to Z and backward. B) Absorbance spectra of all-trans E-a and 9-cis 9Z-a isomers.
Figure 4.
Figure 4.
Exploring a catalyst effect on the distribution of cis-retinyl acetate isomers.
Figure 5.
Figure 5.
Computed Jablonski diagrams of the photochemical isomerizations of (A) retinyl acetate E-a and (B) retinal E-d. Singlet and triplet states are represented with solid and dashed lines. Color code denotes the isomer of interest: all-trans (black), 7-cis (red), 9-cis (green), 11-cis (yellow), 13-cis (violet). Fast processes are represented with solid arrows (absorption, emission, relaxation), while slow processes are depicted with dotted lines (intersystem crossing, ISC) or dot-dash lines (phosphorescence, phosph). T1TS denotes transition states for rotations around C=C bonds in the first triplet state and MECP is the minimum energy crossing point that approximates the true conical intersection point between S0 and S1 surfaces. Computed absorption wavelength (λmax) maxima and the fluorescence rates (kfluor) are provided for all ground state isomers.
Figure 6.
Figure 6.
Experimental and calculated UV-VIS spectra for retinyl acetate E-a and in a complex with catalyst III. A) Experimental spectra of the retinyl acetate E-a (black), catalyst III (red) and the complex of the two (magenta). B) Computed spectra of the retinyl acetate E-a. On the right: one-electron orbital picture of two key transitions.
Figure 7.
Figure 7.
UV-Vis absorption spectra of opsin (black) and opsin with addition of all-trans-retinal E-a (blue dashed) after irradiation with 395 nm UV light for 5 min, 10 min and 15 min.
Scheme 1.
Scheme 1.
Photoisomerization of retinoids in two different pathways. Top arrow: isomerization with monochromatic UV light in the presence of catalyst produces mainly 13-cis among the cis isomers. Bottom arrow: isomerization with monochromatic UV light produces mainly the 9-cis among the cis isomers.
Scheme 2.
Scheme 2.
Theoretical reaction pathway for the Z-isomerization of all-trans-retinyl acetate E-a.
Scheme 3.
Scheme 3.

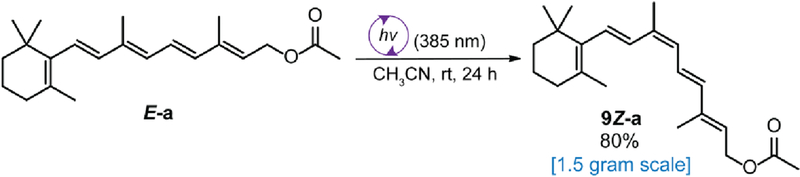

Gram-scale synthesis of 9-cis-retinyl acetate 9Z-a.

References

    1. Dupe V, Ghyselinck NB, Thomazy V, Nagy L, Davies PJ, Chambon P, Mark M, Dev Biol 1999, 208, 30–43. - PubMed
    1. Canete A, Cano E, Munoz-Chapuli R, Carmona R, Nutrients 2017, 9. - PMC - PubMed
    1. Palczewski K, J Biol Chem 2012, 287, 1612–1619. - PMC - PubMed
    1. von Lintig J, Kiser PD, Golczak M, Palczewski K, Trends Biochem Sci 2010, 35, 400–410. - PMC - PubMed
    1. Hofmann L, Palczewski K, Prog Retin Eye Res 2015, 49, 46–66. - PMC - PubMed
